KF-42E200A/42E201A/50E200A/50E201A
KF-42E200A/42E201A/50E200A/50E201A
26

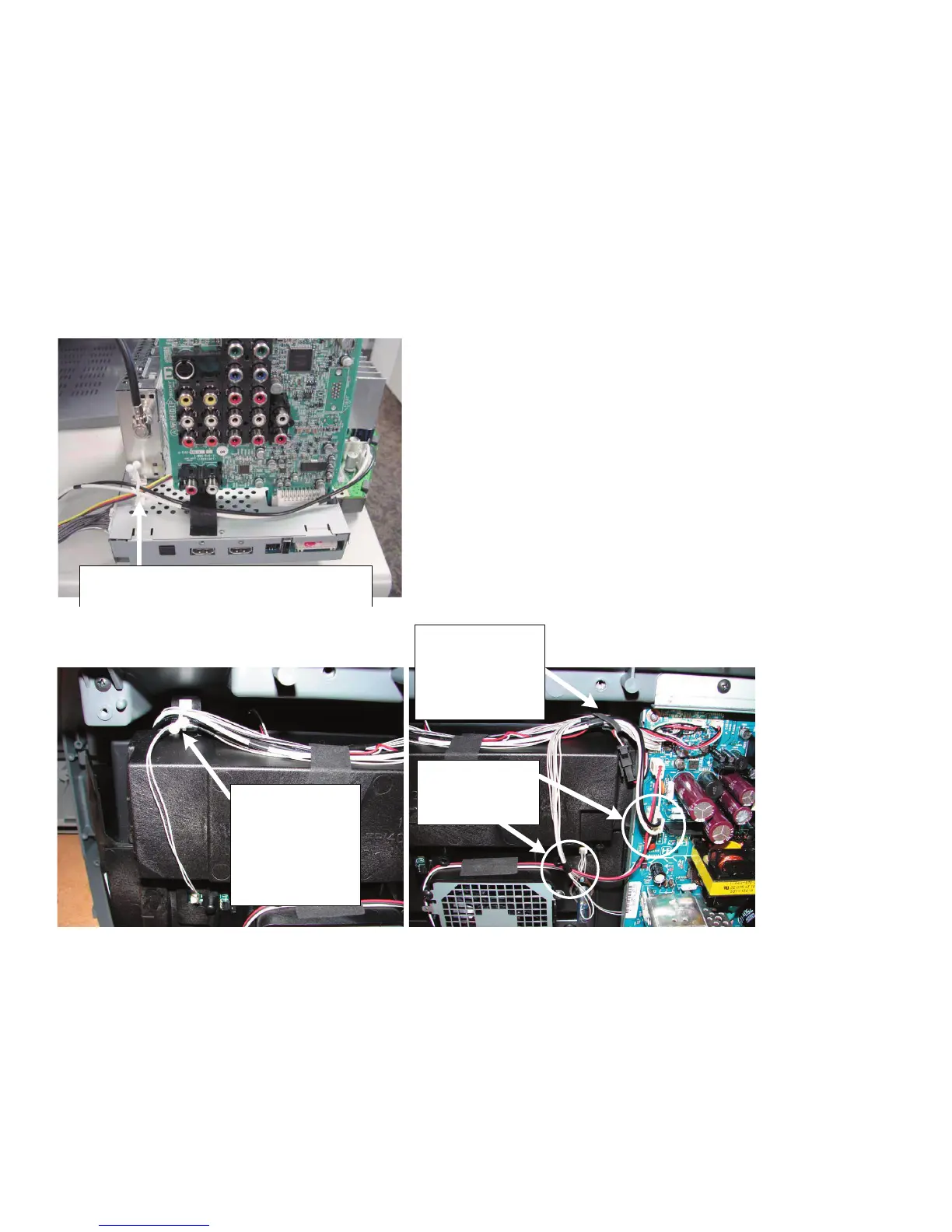

Dress [B] Block Fan and [K] Board Connector Assy to Purse
Lock on [B] Block as shown above.
CHASSIS WIRE DRESSING
Dress the following
Connector Assys to
Purse Lock on Duct Block
Assy :
1. CN150 [T1]
2. X1 (Ballast)
3. X2 (Ballast)
Note:
Duct Block Fan is not
installed to Purse Lock
Dress the following
Connector Assys to Wire
Holder on Bottom Block:
1. 1-910-024-29
2. X1 (Ballast)
3. X2 (Ballast)
4. Duct Block Assy Fan
5. Optical Block Fan
Route Lamp Fan
“inside” of 1-910-024-29
and Inside of X2 (Ballast
Power)
DUCT BLOCK ASSEMBLY WIRE DRESSING
To Next Page
