KF-42E200A/42E201A/50E200A/50E201A
KF-42E200A/42E201A/50E200A/50E201A
27

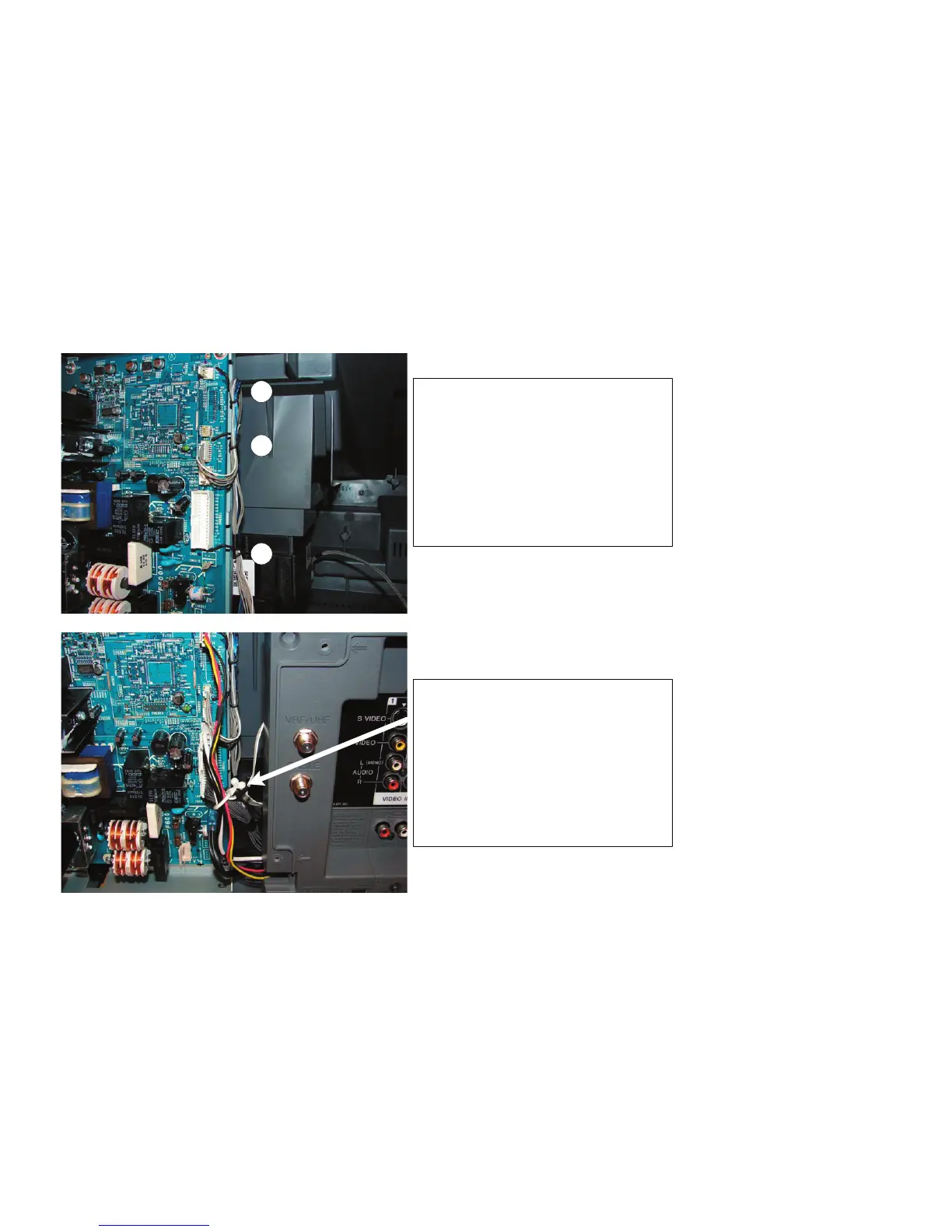

G-Board Wire Pin Holders Instructions. There are (3)
wire pin Holders on the [G] board. See below to see
which wires are dressed to each wire pin holder
1. LVDS and 8P CN6009[G]
2. LVDS, 8P CN6009, and 7P CN3004[B]
3. LVDS and 7P CN3004[B]
Ensure wires are dressed to the side of the G Board
as shown.
3
1
2
G BOARD WIRE DRESSING
Install Purse Lock
404928101 PURSE LOCK (DIA.11)
Purse lock should hold the following:
32P Conn Assy [G] to [B]
3P Conn Assy [G] to [K]
3P Conn Assy [G] to ANT SWT
3P Conn Assy [G] to B-Blk FAN
After installing Purse Lock ensure “open” end is
facing towards the front of the set.
