KF-42E200A/42E201A/50E200A/50E201A
KF-42E200A/42E201A/50E200A/50E201A
28

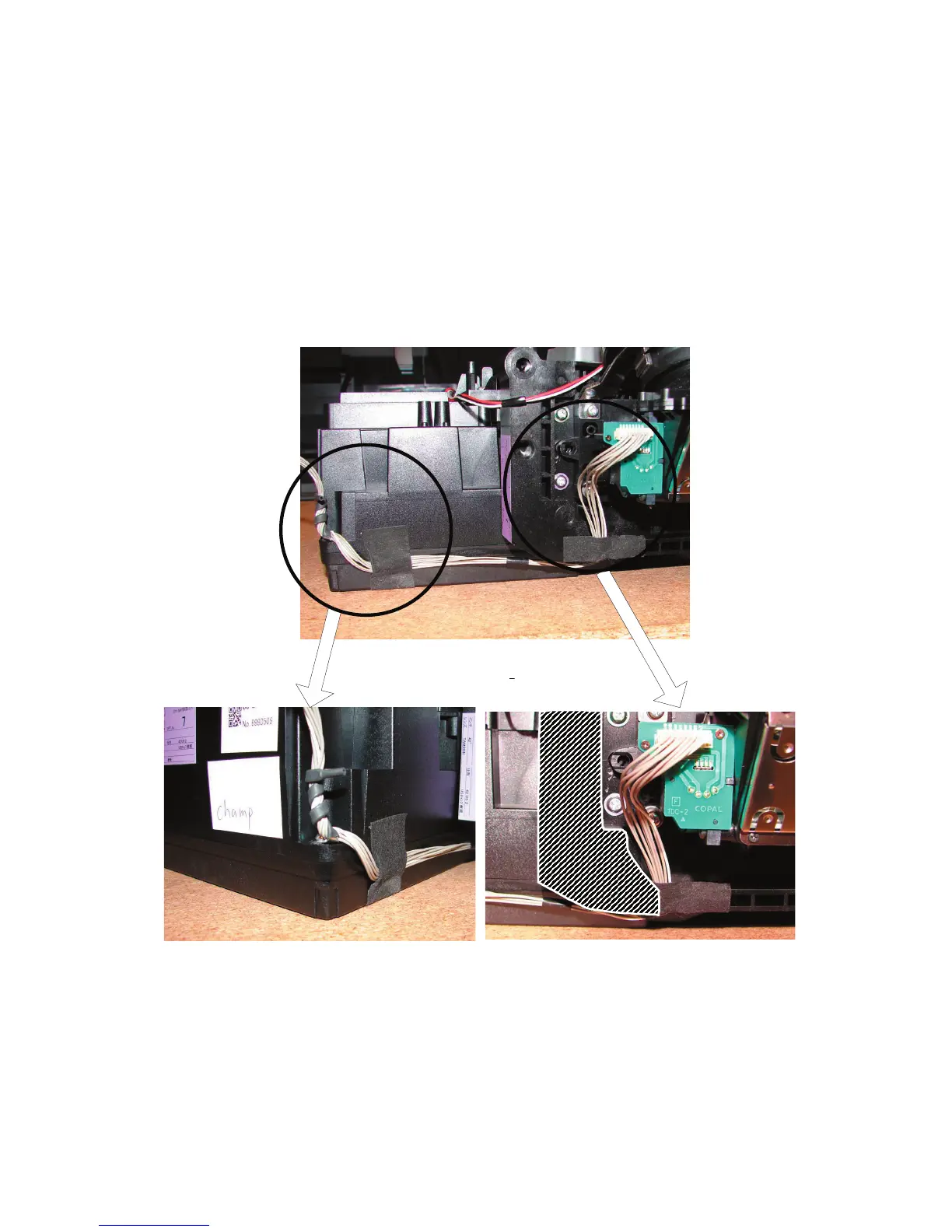

OPTICAL BLOCK ASSEMBLY WIRE DRESSING
ROUTE IRS CONNECTOR AS SHOWN
APPLY HIMELONE TAPE AS SHOWN ABOVE
AND DRESS IRIS CONNECTOR ASSY
TO WIRE HOLDER AS SHOWN BELOW
APPLY HIMELONE TAPE TO SECURE IRIS CON-
NECTOR AS SHOWN ABOVE.
APPLY TAPE SO THAT THE CONNECTOR ASSEM-
BLY WILL NOT BE IN SHADED AREA ABOVE.
IF CONNECTOR ASSEMBLY IS IN THE SHADED
ARER IT WILL GET PINCHED BETWEEN THE
OPTICAL BLOCK ASSEMBLY AND THE BOTTOM
BLOCK ASSEMBLY WHEN INSTALLED.
