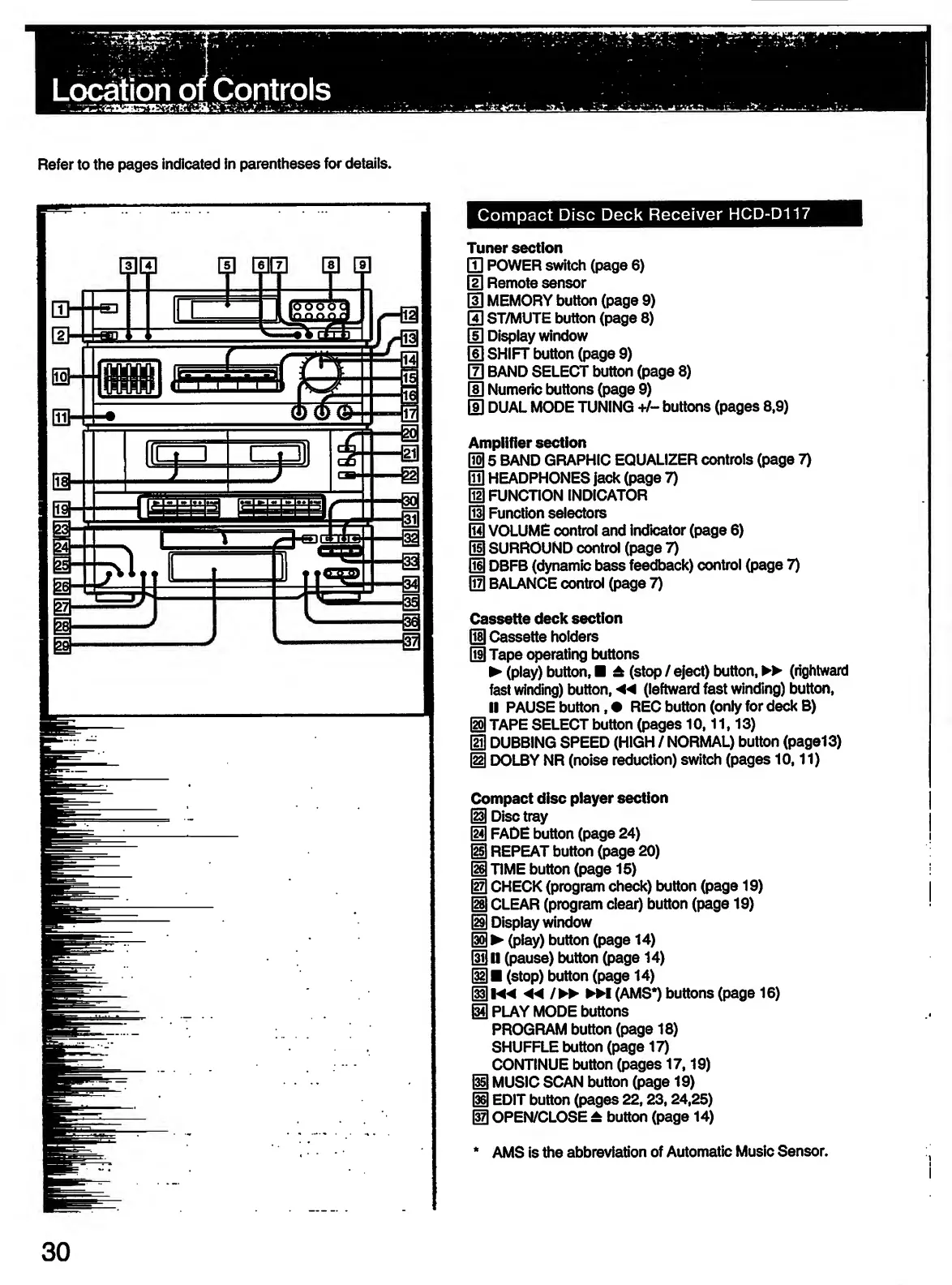

Sony LBT-D117CD - Location of Controls; Main Unit Controls; Sectional Controls; CD Player Controls

Refer to the pages indicated in parentheses for details.
Compact Disc Deck Receiver HCD-D117
Tuner section
Q] POWER switch (page 6)
(U Remote sensor
ID MEMORY button (page 9)
0 ST/MUTE button (page 8)
GO Display window
0 SHIFT button (page 9)
\B BAND SELECT button (page 8)
0 Numeric buttons (page 9)
0 DUAL MODE TUNING +/- buttons (pages 8,9)
Amplifier section
0 5 BAND GRAPHIC EQUALIZER controls (page 7)
0 HEADPHONES jack (page 7)
II FUNCTION INDICATOR
0 Function selectors
0 VOLUME control and indicator (page 6)
0 SURROUND control (page 7)
0 DBFB (dynamic bass feedback) control (page 7)
0 BALANCE control (page 7)
Cassette deck section
0 Cassette holders
0 Tape operating buttons
► (play) button, ■ ± (stop / eject) button, ►► (rightward
fast winding) button, ◄◄ (leftward fast winding) button,
II PAUSE button, • REC button (only for deck B)
0 TAPE SELECT button (pages 10,11,13)
0 DUBBING SPEED (HIGH / NORMAL) button (page13)
0 DOLBY NR (noise reduction) switch (pages 10,11)
Compact disc player section
0 Disc tray
0 FADE button (page 24)
0 REPEAT button (page 20)
0TIME button (page 15)
0 CHECK (program check) button (page 19)
0 CLEAR (program clear) button (page 19)
0 Display window
0 ► (play) button (page 14)
011 (pause) button (page 14)
0 ■ (stop) button (page 14)
0W4 ◄◄ / ► ► (AMS*) buttons (page 16)
0 PLAY MODE buttons
PROGRAM button (page 18)
SHUFFLE button (page 17)
CONTINUE button (pages 17,19)
0 MUSIC SCAN button (page 19)
0 EDIT button (pages 22,23,24,25)
0 OPEN/CLOSE ± button (page 14)
* AMS is the abbreviation of Automatic Music Sensor.
30
