Turn
all
the
power
off
before
making
any
connections.

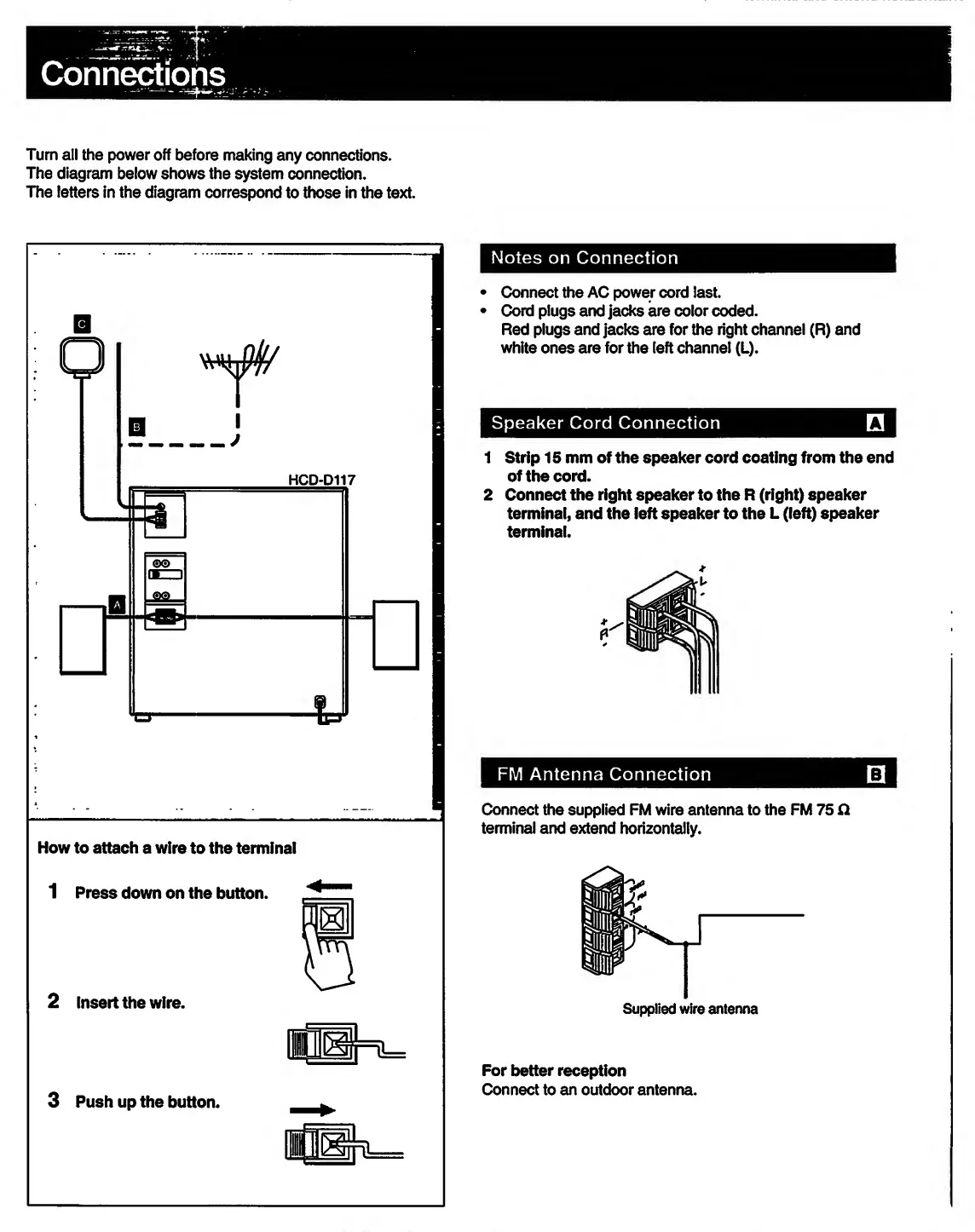

The
diagram
below
shows
the
system
connection.
The
letters
in
the
diagram
correspond
to
those
in
the
text.
How
to
attach
a
wire
to
the
terminal
1
Press
down
on
the
button.
2
Insert
the
wire.
3
Push
up
the
button.
1
Notes
on
Connection
•
Connect
the
AC
power
cord
last.
•
Cord
plugs
and
jacks
are
color
coded.
Red
plugs
and
jacks
are
for
the
right
channel
(R)
and
white
ones
are
for
the
left
channel
(L).
Speaker
Cord
Connection
1
Strip
15
mm
of
the
speaker
cord
coating
from
the
end
of
the
cord.
2
Connect
the
right
speaker
to
the
R
(right)
speaker
terminal,
and
the
left
speaker
to
the
L
(left)
speaker
terminal.
FM
Antenna
Connection
0
Connect
the
supplied
FM
wire
antenna
to
the
FM
75
fl
terminal
and
extend
horizontally.
Supplied
wire
antenna
For
better
reception
Connect
to
an
outdoor
antenna.
