1-18
74

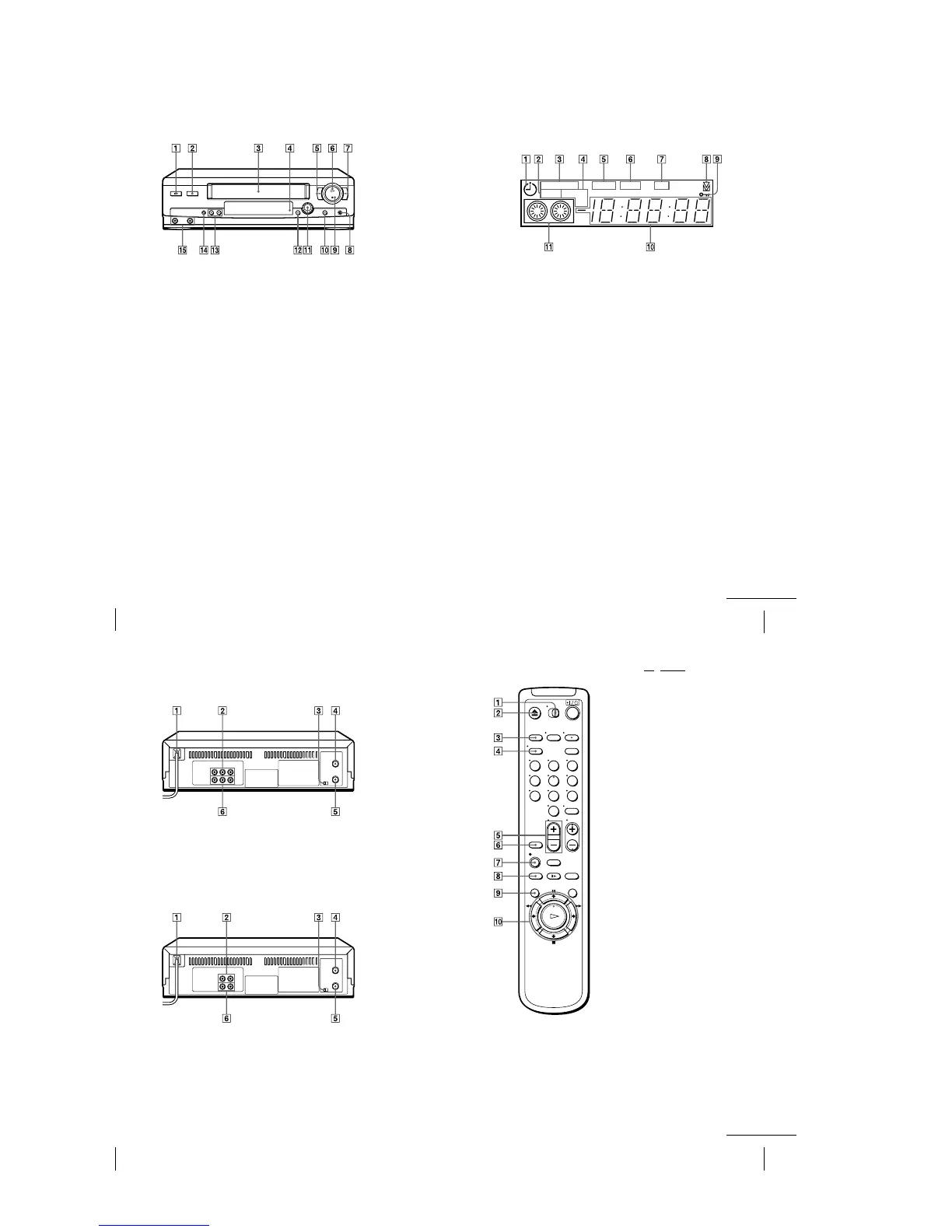

Index to parts and controls
SLV-LX50 and LX40
A ?/1 POWER switch (44)
B Z EJECT button (33)
C Tape compartment
D Remote sensor (5)
E m REW (rewind) button (33) (47)
F H PLAY button (33) (47)
G M FF (fast-forward) button (33) (47)
H z REC (record) button (36) (49) (66)
I x STOP button (33) (66)
J X PAUSE button (33) (66)
K DIAL TIMER (38) (54) (55) (56)
L SEARCH MODE button (54) (55) (56)
M CHANNEL/TRACKING +/– buttons
(36) (60)
N EASY SET UP button (11) (13) (16)
O LINE-2 IN VIDEO/AUDIO jacks (64)
75
Index to parts and controls
Display window
A Timer indicator (40) (44)
B SAP (Second Audio Program) indicator
(52) (SLV-LX70S and LX60S only)
C STEREO indicator (52) (SLV-LX70S
and LX60S only)
D Tape speed indicator (36)
E VIDEO indicator (37) (67)
F APC (Adaptive Picture Control)
indicator (61)
G RR (Reality Regenerator) indicator (60)
H Tracking indicator (60)
I Child lock indicator (46)
J Time counter/clock/line/channel
indicator (33) (36) (66)
K Tape/recording indicator (36)
STEREO
SAP LP SP
EP
RR VIDEO APC
continued
76
Index to parts and controls
Rear panel
SLV-LX70S and LX60S
A AC power cord (7)
B LINE-1 IN AUDIO R/L/VIDEO jacks
(65)
C RF (Radio Frequency) UNIT switch (67)
D VHF/UHF IN connector (10) (12) (15)
E VHF/UHF OUT connector (10) (12) (15)
F LINE OUT AUDIO R/L/VIDEO jacks
(8)
SLV-LX50 and LX40
A AC power cord (7)
B LINE-1 IN AUDIO/VIDEO jacks (65)
C RF (Radio Frequency) UNIT switch (67)
D VHF/UHF IN connector (10) (12) (15)
E VHF/UHF OUT connector (10) (12) (15)
F LINE OUT AUDIO/VIDEO jacks (9)
77
Index to parts and controls
Remote commander
A •TV
/ VIDEO switch (5)
B Z EJECT button (33)
C TRINITRON TV SYNCHRO PLAY
button (34)
D DISPLAY button (36) (58)
E VOL (volume) +/– buttons (6)
F INPUT SELECT button (37) (66)
G z REC (record) button (36) (49)
H SP (Standard Play)/EP (Extended Play)
button (36)
I MENU button (18) (62)
J X PAUSE/M button (18) (33)
x STOP/m button (18) (33)
m REW (rewind)/ < button (33) (47)
M FF (fast-forward)/ , button (33)
(47)
H PLAY/OK button (18) (33)
123
456
789
0
