2-6. INTERNAL VIEWS

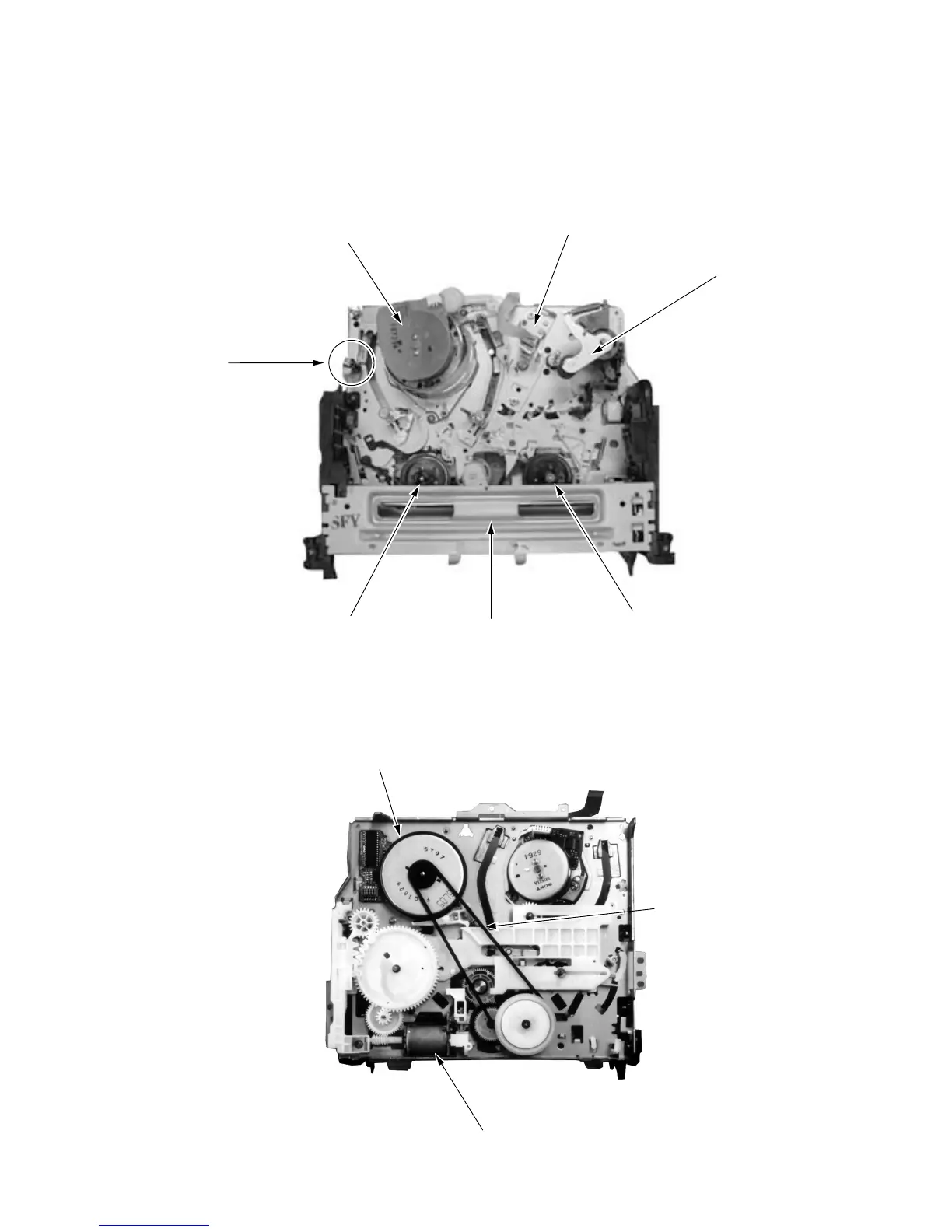

— Top View —
— Bottom View —
M901
Drum Assembly
DZH-0A0A/Z-RP 8-839-047-53
(LX60S/LX70S)
DZH-0A2A/Z-RP 8-839-049-53
(LX40/LX50)
ACE head block assembly
A-6759-620-A
Pinch press block assembly
A-6759-863-B
Reel (T) table
3-977-508-01
FL complete assembly
A-6759-619-B
Reel (S) table
3-977-507-01
FE head
1-500-477-11
M902
DC motor (capstan)
1-698-971-11
Rubber belt
3-977-510-01
M903
Cam motor assembly
X-3947-577-1
