Sony LX40 - Disassembly; Case, Front Panel Block Assembly; Board, Fj-32 Board

2-1
SECTION 2
DISASSEMBLY
NOTE: Follow the disassembly procedure in the numerical order given.

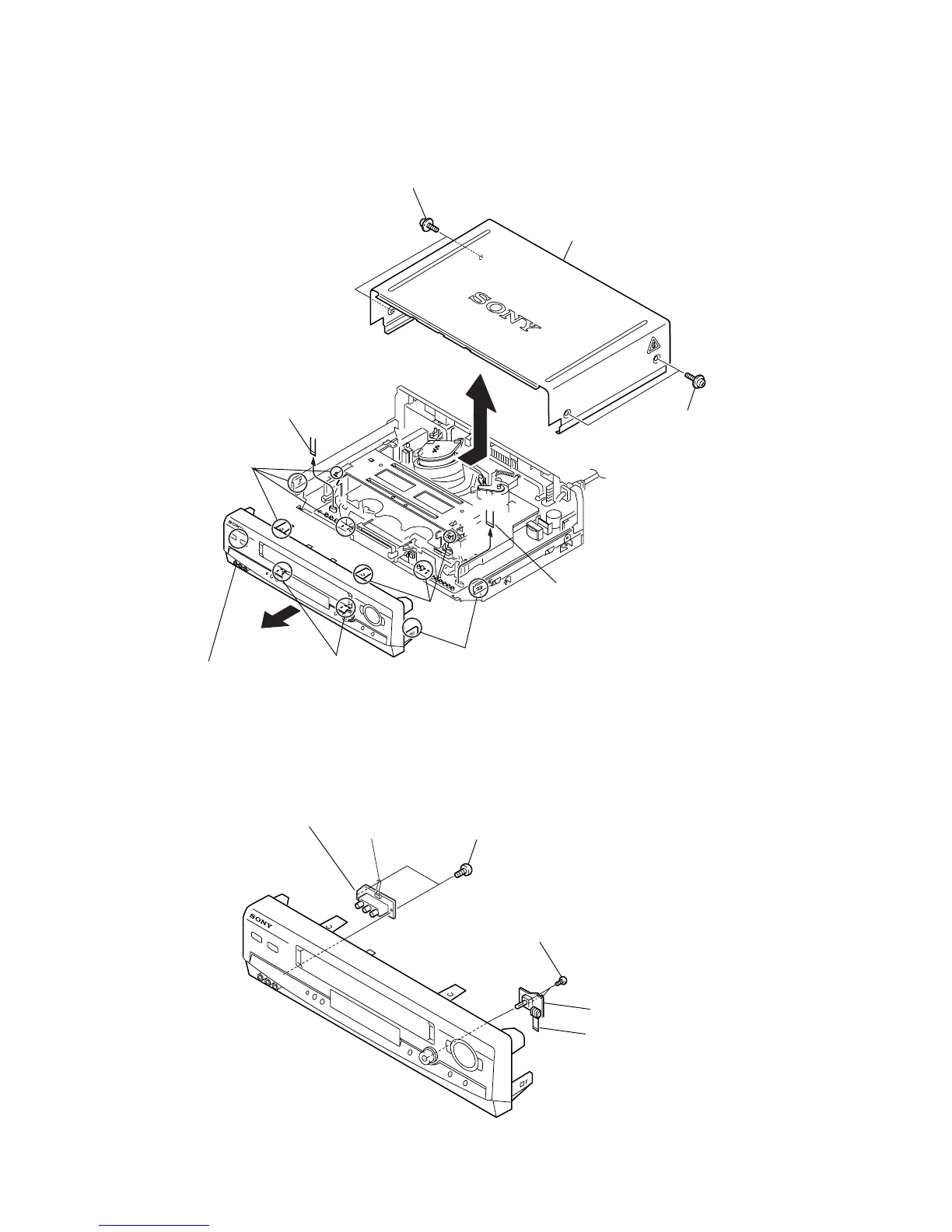

2-1. CASE, FRONT PANEL BLOCK ASSEMBLY
SLV-LX40/LX50/LX60S/LX70S
2-2. DI-80 BOARD, FJ-32 BOARD
1 Two tapping screws
3 Upper case
2 Two tapping screws
5 Flat Cable FDM-10
4 Flat Cable FFJ-4
6 Front panel
(Engaged by the six hooks)
Hooks
Hooks
Hooks
Hooks
4 Two screws
(B2.6 x 8)
1 Two screws
(B2.6 x 8)
3 Flat Cable FDM-10
5 FJ-32 board
6 Flat Cable FFJ-4
2 DI-80 board
