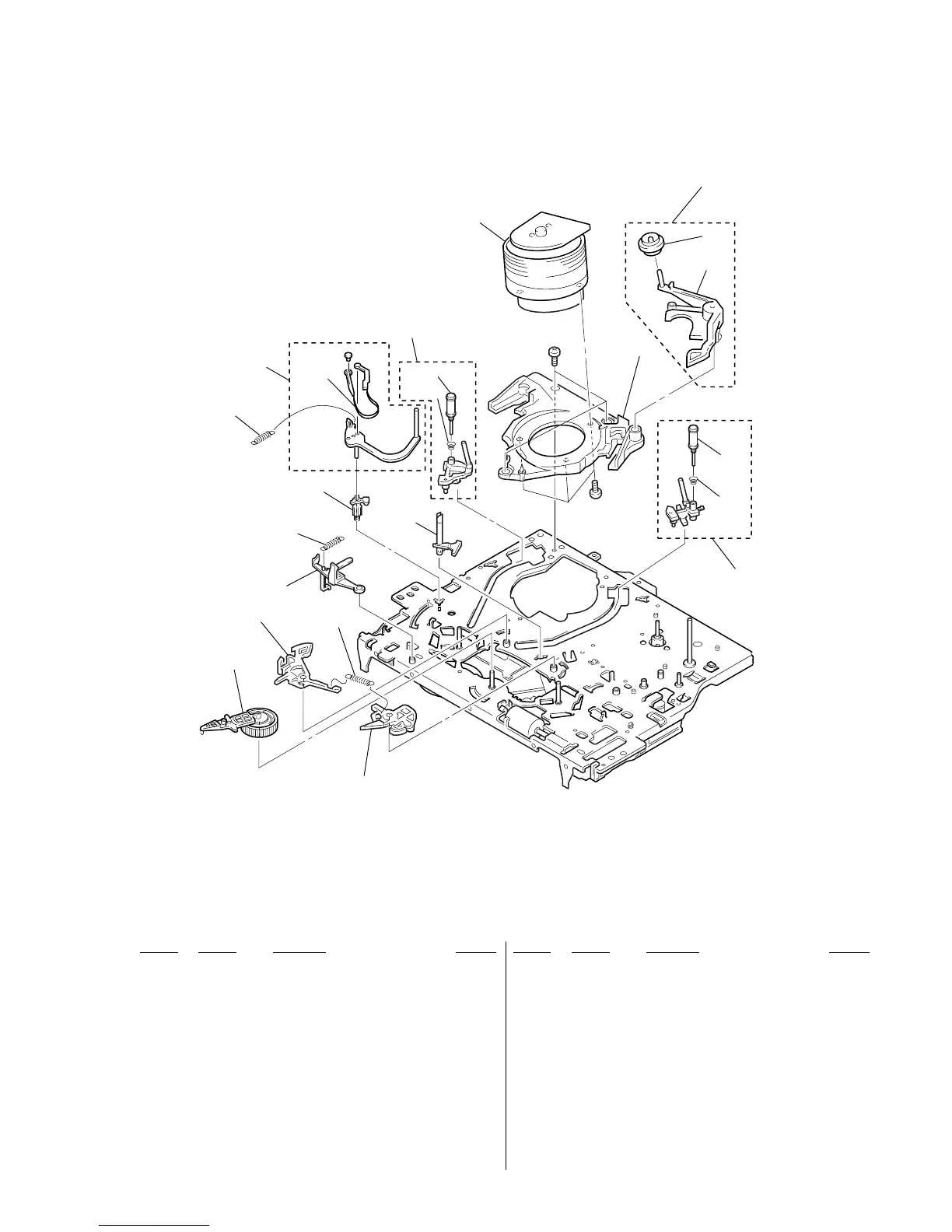

7-1-4. MECHANISM DECK SECTION-2
#2
#3
770
767
768
769
764
762
763
765
751
753
754
752
755
756
757
766
762
763
761
759
758
760
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
751 X-3947-581-4 BRAKE ASSY,MAIN(T)
752 3-977-462-01 SPRING,EXTENTION. (MAIN BRAKE)
753 X-3947-573-1 ARM ASSY, PENDULUM
754 X-3947-580-5 BRAKE ASSY, MAIN(S)
755 3-977-513-02 LEVER, REC PROOF
756 3-976-767-01 SPRING, TENS. (REC. PROOF)
757 3-977-487-01 BOSS, TG1 FULCRUM
758 X-3947-587-1 TG1 ASSY
759 X-3947-589-1 BAND ASSY, TG1
760 3-977-488-01 SPRING (POWER TENSION)
761 A-6750-324-A SHUTTLE (S) BLOCK ASSY
762 X-3944-378-1 ROLLER ASSY, GUIDE
763 3-965-178-01 SPRING
764 3-062-687-01 BASE, DRUM
765 A-6750-328-G SHUTTLE (T) BLOCK ASSY
766 3-977-501-01 PLATE, LUMINOUS
767 A-6746-074-G ROLLER BLOCK ASSY, HC
768 X-3947-255-1 ROLLER ASSY, HC
769 3-975-724-07 ARM, HC
770 8-839-047-53 DRUM ASSY, DZH-0A0A/Z-RP (LX60S/LX70S)
770 8-839-049-53 DRUM ASSY, DZH-0A2A/Z-RP (LX40/LX50)
#2 7-685-646-79 SCREW + BCTP 3 x 8 TYPE IT-3
#3 7-682-647-09 SCREW + P3 x 6
