Sony LX40 - Printed Wiring Boards and Schematic Diagrams

4-23

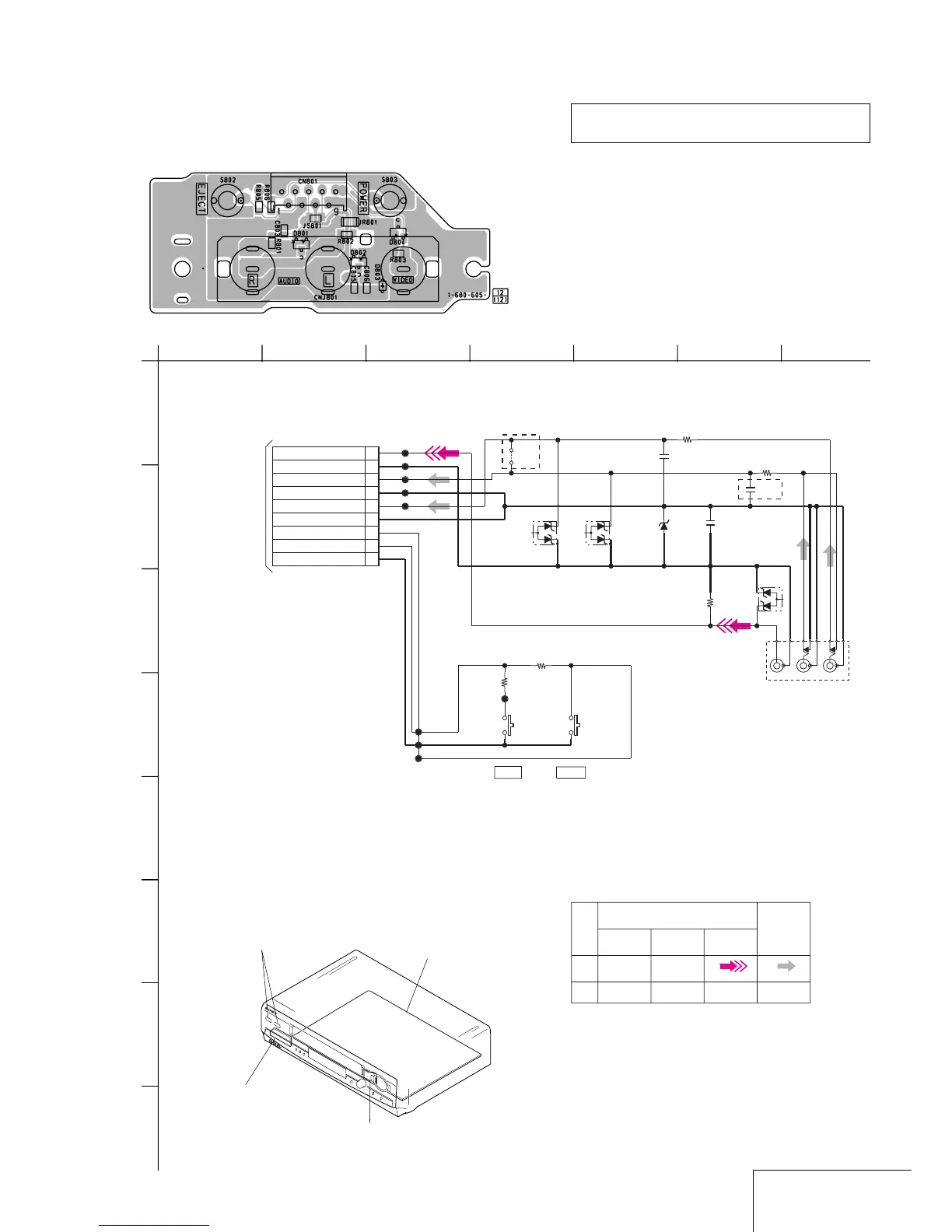

FJ-32 (LINE 2 IN) PRINTED WIRING BOARD AND SCHEMATIC DIAGRAM
— Ref. No. FJ-32 Board: 1,000 Series —
FJ-32 BOARD
A
12345 6 7
B
C
D
E
F
G
H
FJ-32 BOARD
LINE 2 IN
•REF.NO.: 1,000 SERIES-
There are few cases that the part printed on this
diagram isn’t mounted in this model.
CNJ801
2 1 5 3
4
8
6
7
JL801
0.001u
C805
XX
JS801
0
R802
S802
HZM6.8ZWA1TL
D801
JL806
HZM6.8ZWA1TL
D802
MA8051-TX
D803
JL807
0.001u
C803
1500
R805
HZM6.8ZWA1TL
D804
0
R801
0.001u
C806
JL802
75
R803
33
R806
S803
JL810
JL803
JL804
JL805
JL808
9P
CN801
1D GND
2POWER
3EJECT
4AU_GND
5L2(R)
6AU_GND
7L2(L)
8AN_GND
9L2_VIDEO
RVL
EJECT
POWER
MA-405 (6/7)
CN401
(SEE PAGE 4-18)
REC
PB
CHROMA Y Y/CHROMA
AUDIO
SIGNAL
VIDEO SIGNAL
SIGNAL PATH
LX40/LX50
LX60S/LX70S
VIDEO, AUDIO,
SERVO/SYSTEM CONTROL,
TUNER, POWER SUPPLY
FJ-32 (LINE 2 IN)
DI-80 (DIAL TIMER)
(POWER, EJECT SWITCH)
MA-405
()
LINE 2 IN
FJ-32
