Sony LX40 - Page 26

2-3

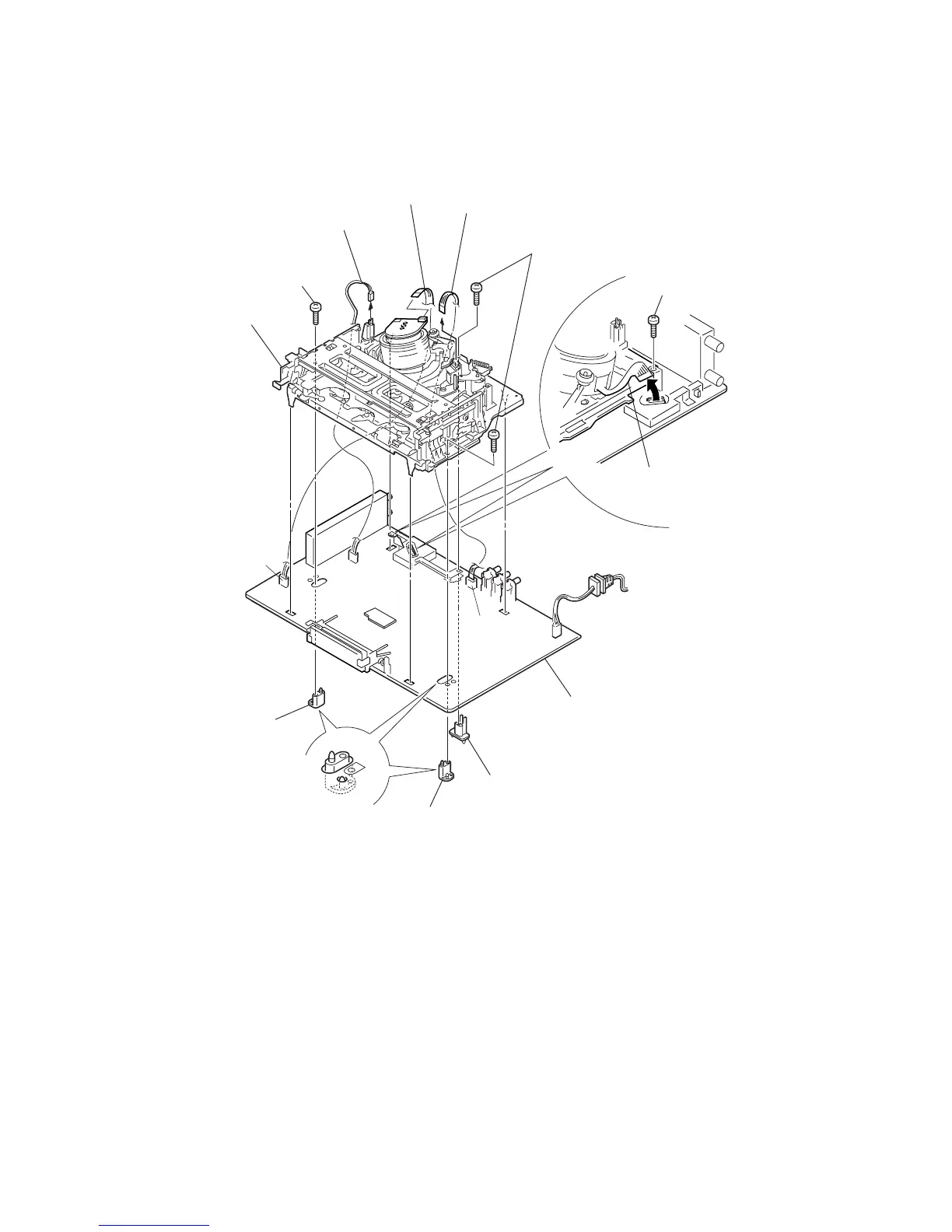

2-5. MECHANSIM DECK
qa MA-405 board
7 MD base (M)
8 MD base (R)
0 MD base (R)
6 Two screws
(BVTP 3 x 12)
9 Screw
(BVTP 3 x 12)
2 Screw
(Sumitite (B3), +BV)
qs Mechanism deck
1 Flexible cable
(CN260)
5 Harness FE-127
3 Flat cableFAC-9
4 Flat cable FMD-21
(CN101)
(CN351)
(CN350)
(CN600)
