Sony MDS-JB730 - Schematic Diagram - BD Board (1;2)

MDS-JB730
– 39 –
– 40 –

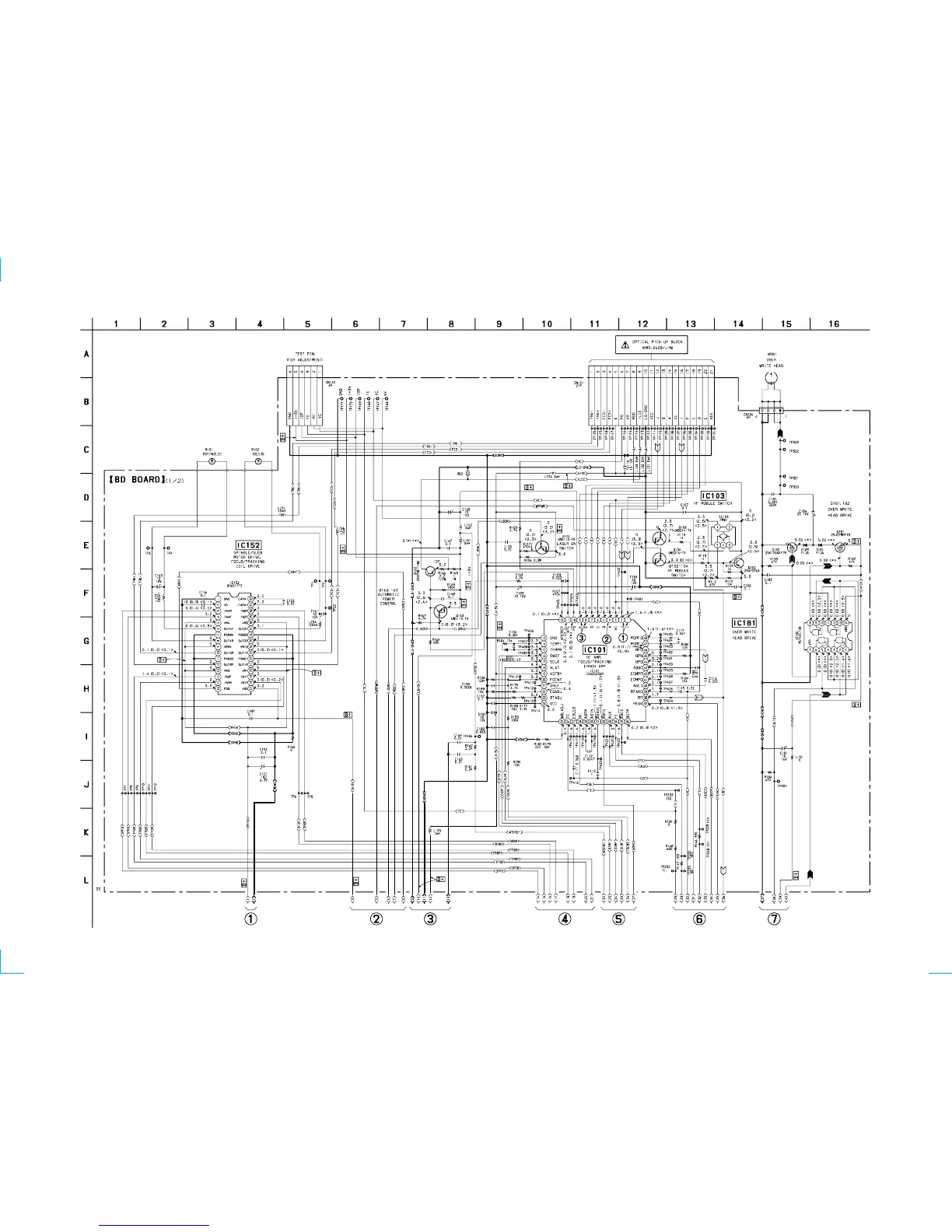

6-5. SCHEMATIC DIAGRAM – BD Board (1/2) – • See page 43 for Waveforms. • See page 55 for IC Block Diagrams.
(Page 41)
(Page 41) (Page 41) (Page 42) (Page 42) (Page 42) (Page 42)
