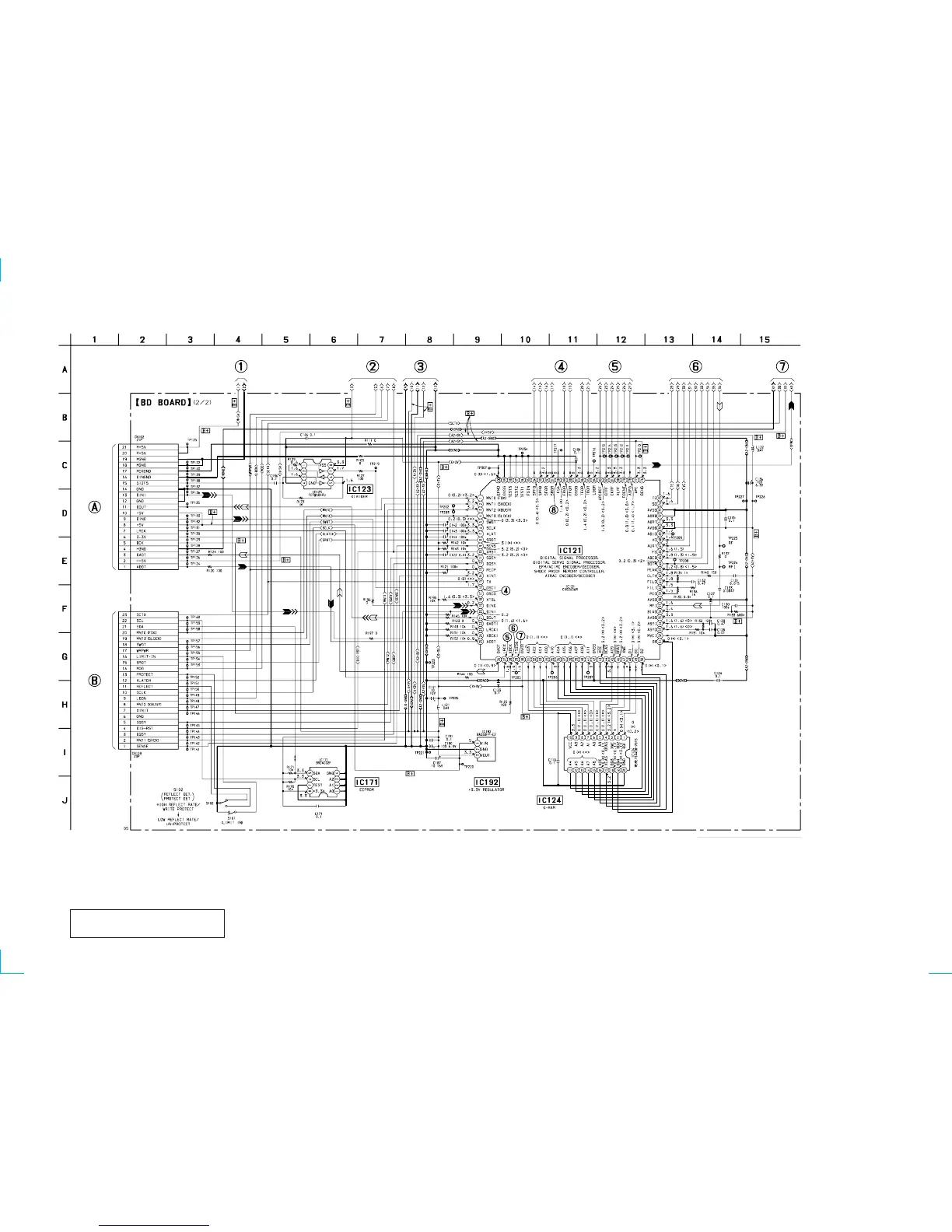

6-6. SCHEMATIC DIAGRAM – BD Board (2/2) – • See page 43 for Waveforms. • See page 55 for IC Block Diagrams.
– 41 –
– 42 –
• Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark : STOP
( ) : PLAY
< > : REC
∗
: Impossible to measure
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
(Page 47)
(Page 48)
(Page 39)
(Page 39) (Page 39) (Page 40) (Page 40) (Page 40) (Page 40)
