Sony MDS-JB730 - 7 Exploded Views

– 65 –

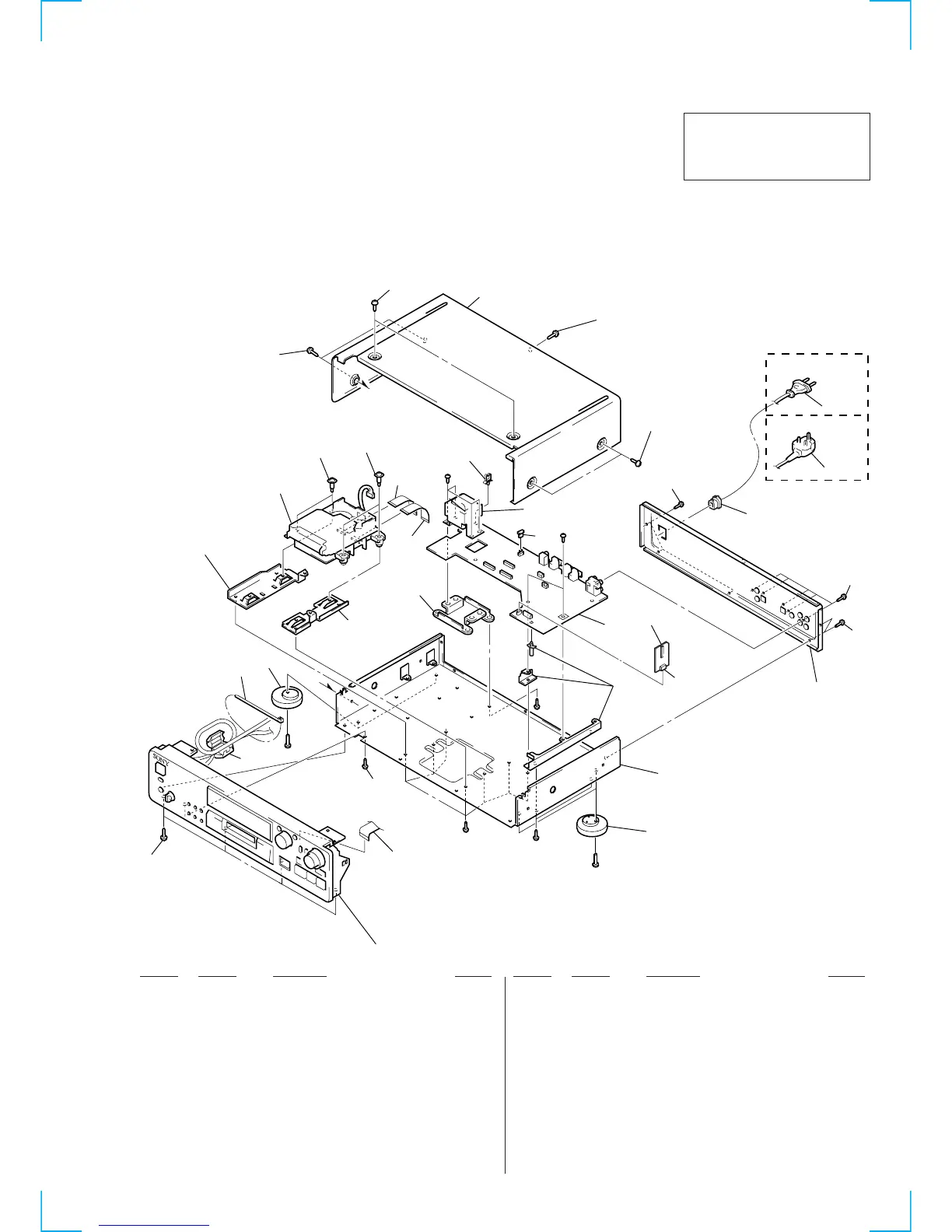

(1) CHASSIS SECTION
SECTION 7
EXPLODED VIEWS
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of the
electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 1-783-138-11 WIRE (FLAT TYPE) (19 CORE)
* 2 3-644-407-00 CLIP, AC WIRE E
3 3-704-515-21 SCREW (BV/RING)
4 1-783-139-11 WIRE (FLAT TYPE) (21 CORE)
5 4-210-291-01 SCREW (CASE 3 TP2) (AEP)
5 4-210-082-01 SCREW (CASE) (UK)
6 4-999-839-01 SCREW (+BVTTWH M3), STEP
7 1-783-140-11 WIRE (FLAT TYPE) (23 CORE)
8 1-569-972-21 SOCKET, SHORT 2P
9 4-966-267-11 BUSHING (FBS001), CORD
! 10 1-751-275-11 CORD, POWER (AEP)
! 10 1-696-586-21 CORD, POWER (UK)
11 4-218-445-01 PANEL, BACK
12 A-4724-660-A MAIN BOARD, COMPLETE
13 X-4949-523-1 FOOT ASSY (F50180S)
14 1-500-051-11 BEAD, FERRITE (WITH CASE)
15 1-675-018-11 SEIKEI 1 BOARD
16 4-997-138-02 CASE (4095269)
17 3-655-653-21 BAND (TAITON), BINDING
CN997 1-569-499-11 PIN, CONNECTOR 3P
! TR901 1-433-886-11 TRANSFORMER, POWER
10
5
5
5
6
4
5
2
12
15
1
13
13
14
17
3
6
7
16
3
3
3
10
9
8
11
3
not
supplied
not
supplied
not
supplied
MDM-5D
TR901
#2
#2
not supplied
not
supplied
CN997
Front panel section
AEP
UK
A
A
#1
#1
#1
#1
#1
