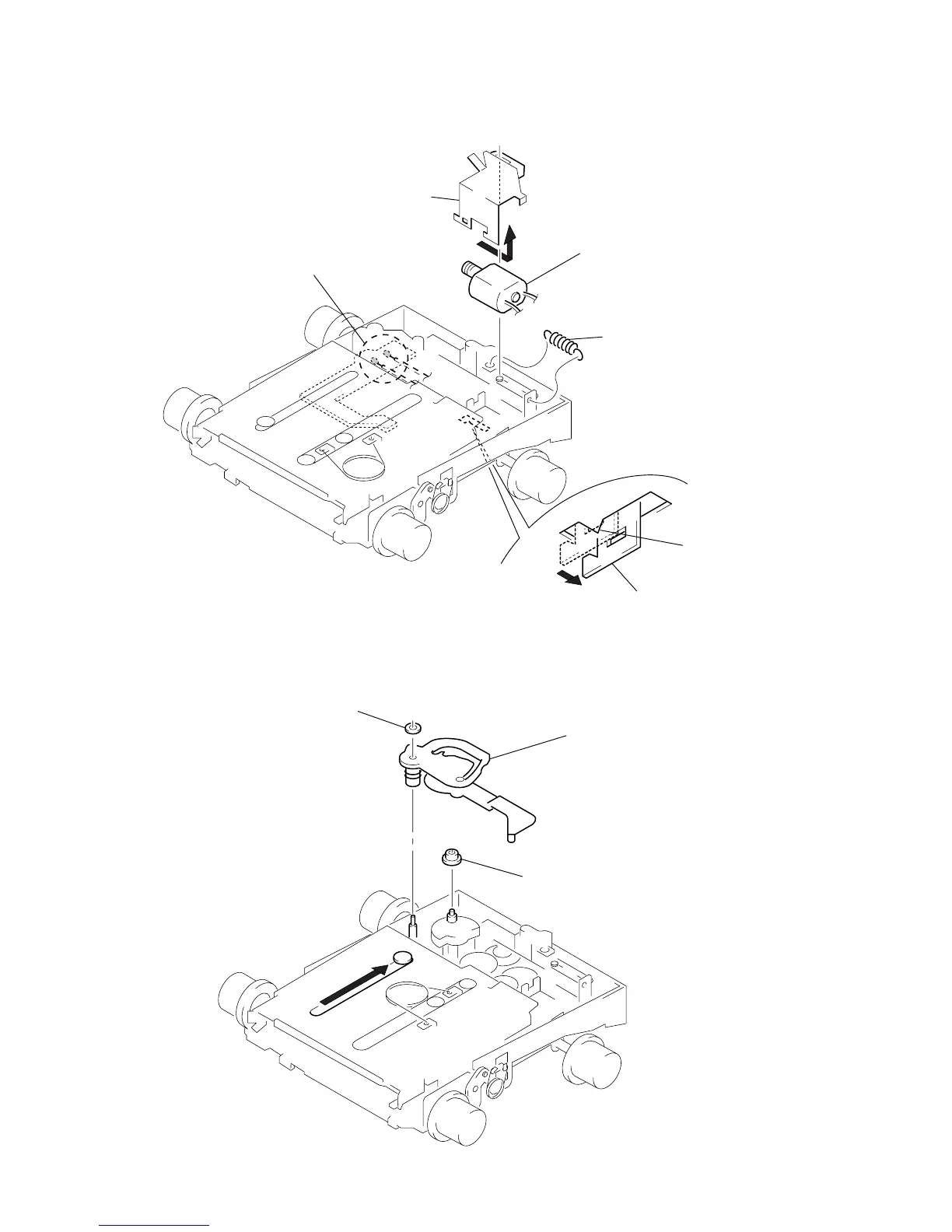

2-9. LO MOTOR ASSY (LOADING) (M903)
2-10. LEVER (LE23) ASSY
4 Remove the bracket (LO)
in the direction of the arrow
A .
bracket (LO)
1 Remove solders of motor (M903).
5 LO motor assy (loading)
(M903)
2 tension spring (rack)
3 claw
A
– bottom view –
2 stopper washer
3 lever (LE23) ass
y
4 roller (gear E)
1
