MDX-CA680/CA680X

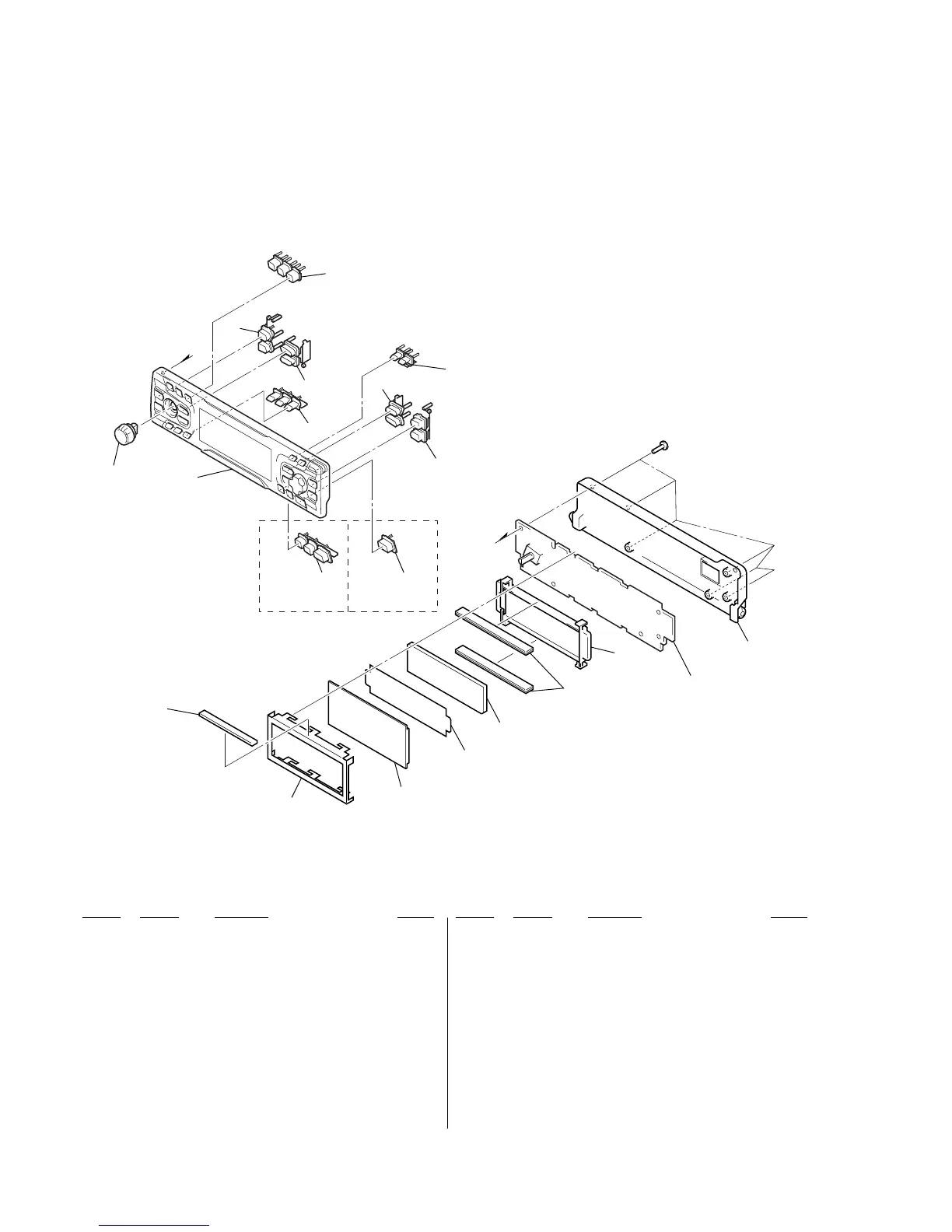

5-2. FRONT PANEL SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
51 X-3380-080-1 KNOB (VOL) ASSY (CA680X)
51 X-3380-081-1 KNOB (VOL) ASSY (CA680)
52 X-3380-127-1 PANEL (SV) ASSY, FRONT (CA680X: US)
52 X-3380-128-1 PANEL (SV) ASSY, FRONT (CA680)
52 X-3380-129-1 PANEL (SV) ASSY, FRONT (CA680X: AEP, UK)
53 3-223-752-21 BUTTON (DSO/EQ7) (MBP. D-BASS)
54 3-223-750-01 BUTTON (1-3) (1. 2. 3)
55 3-223-753-01 BUTTON (SOURCE/MODE)
56 3-223-751-01 BUTTON (4-6) (4. 5. 6)
57 3-223-791-01 BUTTON (MENU/SOUND)
58 3-223-789-01 BUTTON (DSPL/SCRL) (D. S)
59 3-223-790-01 BUTTON (LIST/ENTER)
60 3-223-792-01 BUTTON (AF/TA/OFF) (AEP, UK)
60 3-223-792-11 BUTTON (AF/TA/OFF) (OFF) (US)
* 61 3-223-799-01 PLATE (LCD), GROUND
* 62 3-223-800-01 ILLUMINATOR (LCD)
* 63 3-223-797-01 PLATE (LCD), LIGHT GUIDE
64 1-694-780-11 CONDUCTIVE BOARD, CONNECTION
* 65 3-223-798-01 HOLDER (LCD)
66 X-3380-079-1 PANEL ASSY, FRONT BACK
67 3-231-770-01 SPACER (WINDOW)
LCD901 1-804-295-11 DISPLAY PANEL, LIQUID CRYSTAL (CA680)
LCD901 1-804-295-21 DISPLAY PANEL, LIQUID CRYSTAL (CA680X)
