Sony MDX-CA680 - 5-4. MECHANISM DECK SECTION-2 (MG-164 MA-138)

52
MDX-CA680/CA680X

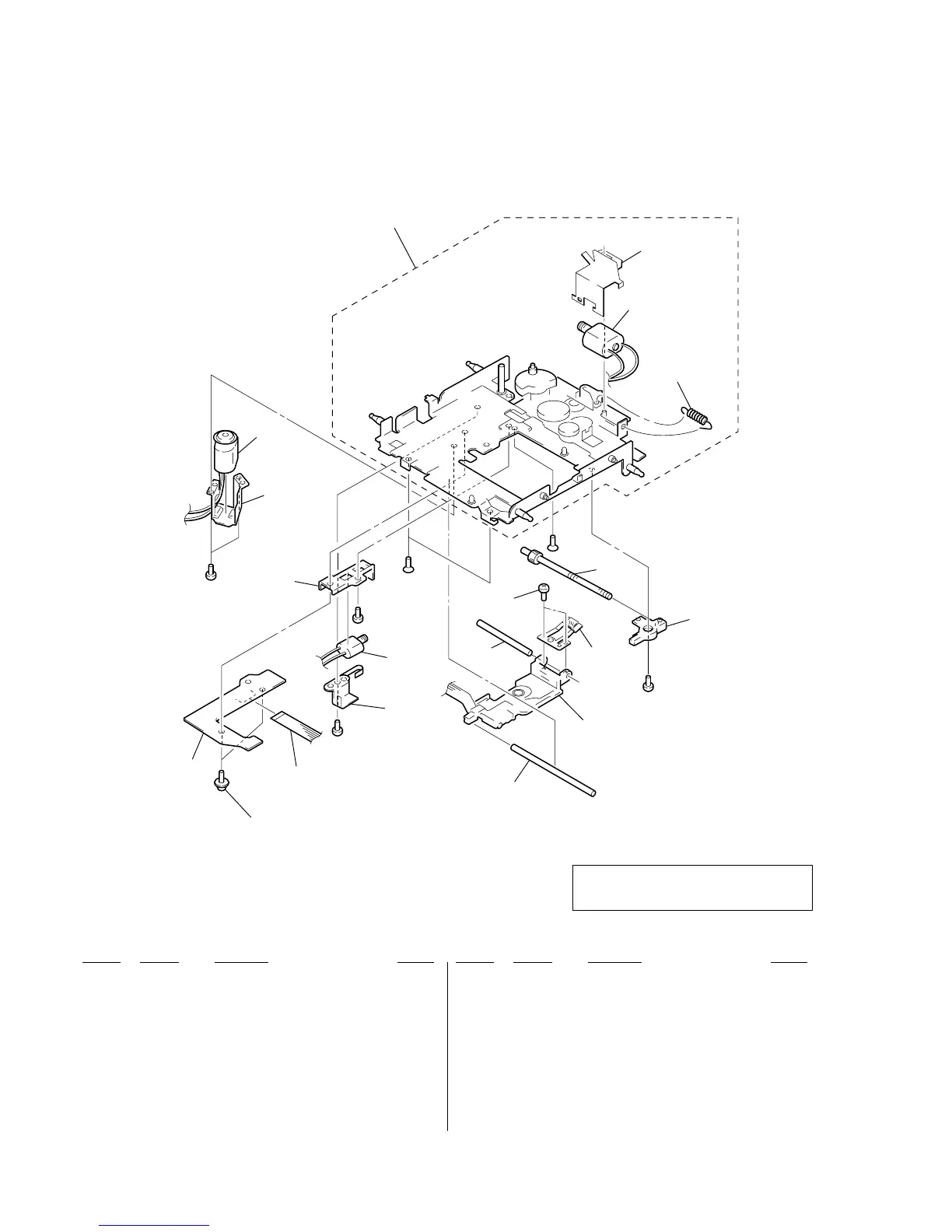

5-4. MECHANISM DECK SECTION-2
(MG-164MA-138)
M902
M901
M903
#13
#13
#14
#15
#15
#14
157
158
159
156
155
161
160
163
165
162
164
166
154
153
151
152
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
151 2-626-617-01 SCREW (2X8)
152 A-3326-727-A SENSOR BOARD, COMPLETE
153 1-757-311-11 CABLE, FLEXIBLE FLAT (11 CORE)
154 3-919-283-01 BRACKET (SL)
* 155 3-032-704-01 BASE (SL)
156 3-919-297-01 BRACKET (SP)
157 A-3315-218-A CHASSIS (OP) ASSY
158 3-032-660-01 BRACKET (LO)
159 3-032-669-01 SPRING (RACK), TENSION
* 160 3-032-705-01 BEARING (SL)
161 X-3373-213-1 SCREW ASSY, FEED
162 3-939-590-07 SCREW (IB LOCK)
163 3-010-091-01 SPRING (SL FEED)
164 3-919-293-01 SHAFT (OPT S), GUIDE
0 165 8-583-065-03 OPTICAL PICK-UP KMS-241C/J1RP
166 3-920-537-01 SHAFT (OPT L), GUIDE
M901 A-3301-407-A MOTOR ASSY, SP (SPINDLE)
M902 A-3291-190-A MOTOR ASSY, SL (SLED)
M903 X-3379-451-1 MOTOR ASSY, LO (LOADING)
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
