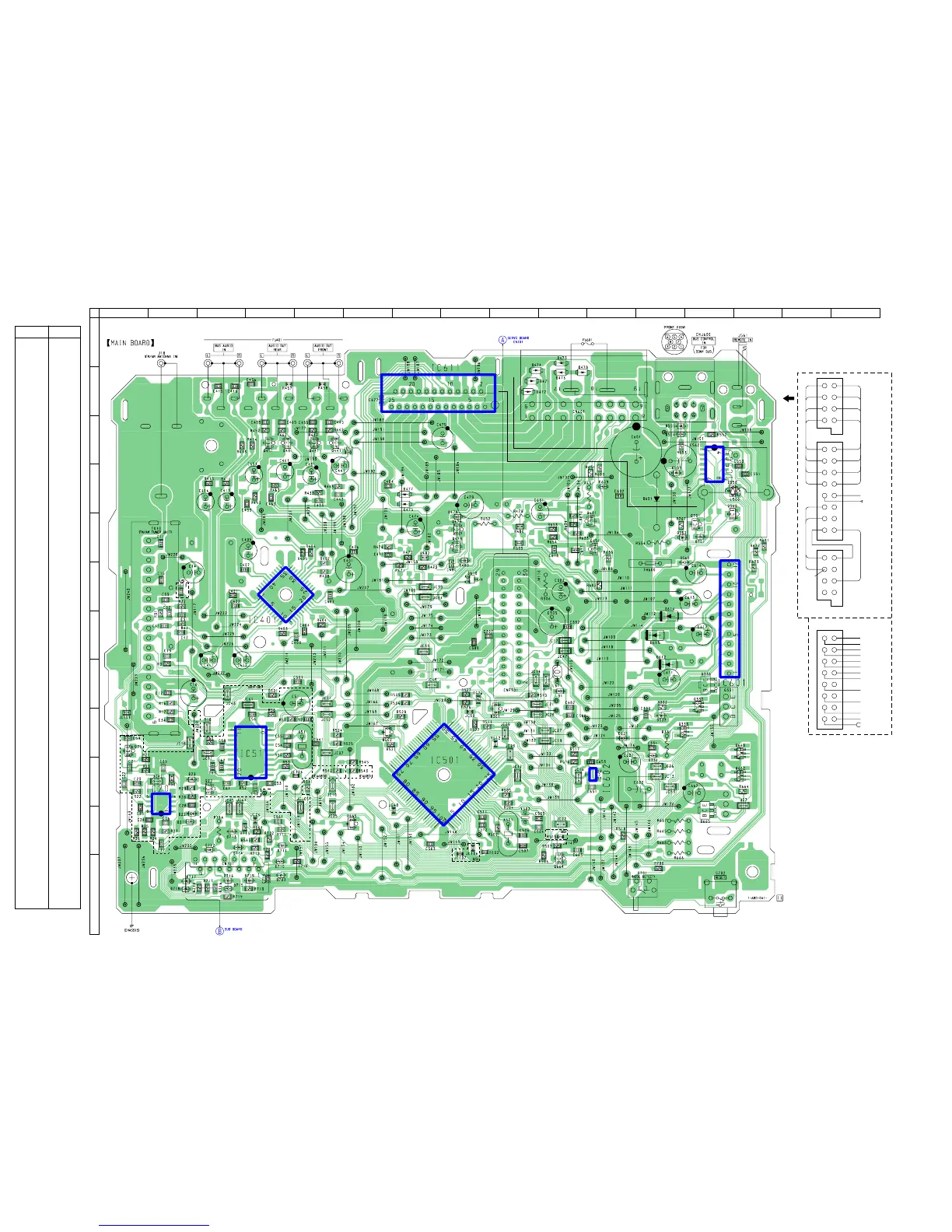

4-9. PRINTED WIRING BOARD – MAIN Board – • See page 28 for Circuit Boards Location.
• Semiconductor
Location
Ref. No. Location
D1 H-10
D21 K-2
D22 K-2
D23 J-2
D301 I-9
D331 I-12
D333 I-12
D471 B-9
D472 B-9
D473 A-10
D474 B-9
D475 D-7
D476 B-10
D477 D-7
D478 B-10
D479 E-8
D480 E-8
D502 I-6
D552 E-12
D553 D-12
D554 C-12
D555 C-12
D558 D-13
D560 F-12
D601 D-12
D609 D-11
D610 F-8
D612 H-12
D613 G-12
D614 G-12
D621 I-11
D665 K-6
D701 E-13
D703 L-4
D710 L-4
D711 K-4
D712 K-3
D713 K-3
D714 K-3
D715 L-3
D716 L-3
D717 L-2
D718 L-2
D719 L-4
IC20 J-2
IC51 I-4
IC401 F-4
IC501 J-8
IC505 D-13
IC601 G-13
IC602 J-11
IC611 B-8
Q21 I-1
Q22 J-3
Q331 H-13
Q333 I-12
Q335 H-13
Q336 H-13
Q431 C-5
Q441 C-5
Q451 C-4
Q461 C-4
Q478 E-8
Q479 E-8
Q560 E-13
Q631 E-11
Q651 E-11
Q662 J-14
Q663 I-14
Q664 L-10
Q665 K-13
Q701 E-13
1 9
WHT/BLK
WHT
GRN/BLK
GRN
VIO/BLK
VIO
GRY/BLK
GRY
BLU/WHT
BLU
RED
YEL
BLK
FRONT LCH (–)
FRONT LCH (+)
REAR LCH (–)
REAR LCH (+)
REAR RCH (–)
REAR RCH (+)
FRONT RCH (–)
FRONT RCH (+)
AMP REM
ANT REM
ACC
BATT
GND
2 10
3 11
4 12
5 13
6 14
7 15
8 16
1 9
WHT/BLK
GRN/BLK
VIO/BLK
GRY/BLK
LIGHT BLU
BLU/WHT
YEL
WHT
GRN
VIO
GRY
BLU
RED
BLK
2 10
3 11
4 12
5 13
6 14
7 15
8 16
RL+ RL–
GRN/BLK
WHT/BLK
GRY/BLK
VIO/BLK
GRN
WHT
GRY
VIO
FL+ FL–
FR+ FR–
RR+ RR–
ACC GND
BLK
YEL
RED
BLU
ANT REM
NC
NC BATT
NC NC
TO
CN601
(AEP, UK)
(US)
ATT
AMP REM
BLK
YEL
BLK
YEL
B
A
C
D
E
F
G
H
I
J
K
L
1
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
(Page 36)
(Page 29)
