Sony MDX-CA680 - SECTION 5 EXPLODED VIEWS; 5-1. GENERAL SECTION

49
MDX-CA680/CA680X

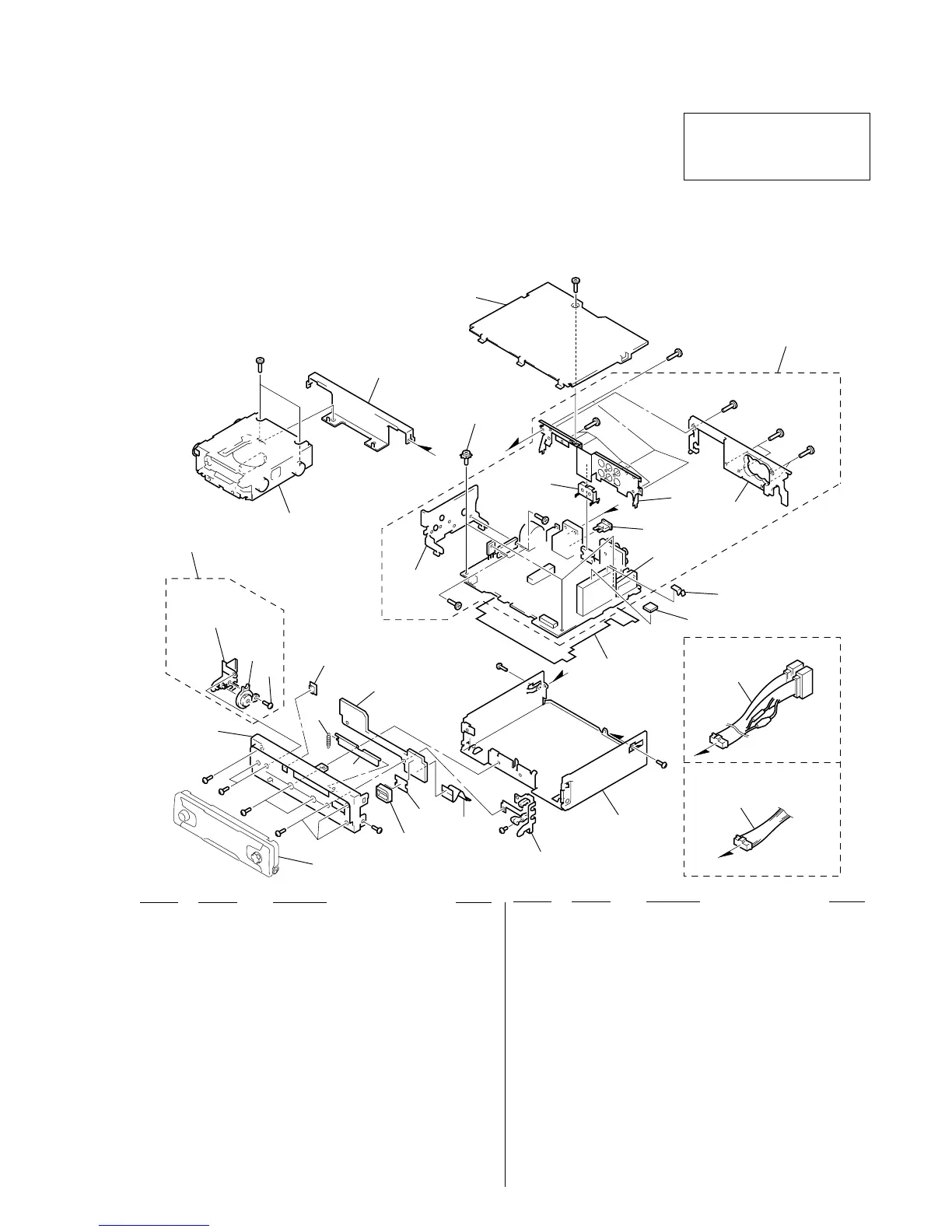

5-1. GENERAL SECTION
SECTION 5
EXPLODED VIEWS
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of the
electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Front panel section
1
4
#1
#3
#4
#4
#5
#5
#4
MG-164MA-138
#7
#7
#4
#6
#4
#8
TU10
FU601
(AEP, UK)
A
C
C
B
C
B
A
CNP810
#2
#2
#1
#1
not supplied
5
6
7
23
22
8
3
2
21
20
24
(US)
24
19
18
17
13
14
15
16
9
11
10
12
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 X-3378-458-1 PANEL ASSY, SUB
2 X-3376-699-1 GEAR ASSY
3 3-030-909-01 DAMPER, OIL
4 3-713-786-51 SCREW +P 2X3
5 3-040-990-01 BUTTON (EJECT) (Z)
6 3-034-086-01 SPRING (DOOR)
7 3-033-750-01 DOOR (MD)
* 8 1-680-042-11 SUB BOARD
9 3-376-464-11 SCREW (+PTT 2.6X6), GROUND POINT
* 10 3-041-017-01 BRACKET (MD)
* 11 3-223-782-01 COVER
* 12 A-3283-058-A MAIN BOARD, COMPLETE (CA680X: US)
* 12 A-3283-061-A MAIN BOARD, COMPLETE (CA680)
* 12 A-3283-065-A MAIN BOARD, COMPLETE (CA680X: AEP, UK)
* 13 3-223-780-11 HEAT SINK
* 14 3-223-783-01 CHASSIS (BACK)
* 15 3-040-998-01 BRACKET (IC)
* 16 3-041-011-01 HEAT SINK (REG)
* 17 3-045-878-01 PLATE (TU), GROUND
* 18 3-045-877-01 CUSHION (TU)
* 19 3-224-755-01 SHEET, INSULATING
* 20 3-223-781-11 CHASSIS
21 X-3377-621-1 LOCK ASSY
22 1-792-195-11 CABLE, FLEXIBLE FLAT (14 CORE)
* 23 3-039-443-11 SHEET (CONNECTOR)
24 1-776-207-82 CORD (WITH CONNECTOR) (POWER) (US)
24 1-776-527-61 CORD (WITH CONNECTOR) (ISO) (POWER)
(AEP, UK)
CNP810 1-794-064-11 SOCKET, CONNECTOR 14P
FU601 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) (10A)
TU10 A-3282-061-A TUNER UNIT (TUX-020)
