Sony MDX-CA680 - Optical Pick-Up (KMS-241 C); SL Motor Assy (Sled) (M902), SP Motor Assy (Spindle) (M901)

MDX-CA680/CA680X
16

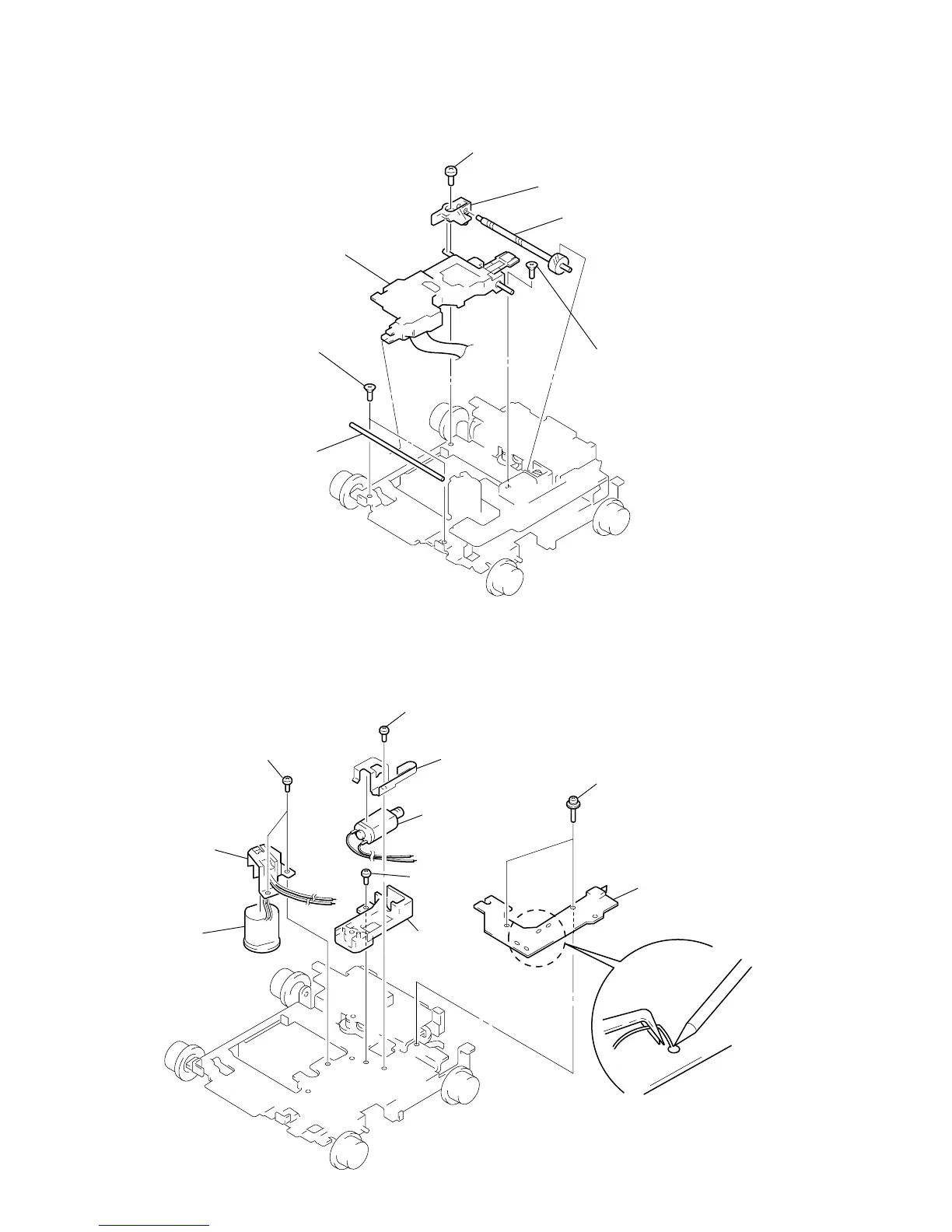

2-13. OPTICAL PICK-UP (KMS-241C)
6 bearing (SL)
5 feed screw assy
3 screw
(K2
× 3)
2 guide shaft (OPT L)
1 two screws
(K2
× 3)
7 optical pick-up
(KMS-241C)
4 screw
(B2
× 3)
2-14. SL MOTOR ASSY (SLED) (M902), SP MOTOR ASSY (SPINDLE) (M901)
4 screw
(P1.7
× 1.8)
5 bracket (SL)
9 two screws
(P1.7
× 1.8)
0 bracket (SP)
qa SP motor assy
(spindle) (M901)
7 screw
(B2
× 3)
2 two screws
(2
× 8)
3 sensor board
1 Remove solders of motors
(M901, M902).
8 base (SL)
6 SL motor assy
(sled) (M902)
