MDX-CA680/CA680X
15

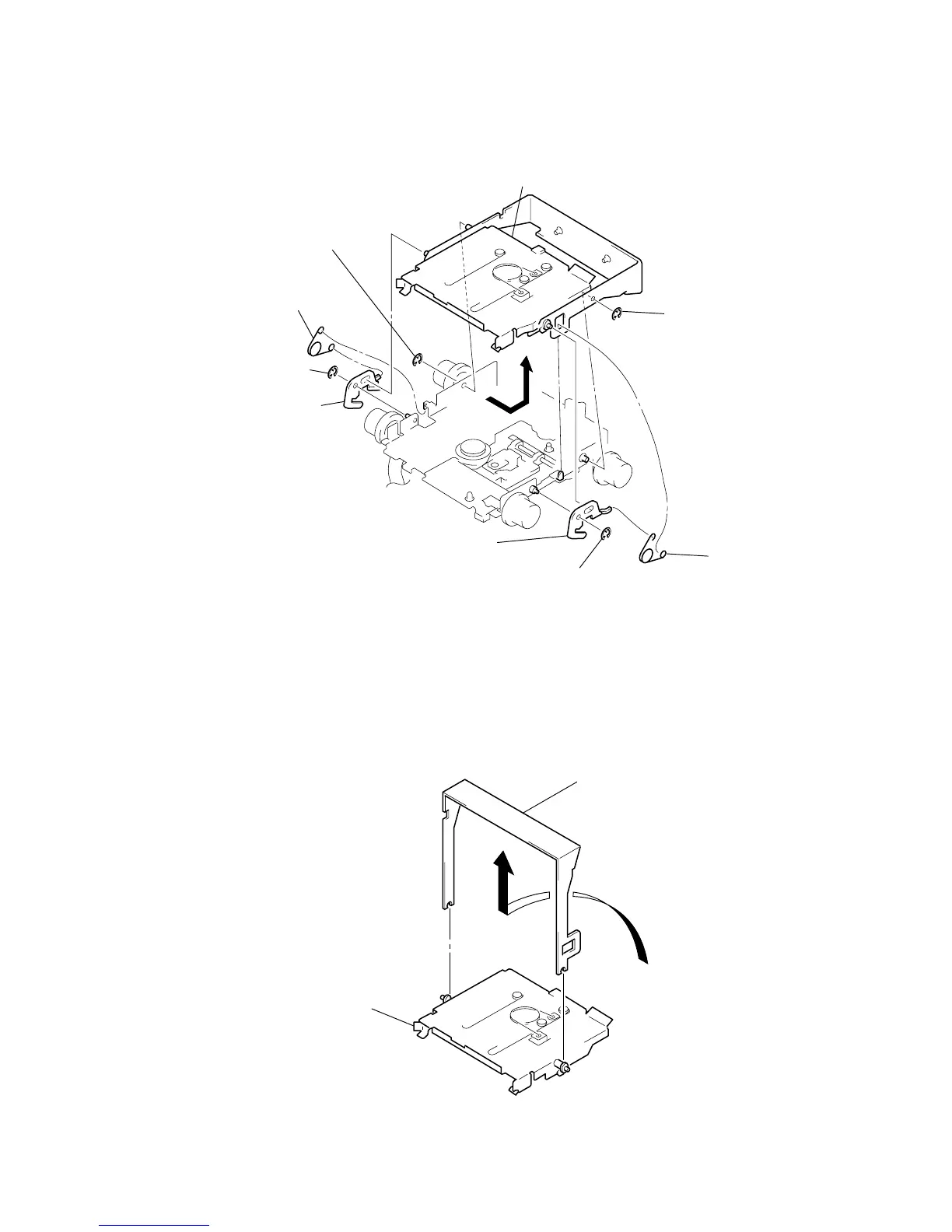

2-11. HOLDER ASSY
2 type-E stop ring 1.5
2 type-E stop ring 1.5
3 lever (lock L)
2 type-E stop ring 1.5
2 type-E stop ring 1.5
4 Remove the holder assy in the
direction of the arrow.
1 spring (chucking)
1 spring (chucking
)
3 lever (lock R)
2-12. CHUCKING ARM ASSY
1 Remove the chucking arm ass
y
in the direction of the arrow.
holder assy
