Sony Model MV-700HR - Cover (Hinge); Front;Rear Case (Main) Section, Monitor Section

MV-700HR
10

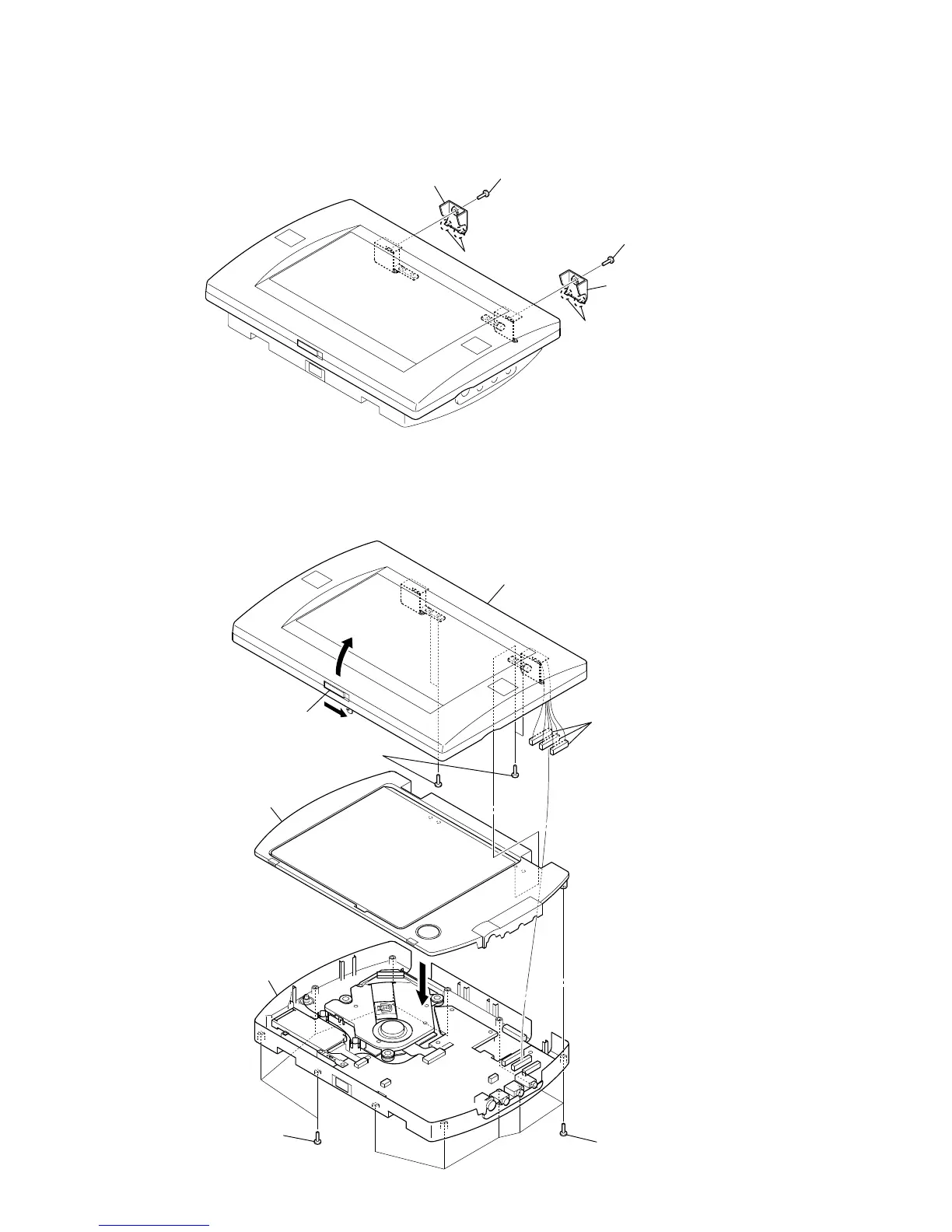

3-2. COVER (HINGE)
3-3. FRONT/REAR CASE (MAIN) SECTION, MONITOR SECTION
Note: Follow the disassembly procedure in the numerical order given.
1 screw
(B 2 × 3)
3 cover (hinge)
3 cover (hinge
)
1 screw
(B 2 × 3)
2 two claws
2 two claws
5 four screws
(B 2
× 5)
1 five screws
(B P-TITE M2)
1 six screws
(B P-TITE M2)
2
4 rear case (main) section
6 front case (main) section
4 Open the monitor section.
7 monitor section
3 three connectors
(CN1005, CN1006, CN1007
)
