Sony Model MV-700HR - Front Case (LCD) Section

56
MV-700HR

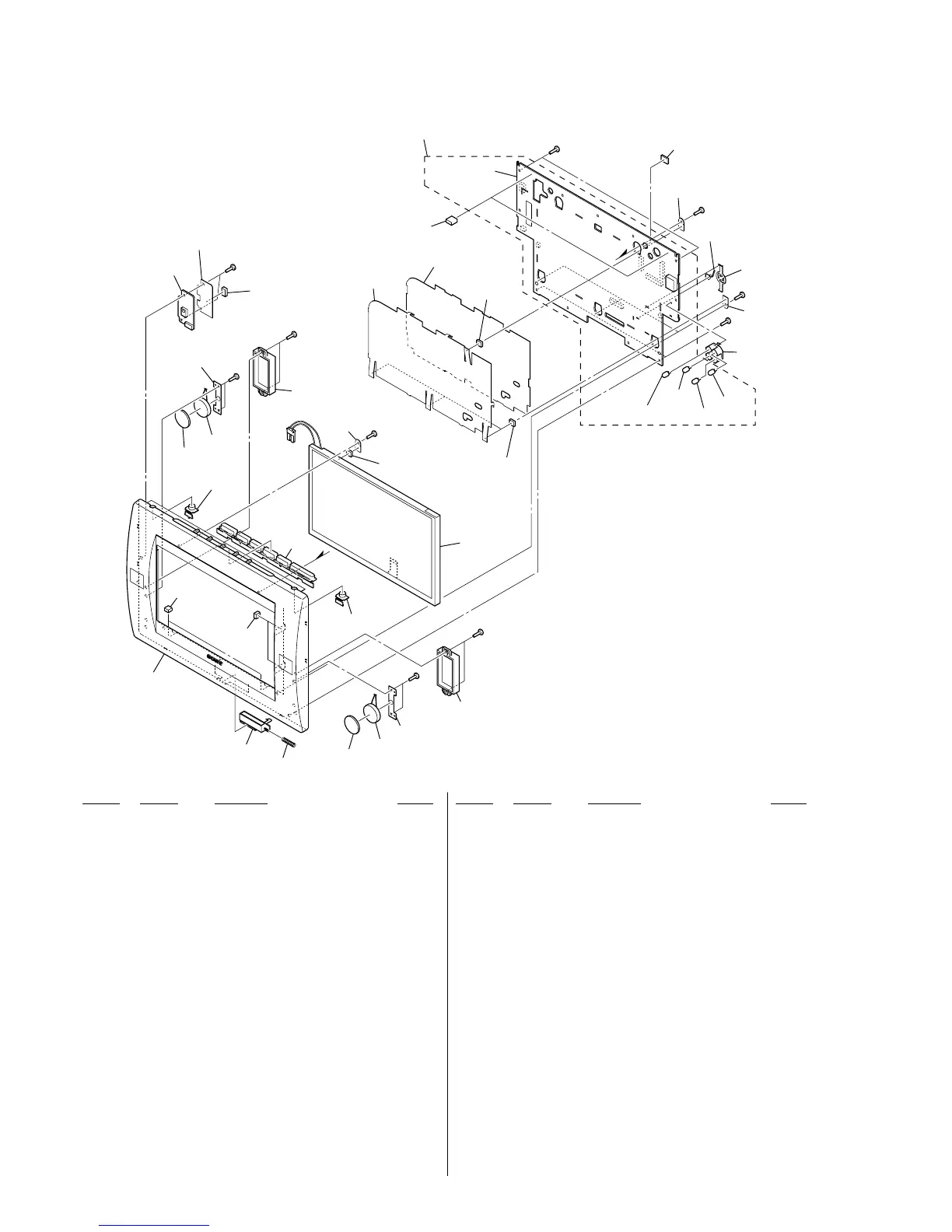

7-3. FRONT CASE (LCD) SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 2-548-082-01 SPRING (LOCK)
102 2-548-081-01 SLIDER (LOCK) (SILVER)
102 2-548-081-11 SLIDER (LOCK) (BLACK)
103 3-254-868-01 CUSHION (LCD)
104 X-2025-514-1 CASE (LCD) ASSY, FRONT (SILVER)
104 X-2055-326-1 CASE (LCD) ASSY, FRONT (BLACK)
105 2-548-074-01 BUTTON (SOURCE) (SILVER)
105 2-548-074-11 BUTTON (SOURCE) (BLACK)
106 2-548-075-01 BUTTON (VOL) (u, x, ., >, S-MENU,
– VOLUME +) (SILVER)
106 2-548-075-11 BUTTON (VOL) (u, x, ., >, S-MENU,
– VOLUME +) (BLACK)
107 2-548-073-01 BUTTON (POWER) (z) (SILVER)
107 2-548-073-11 BUTTON (POWER) (z) (BLACK)
108 2-548-069-01 CUSHION (SP) A
109 A-1111-883-A CONTROL BOARD, COMPLETE
110 2-629-309-01 CUSHION (REMOCON)
111 2-592-188-01 CUSHION (LCD)
112 3-254-866-01 RETAINER (LCD)
113 2-548-077-01 PLATE (SHIELD)
114 2-548-070-01 SHEET (LCD)
115 2-629-308-01 CUSHION (BUTTON)
116 A-1111-882-A MONITOR BOARD, COMPLETE (US, CND)
116 A-1112-956-A MONITOR BOARD, COMPLETE (AEP, UK, RU)
116 A-1113-030-A MONITOR BOARD, COMPLETE
(E (PAL), TW, AUS)
116 A-1113-058-A MONITOR BOARD, COMPLETE (E (NTSC))
116 A-1118-862-A MONITOR BOARD, COMPLETE (KR)
116 A-1118-872-A MONITOR BOARD, COMPLETE (CH)
117 2-548-078-01 TERMINAL (BATT, +)
118 2-548-079-01 TERMINAL (BATT, –)
119 2-548-076-01 HOLDER (IR)
120 2-632-832-01 SHEET (REMOCON), SHIELD
121 2-631-641-51 CUSHION (GND) (EXCEPT US, E (NTSC))
D501 8-719-052-34 LED DAL5821 (IR TRANSMITTER (L-CH))
D502 8-719-052-34 LED DAL5821 (IR TRANSMITTER (L-CH))
D503 8-719-052-34 LED DAL5821 (IR TRANSMITTER (R-CH))
D504 8-719-052-34 LED DAL5821 (IR TRANSMITTER (R-CH))
LCD900 1-805-867-11 DISPLAY PANEL, LIQUID CRYSTAL
SP1 1-826-118-11 SPEAKER (1.8cm) (L-CH)
SP2 1-826-118-11 SPEAKER (1.8cm) (R-CH)
#3 7-685-504-19 SCREW +BTP 2X6 TYPE2 N-S
101
102
103
103
104
105
106
107
108
108
109
120
110
111
111
111
112
112
112
121
113
114
115
116
117
118
119
not supplied
not supplied
#3
#3
#3
#3
LCD900
D501
D502
D503
D504
#3
#3
#3
#3
#3
#3
not supplied
SP2
SP1
not supplied
MONITOR
board
Ver. 1.2
