MV-700HR
MODEL IDENTIFICATION
Label indication
Signal format Region Destination
system code
NTSC 1 US, Canadian models
PAL2AEP, UK models
PAL5Russian model
PAL 3
E (PAL), Taiwan, Korean,
Australian models
NTSC 4 E (NTSC) model
PAL6Chinese model
NOTE FOR REPLACING THE MAIN BOARD OR
IC105 ON THE MAIN BOARD
This set requires writing the region code for each destination, if the
MAIN board or IC105 was replaced. Therefore, be sure perform
the region code writing as below.
1. Download the software for region code from website of the
ESI and write this software to a CD-R.
2. Set the CD-R to the set and load the software.
SECTION 1
SERVICING NOTES
The laser diode in the optical pick-up block may suffer electrostatic
break-down because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic break-down and also
use the procedure in the printed matter which is included in the
repair parts.
The flexible board is easily damaged and should be handled with
care.
NOTES ON LASER DIODE EMISSION CHECK
Never look into the laser diode emission from right above when
checking it for adjustment. It is feared that you will lose your sight.
NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT
UNLEADED SOLDER
Boards requiring use of unleaded solder are printed with the lead-
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
• Unleaded solder melts at a temperature about 40 ˚C higher
than ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350 ˚C.
Caution: The printed pattern (copper foil) may peel away if
the heated tip is applied for too long, so be careful!
• Strong viscosity
Unleaded solder is more viscou-s (sticky, less prone to flow)
than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.
• Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.

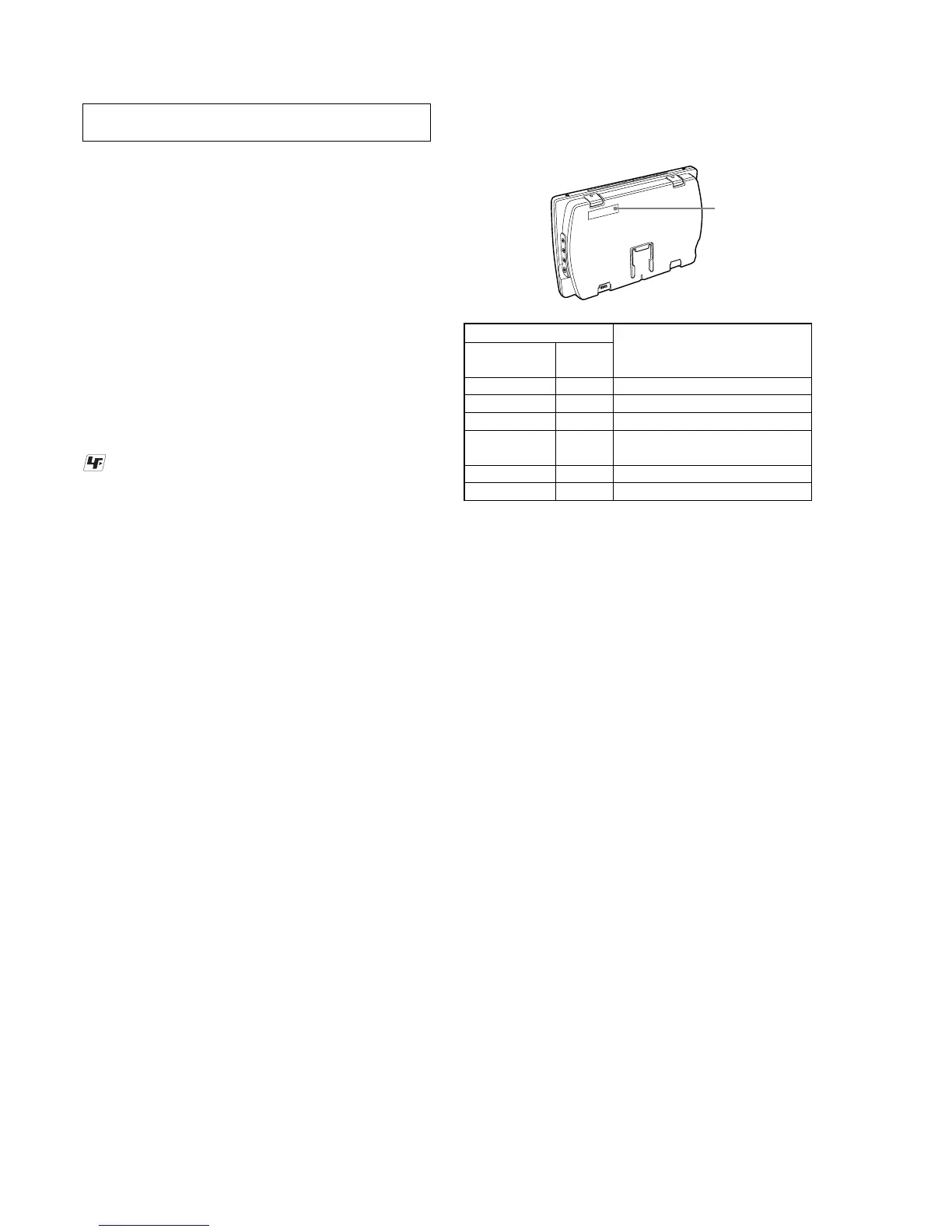

Region code label
– Bottom View –
Ver. 1.2
To Next Page
