Sony Model MV-700HR - 7 Exploded Views; Overall Section

54
MV-700HR
SECTION 7
EXPLODED VIEWS
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 2-548-101-01 COVER (HINGE) (SILVER)
1 2-548-101-11 COVER (HINGE) (BLACK)
2 3-250-543-61 SCREW (+B P-TITE M2) (for BLACK)
2 3-250-543-81 SCREW (+B P-TITE M2) (for SILVER)
3 X-2022-450-1 WIRE (ANTENNA) ASSY
(US, CND, E (PAL), TW, KR, AUS, CH)
4 1-829-358-21 CORD, CONNECTION (CIGAR)
(US, CND, AEP, UK, RU)
5 1-829-358-31 CORD, CONNECTION (CIGAR) (E (NTSC))
06 1-468-626-52 ADAPTOR, AC (MPA-AC1)
7 1-469-241-11 CORE, FERRITE (RFC-8 BK)
(US, CND, AEP, UK, RU)
8 1-765-080-91 CORD, CONNECTION (AUDIO/VIDEO CABLE)
(E (NTSC))
8 1-824-097-11 CORD, CONNECTION (AUDIO/VIDEO INPUT
CABLE) (US, CND, E (PAL), TW, KR, AUS, CH)
9 A-1121-886-A CRADLE ASSY
(US, CND, AEP, UK, RU, E (NTSC))
010 1-829-237-11 CORD, POWER (for AC ADAPTOR)
(US, CND, E (NTSC))
011 1-827-480-11 POWER-SUPPLY CORD (for AC ADAPTOR)
(AEP, UK)
012 1-827-481-11 POWER-SUPPLY CORD (for AC ADAPTOR)
(AEP, UK, RU, E (PAL), AUS)
013 1-776-985-12 CORD, POWER (KR)
014 1-827-947-31 CORD, POWER (CH)
015 1-830-518-11 POWER-SUPPLY CORD SET (TW)
F1 1-532-349-11 FUSE (4A/125V)
#1 7-621-772-00 SCREW +B 2X3 (for BLACK)
#1 7-621-772-08 SCREW +B 2X3 (for SILVER)
#2 7-621-771-06 SCREW +B 2X5

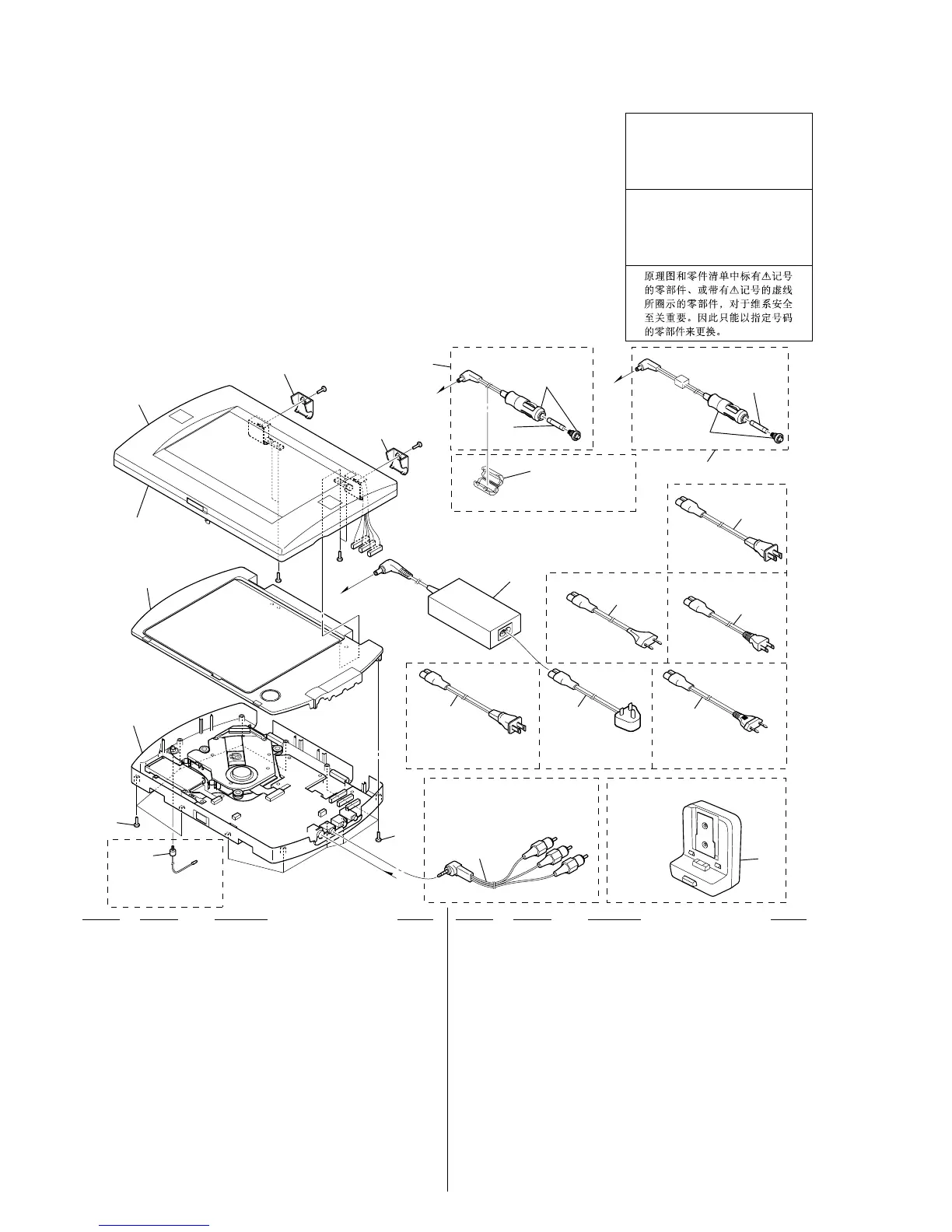

7-1. OVERALL SECTION
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Accessories are given in the last of the
electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
• Abbreviation
AUS: Australian model
CH : Chinese model
1
1
2
2
3
4
5
6
7
8
9
front case (LCD)
section
rear case (LCD)
section
#1
#1
#2
#2
rear case (main)
section
not supplied
front case (main)
section
(US, CND, E (PAL),
TW, KR, AUS, CH)
(US, CND, AEP, UK, RU,
E (NTSC))
(US, CND, E (NTSC), E (PAL),
TW, KR, AUS, CH)
(US, CND, AEP, UK, RU) (E (NTSC))
(TW)(KR)
(CH)
(US, CND, AEP, UK, RU)
(US, CND, E (NTSC)) (AEP, UK)
(AEP, UK, RU,
E (PAL), AUS)
10
11
12
13
14
15
F1
F1
not supplied
CND : Canadian model
KR : Korean model
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by mark
0 or dotted line with mark 0 are
critical for safety.
Replace only with part number
specified.
Ver. 1.2
RU : Russian model
TW : Taiwan model
