Sony Model MV-700HR - Page 75

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
75
MV-700HR
Ver. 1.2
PARTS FOR INSTALLATION AND CONNECTIONS
(E (PAL, KR, TW, AUS, CH)
***************************************
551 A-1111-889-A CRADLE ASSY
552 X-2022-450-1 WIRE (ANTENNA) ASSY
553 1-830-568-21 CORD, CONNECTION (CIGAR)
554 1-469-241-11 CORE, FERRITE (RFC-8 BK)
555 1-824-097-11 CORD, CONNECTION (AUDIO/VIDEO CABLE)
556 1-827-498-21 CABLE, DC (BATTERY RECHARGEBLE CABLE)
557 1-829-384-21 CORD, CONNECTION (POWER)
0558 1-776-985-11 CORD, POWER (KR)
0559 1-827-947-31 CORD, POWER (CH)
0560 1-830-518-11 POWER-SUPPLY CORD SET (TW)
0561 1-827-481-11 POWER-SUPPLY CORD (for AC ADAPTOR)
(E (PAL), AUS)
0562 1-468-626-52 ADAPTOR, AC (MPA-AC1)
563 X-2050-889-1 STAND ASSY
564 1-479-245-11 REMOTE COMMANDER (RM-X707)
565 2-548-730-01 LID, BATTERY CASE (for RM-X707)
566 1-528-174-31 BATTERY, LITHIUM (CR2032 TYPE)
F1 1-532-349-11 FUSE (4A/125V)
F4 1-532-798-11 FUSE (BLADE TYPE) (AUTO FUSE) (1A/32V)
F5 1-532-796-11 FUSE (BLADE TYPE) (AUTO FUSE) (5A/32V)
SOURCE
A
U
D
IO
V
O
L
1
4
7
2
5
8
0
3
6
9
E
N
T
E
R
SUBTITLE
SE
TU
P
C
LO
C
K
M
E
N
U
TOP MENU
SEARCH
O
PROGRAM
A
N
G
LE
C
LE
AR DS
P
L
R
E
P
u
x
>
.
y
y
M
m
F1
F4
F5
not supplied
not supplied
not supplied
not supplied

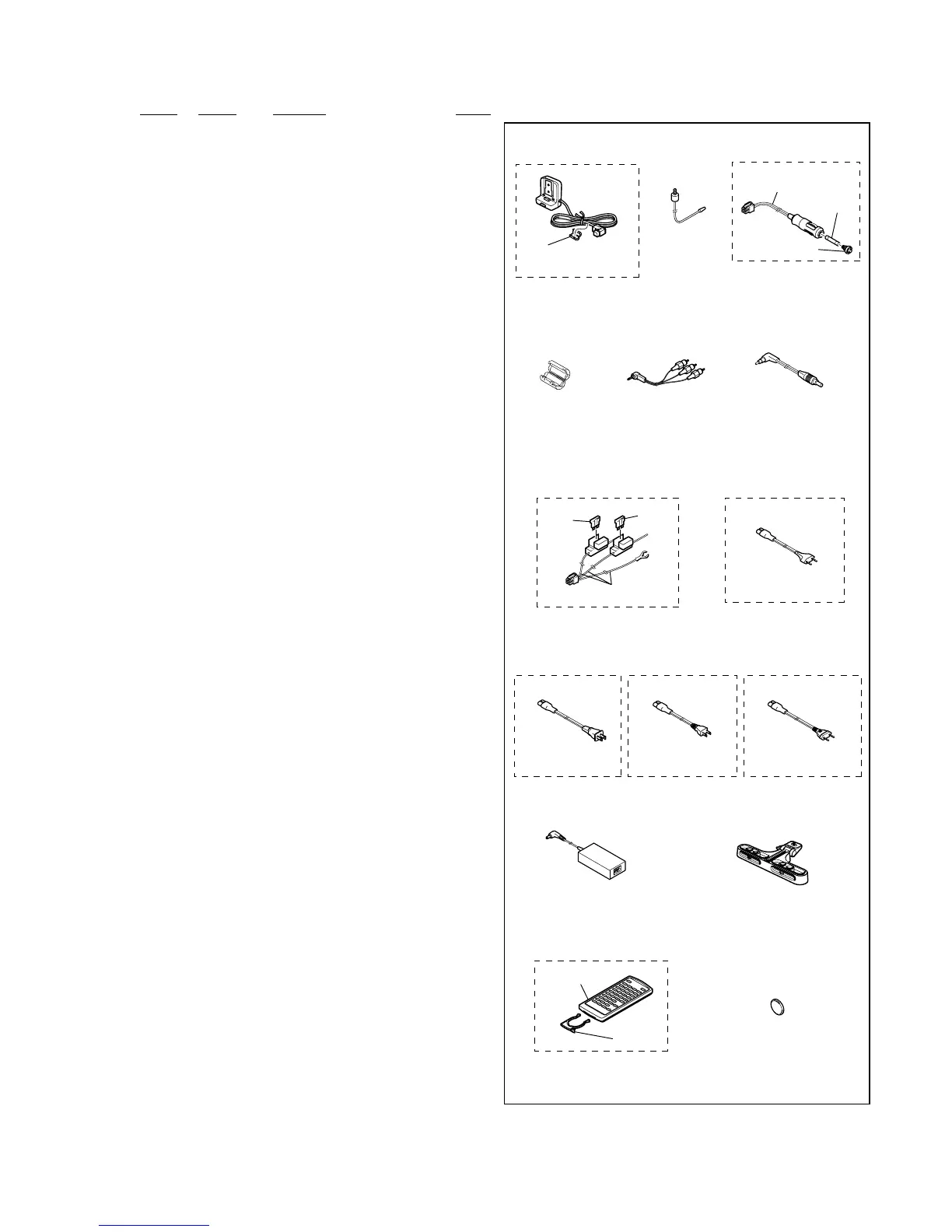

CRADLE ASSY
× 1
CONNECTION (POWER) CORD
× 1
DC CABLE
(BATTERY RECHARGEBLE
CABLE)
× 1
LITHIUM BATTERY
(CR2032 TYPE)
× 1
CONNECTION CORD (CIGAR)
× 1
AC ADAPTOR
× 1
POWER-SUPPLY CORD
× 1
STAND ASSY
× 1
REMOTE COMMANDER
(RM-X707)
× 1
(E (PAL), KR, TW, AUS, CH)
551
553
FERRITE CORE
(RFC-8BK)
× 2
554
554
FERRITE CORE (RFC-8BK)
× 1
CONNECTION CORD
× 1
555
561
556
557
562 563
564 566
WIRE
(ANTENA) ASSY
× 1
552
565
558
559 560
POWER-SUPPLY CORD
× 1
POWER-SUPPLY CORD
× 1
POWER-SUPPLY CORD
× 1
(KR)
(CH) (TW) (E (PAL), AUS)
