Sony MXD-D4 - Motor and CD Mechanism Disassembly; Motor Assembly and CD Mechanism Removal

22

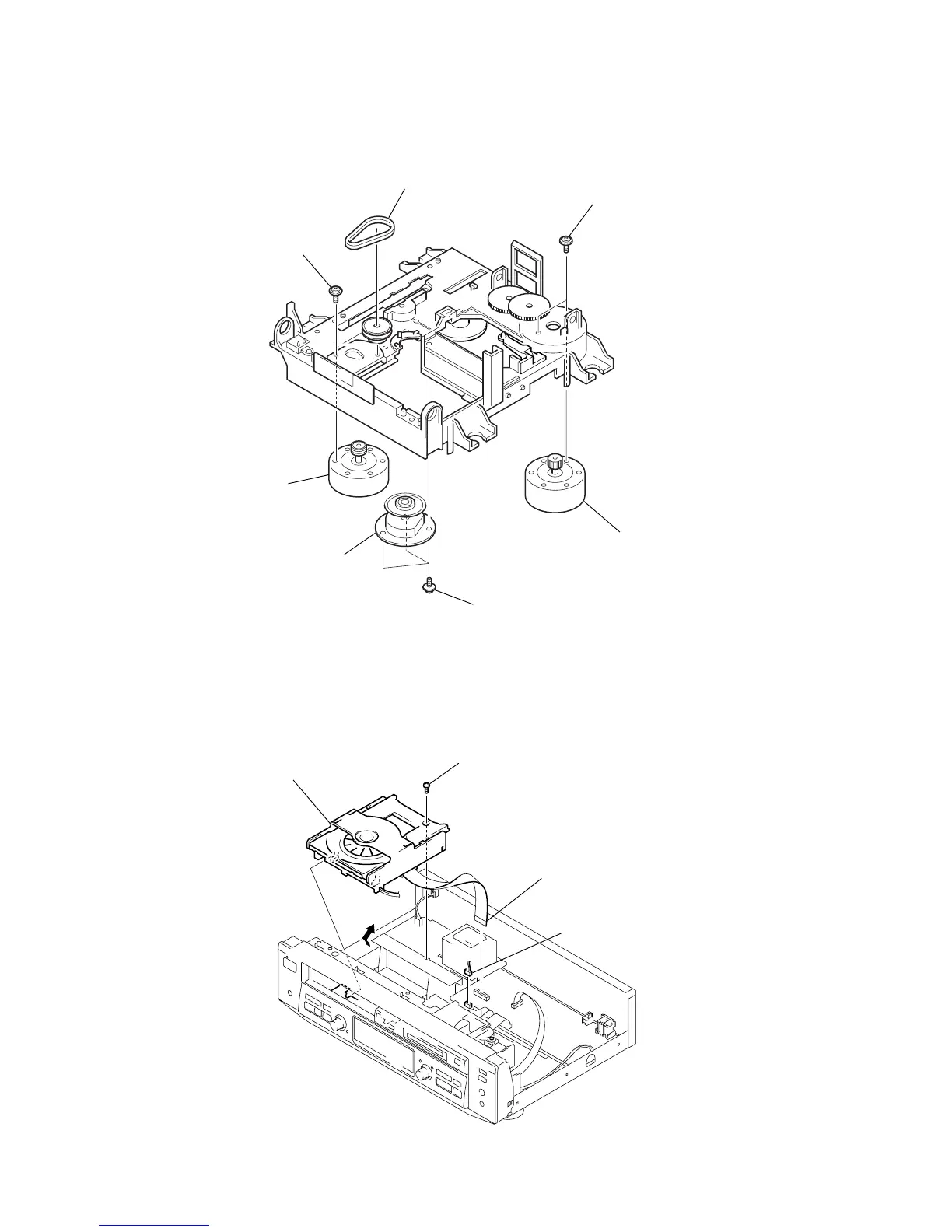

SPINDLE MOTOR ASS’Y (M101), SLED MOTOR ASS’Y (M102), LOADING MOTOR ASS’Y (M103)
CD MECHANISM DECK SECTION (CDM55B-21BD53)
2 two screws
(PWH1.7
× 2.5)
1 belt (loading)
4 two screws
(PWH1.7
× 2.5)
5 sled motor ass’y
(M102)
6 three screws
(M1.7)
7 spindle motor ass’y
(M101)
3 loading motor ass’y
(M103)
3 screw (BVTT 3X6)
4 CD mechanism deck
(CDM55B-21BD53)
1 wire (flat type) (21 core)
(CN302)
2 connector (CN301)
