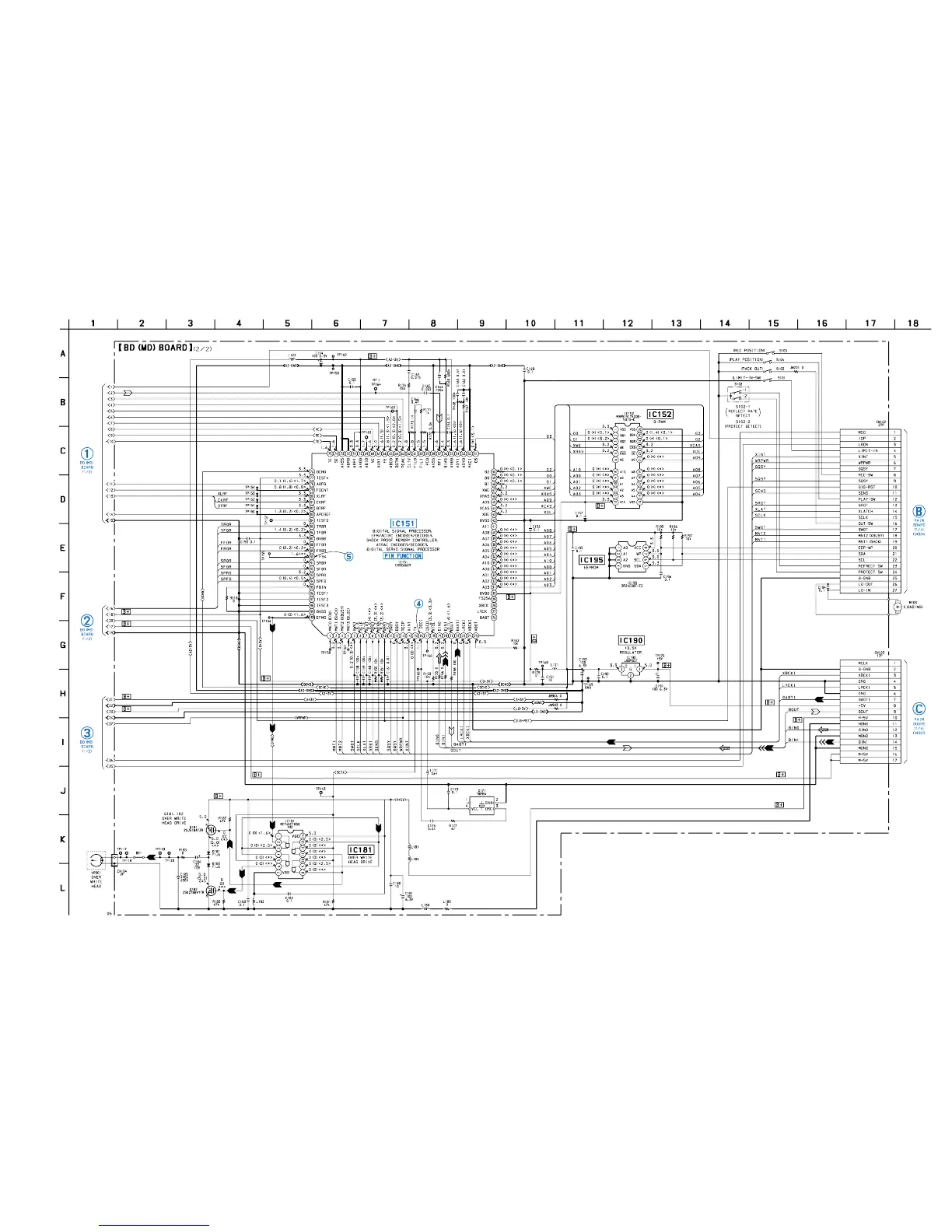

6-8. SCHEMATIC DIAGRAM – BD (MD) Board (2/2) –• See page 55 for Waveforms. • See page 49 for IC Block Diagram.
Note on Schematic Diagram:
• Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark : MD STOP
( ) : MD PLAY
< > : MD REC
∗
: Impossible to measure
(Page
52)
(Page
52)
(Page
52)
(Page
58)
(Page
58)
