Sony MXD-D4 - Main and Loading Board PWB Layouts; Main Board (Conductor Side) and Loading Board PWB Layouts

5757
MXD-D4
*
*
*

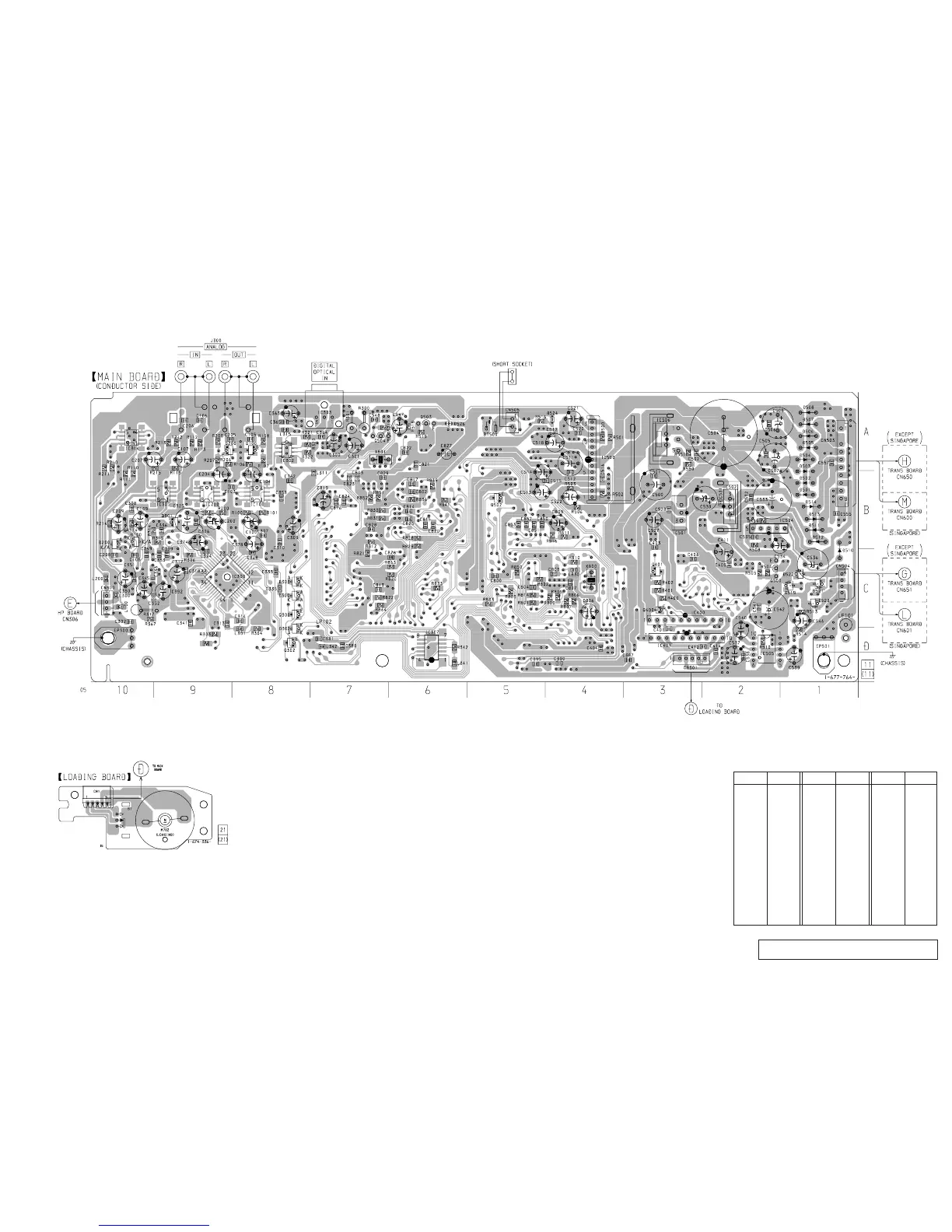

6-11. PRINTED WIRING BOARDS – MAIN (Conductor Side)/LOADING Boards –• See page 48 for Circuit Boards Location.
There are a few cases that the part isn't mounted in model
is printed on diagrams.
D100 B-10
D200 B-10
D300 C-8
D302 D-8
D303 C-8
D501 B-1
D502 B-1
D503 B-1
D504 A-1
D505 A-1
D506 A-1
D507 A-1
D508 A-1
D510 C-1
D511 B-1
D512 B-1
D513 B-1
D514 B-1
Ref. No. Location
D519 C-1
D520 C-1
D521 C-1
D522 C-1
D524 A-4
D526 A-6
IC100 B-8
IC200 B-9
IC300 C-9
IC302 A-8
IC303 A-7
IC304 A-10
IC305 B-9
IC307 D-6
IC400 C-3
IC401 D-3
IC500 A-4
Ref. No. Location
• Semiconductor Location
IC501 B-3
IC502 B-2
IC504 B-2
IC505 D-2
IC506 A-3
Q100 A-8
Q200 A-9
Q300 C-8
Q301 B-9
Q302 D-8
Q400 C-3
Q401 C-3
Q500 C-2
Q502 B-5
Q503 A-6
Q504 A-7
Ref. No. Location
(IN/OUT)
OUT
R
IN
(Page 68)
(Page 64)
(Page 66)
(Page 64)
(Page 66)
