Sony MXD-D4 - Exploded Views; Case Section Exploded View

80

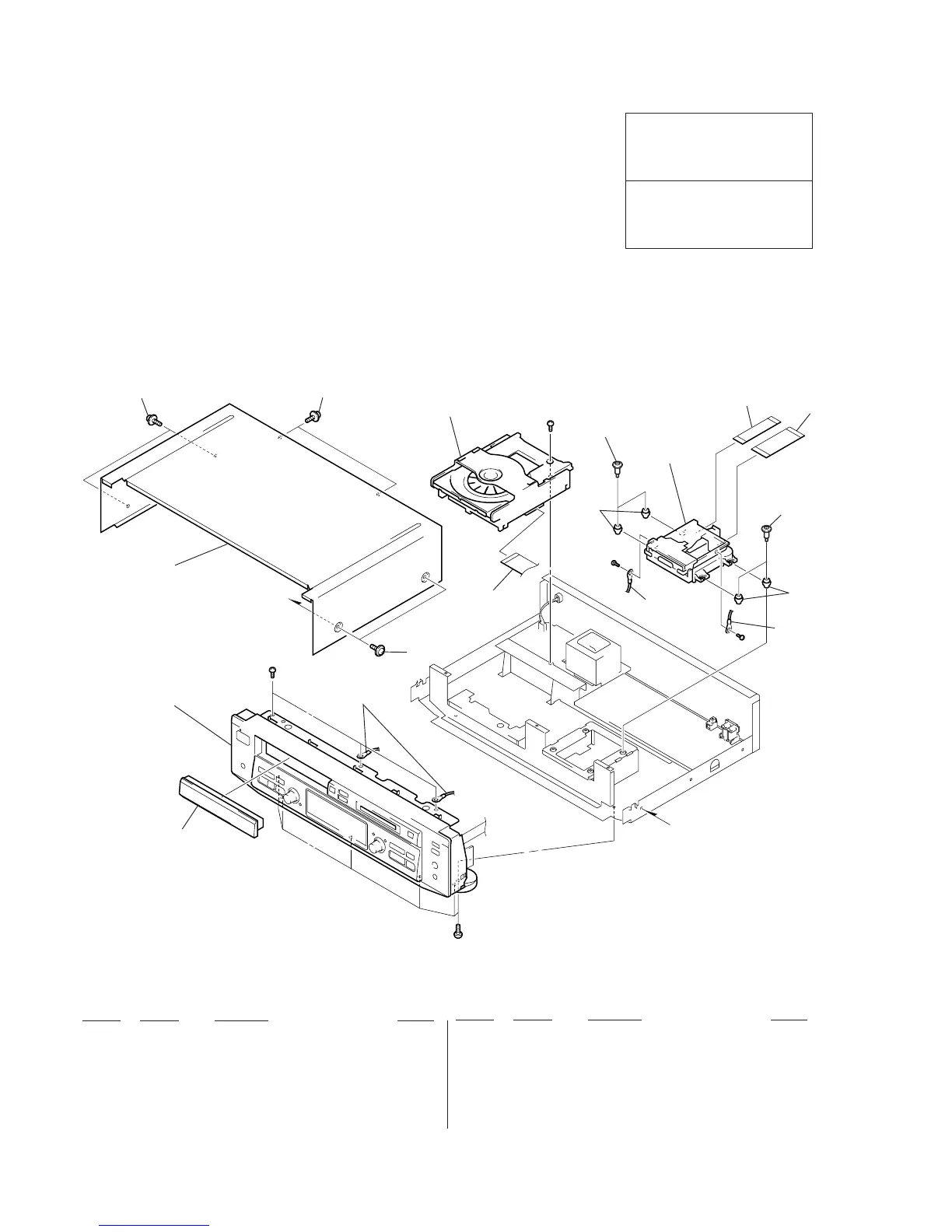

(1) CASE SECTION
SECTION 7
EXPLODED VIEWS
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of the
electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
4
4
8
8
2
7
1
7
7
6
5
3
not supplied
Front panel section
#3
#4
#4
#3
CDM55B-21BD53
MDM-7X2A
#3
not
supplie
d
not
supplied
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 4-229-435-01 PANEL, LOADING (BLACK)
1 4-229-435-11 PANEL, LOADING (GOLD)
2 1-792-812-11 WIRE (FLAT TYPE) (27 CORE)
3 1-792-817-11 WIRE (FLAT TYPE) (17 CORE)
4 4-228-643-11 SCREW (+BVTTWH M3), STEP
5 1-792-818-11 WIRE (FLAT TYPE) (21 CORE)
* 6 3-931-432-01 CASE (410726) (BLACK)
* 6 3-931-432-41 CASE (410726) (GOLD)
7 4-210-291-01 SCREW (CASE 3 TP2) (BLACK)
7 4-210-291-11 SCREW (CASE 3 TP2) (GOLD)
8 4-228-689-01 INSULATOR
