5656
MXD-D4
*

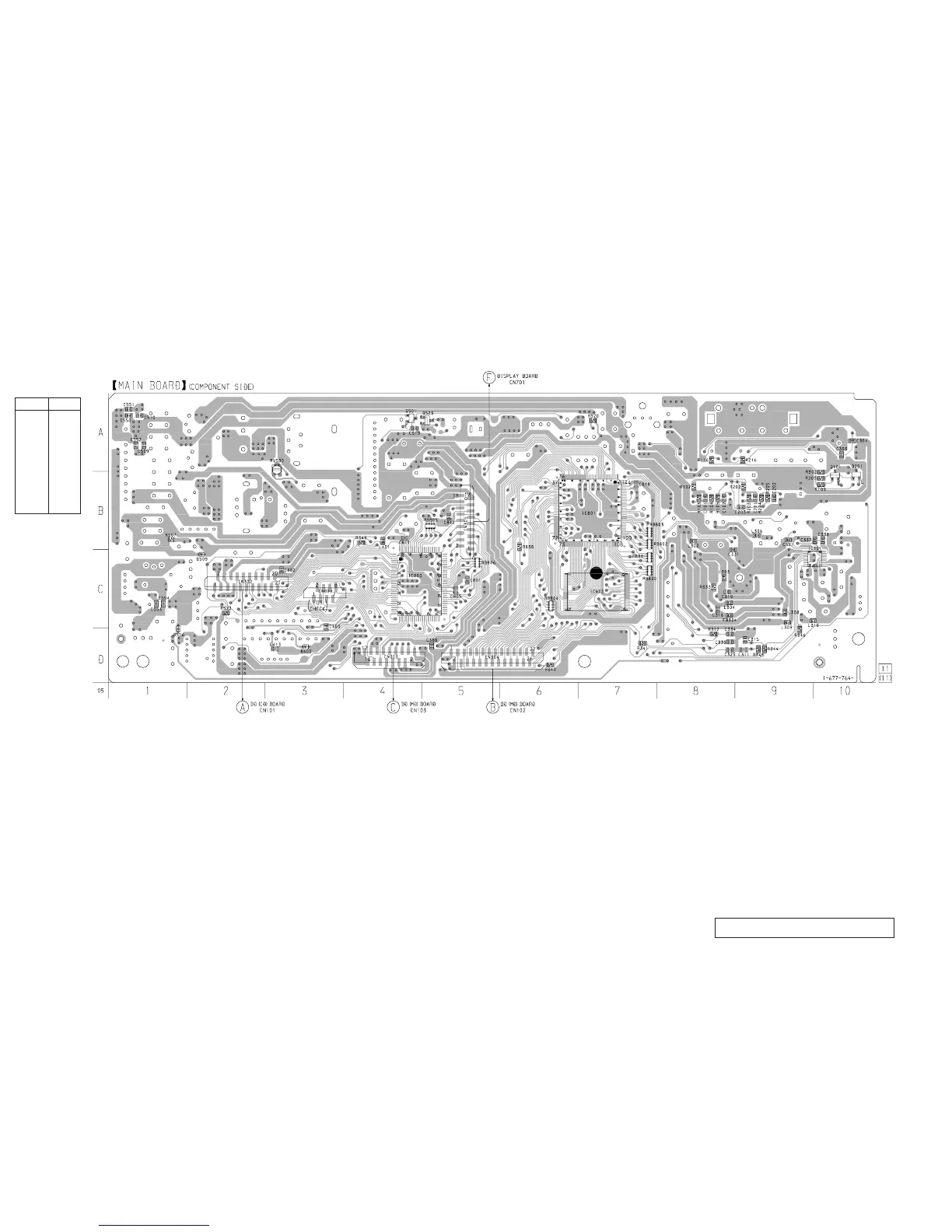

6-10. PRINTED WIRING BOARD – MAIN Board (Component Side) –• See page 48 for Circuit Boards Location.
There are a few cases that the part isn't mounted in model
is printed on diagrams.
D400 D-3
D509 C-2
D516 D-1
D523 A-5
IC301 C-10
IC800 C-4
IC801 B-7
IC802 C-7
Q101 B-10
Q201 B-10
Q501 A-4
Ref. No. Location
• Semiconductor
Location
(Page 62)
(Page 50) (Page 54)
(Page 54)
Note: Be sure to execute the Voltage Adjustment on page 44, whenever the asterisked parts (IC506, R550, R551, RV500), mounted
MAIN board, and CD base unit (BU-21BD53) were replaced.
To Next Page
