Sony MXD-D4 - Exploded Views (Continued); Front Panel Section Exploded View

81

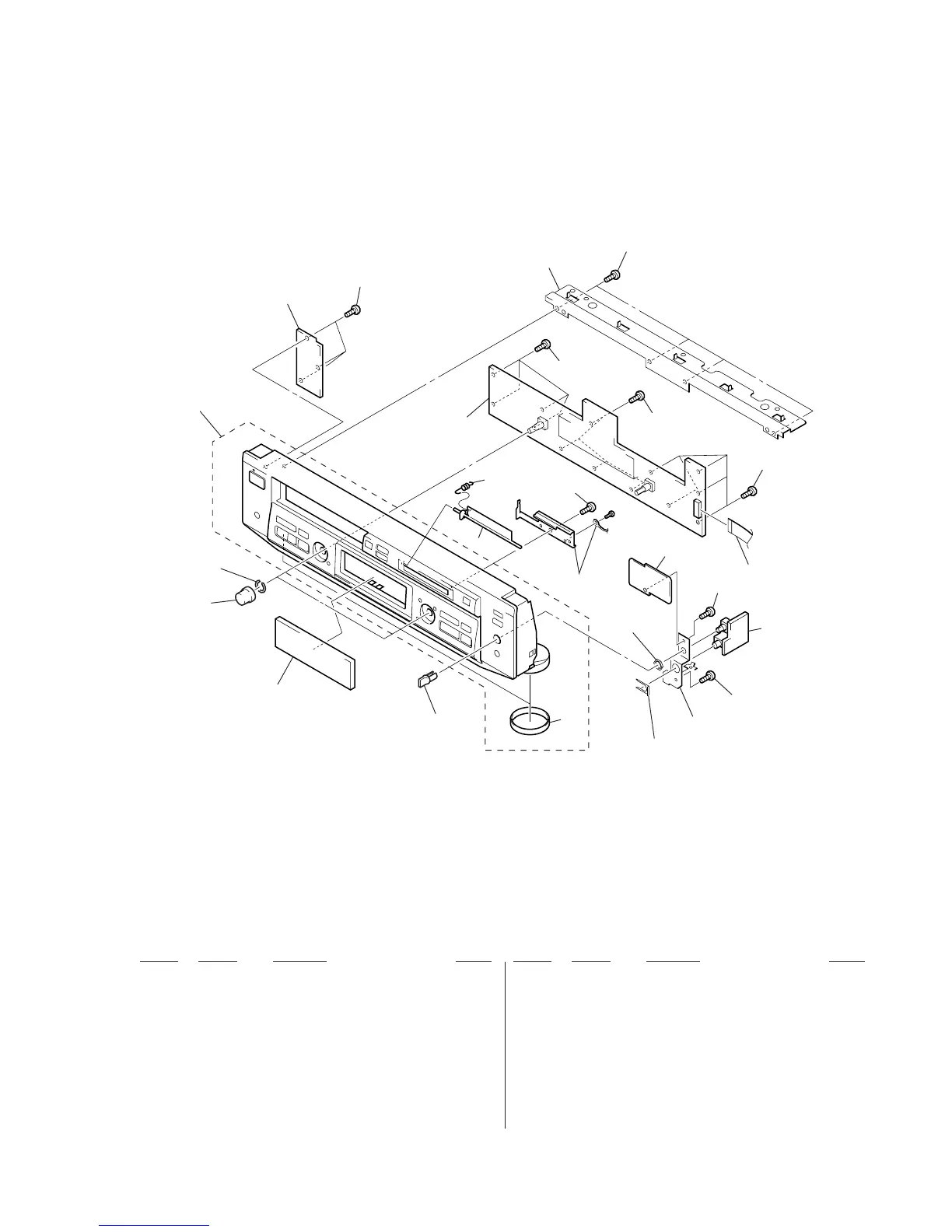

(2) FRONT PANEL SECTION
52
53
59
61
54
51
60
60
60
60
60
60
56
60
57
58
not supplied
not supplied
not
supplied
not
supplied
60
not
supplied
not
supplied
not
supplied
supplied
with J481
supplied
with RV481
#4
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
51 4-220-710-01 PLATE, INDICATION
52 4-996-687-41 KNOB (AMS) (GOLD)
52 4-996-687-51 KNOB (AMS) (BLACK)
53 3-354-981-11 SPRING (SUS), RING
54 X-3379-484-2 PANEL ASSY, FRONT (US, Canadian)
54 X-3379-485-2 PANEL ASSY, FRONT
(AEP, UK, Singapore: BLACK)
54 X-3379-486-2 PANEL ASSY, FRONT (Singapore: GOLD)
56 1-792-953-11 WIRE (FLAT TYPE) (18 CORE)
57 4-228-761-01 LID (CARTRIDGE) (BLACK)
57 4-228-761-11 LID (CARTRIDGE) (GOLD)
58 4-230-410-11 SPRING (LID), TENSION
59 4-950-189-01 KNOB (A) (VOL) (BLACK)
59 4-950-189-41 KNOB (A) (VOL) (GOLD)
60 4-951-620-01 SCREW (2.6X8), +BVTP
61 4-977-593-11 RING (DIA. 50), ORNAMENTAL
(AEP, UK, Singapore: BLACK)
61 4-977-593-21 RING (DIA. 50), ORNAMENTAL
(Singapore: GOLD)
