Sony MXD-D4 - Tray and Cam Mechanism Disassembly; Tray, Loading Board, and Cam Component Removal

24

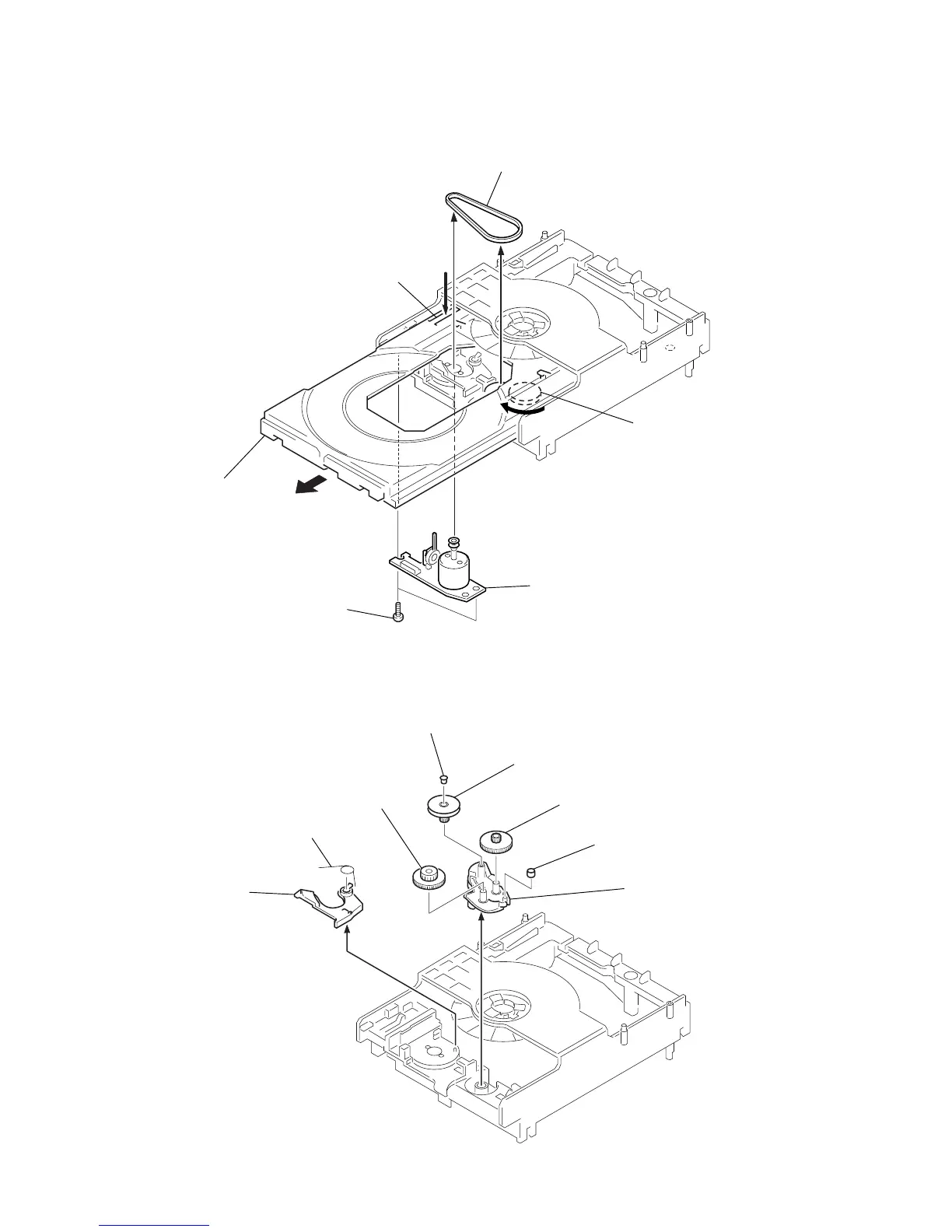

TRAY, LOADING BOARD
CAM (CDM55)
2 belt (CDM55)
claw
3 Pull the tray pushing claw.
4 two screws
(BTP2.6 × 8)
5 LOADING board
1 Rotate the gear (B) in
the direction of arrow A.
A
2 lever (SW)
1 torsion spring
6 gear (B)
3 spacer (55)
4 pulley (LDG)
5 gear (A)
7 roller
8 cam (CDM55)
