Sony MZ-E10 - Mechanism Deck Exploded View

34
MZ-E10
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

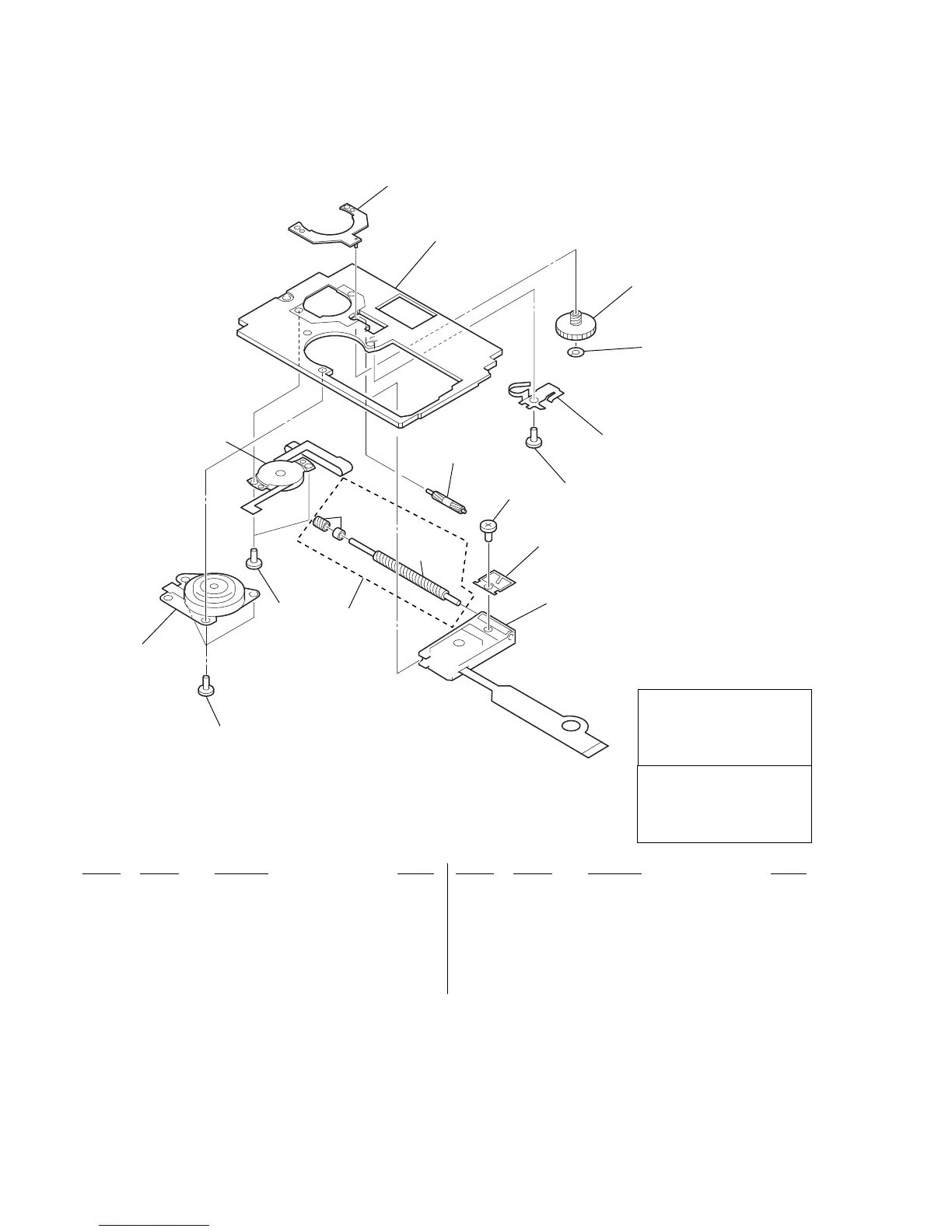

7-2. MECHANISM DECK SECTION
(MT-MZE10-184)
52
60
53
54
59
52
51
61
58
57
56
55
51
M901
M902
not
supplied
not
supplied
51 3-225-278-02 SCREW, TAPPING
52 3-225-996-17 SCREW (M1.4)(EG),PRECISION PAN
53 X-3382-398-1 BASE ASSY, MOTOR
* 54 3-244-870-01 CHASSIS
55 3-244-882-01 GEAR (SA)
56 3-338-645-31 WASHER (0.8-2.5)
57 3-244-880-01 SPRING, THRUST DETENT
0 58 X-3383-261-1 OPTICAL PICK-UP ASSY (ABX-1ES)
59 3-244-883-01 GEAR (SB)
60 A-3174-607-A SCREW BLOCK ASSY, LEAD
61 3-244-879-01 SPRING, RACK
M901 8-835-782-01 MOTOR, DC SSM18D (SPINDLE)
M902 8-835-783-01 MOTOR, DC SSM21B (SLED)
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifié.
