Sony MZ-E10 Service Manual

5
MZ-E10
SECTION 3
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.

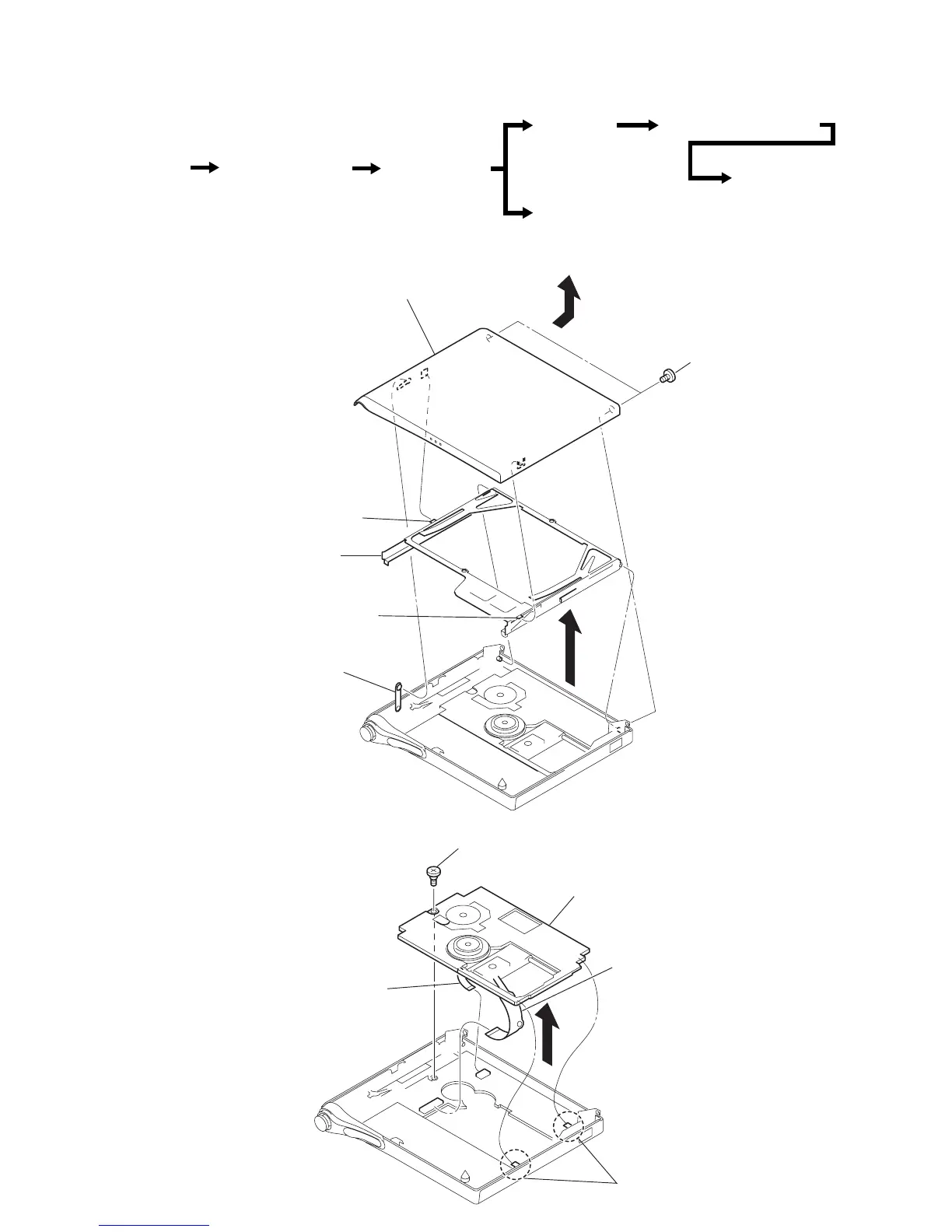

3-1. PANEL ASSY (S), UPPER
r
The equipment can be removed using the following procedure.
6
4
1 Two screws (M1.4
)
7 Panel ASSY (S), upper
2 Claw
Holder ASSY
3 Claw
5 Bracket ASSY
Panel ASSY (S), upper
Set
Optical pick-up ASSY
(ABX-1ES)
Mechsnism deck
(MT-MZE10-184)
Bracket ASSY
POWER board, MAIN board
CONTROL board
3-2. MECHANISM DECK (MT-MZE10-184)
3
1 Screw, step
6 Mechanism deck
(MT-MZE10-184)
4 OP flexible boar
d
(CN501)
2 Two claws
5 Motor flexible board
(CN551)
