Hooking up the
system
(PMC-DR50L)
According to the illustrations,
connect the cords firmly. Wrong
connections cause mal- functions.
Connect the mains lead last.
Notes
• Be sure to turn off the
power of the player
before connecting/
disconnecting the
mains lead.
• Connect the supplied
speakers to this player.
If you connect any
other speakers or
equipment, a mal-
function may occur.

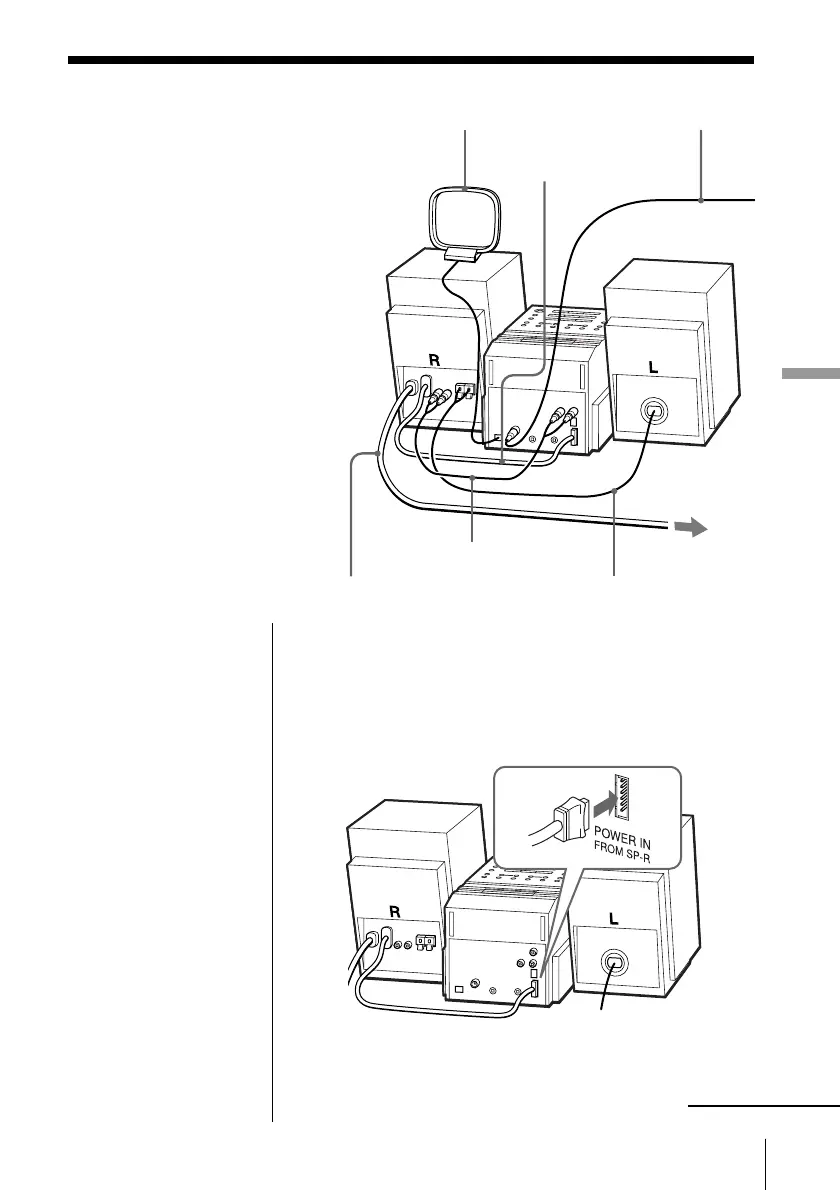

1 Hooking up the speakers
1 Connect the power cord of the POWER OUT TO
MAIN UNIT on the right speaker to the POWER
IN FROM SP-R jack of the player.
continued
Left
speaker
2 MW/LW loop aerial
Right
speaker
1 Audio connecting
cord
1 Speaker cord
to the mains
3 Mains lead
1 Power cord
2 FM lead aerial
