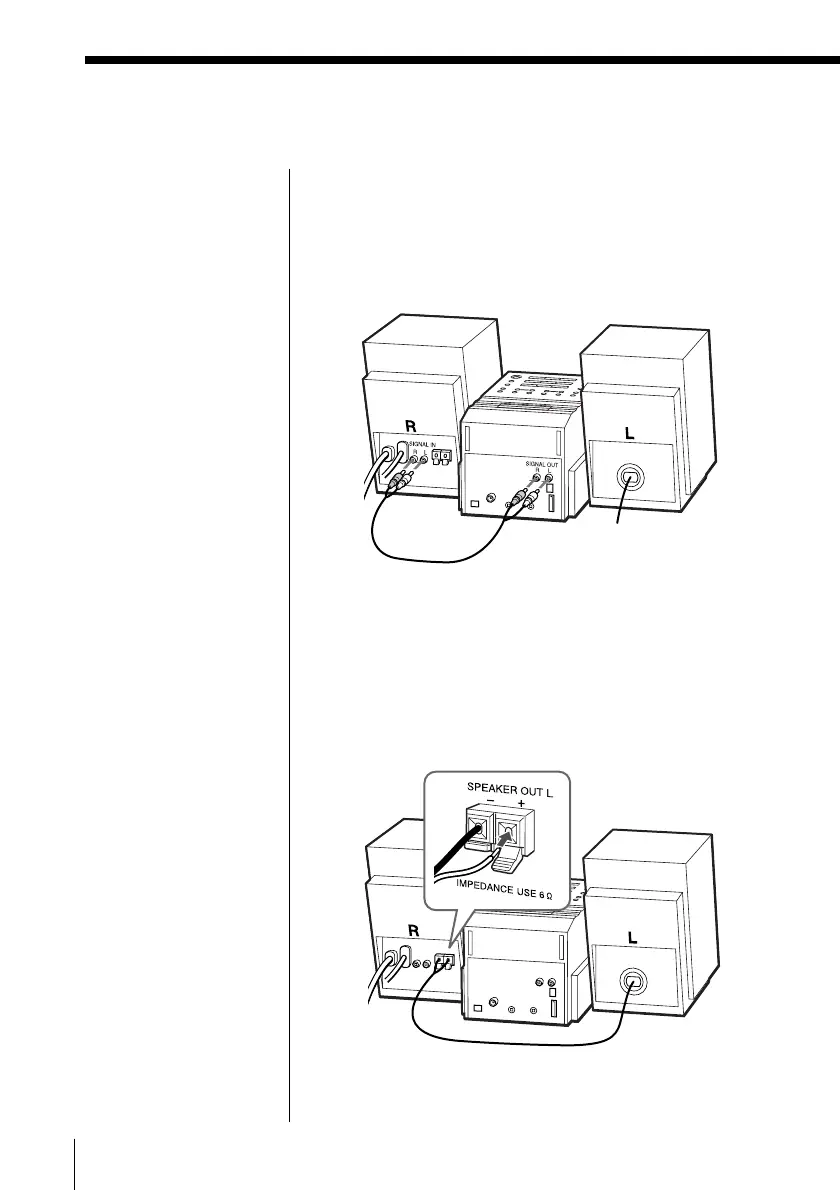

2 Connect the audio connecting cord (supplied) to
the SIGNAL OUT jacks of the player and the
SIGNAL IN jacks of the right speaker.
Connect the white plugs to the L (left) jacks and
the red plugs to the R (right) jacks.
3 Connect the speaker cord of the left speaker to the
SPEAKER OUT L terminals of the right speaker.
1 Push down the tab of the terminal.
2 Connect the red wire to the (+) plus terminal,
and the black wire to the (–) minus terminal.
3 Push the tab of the terminal up.
