Setting Up 45
GB
Setting Up

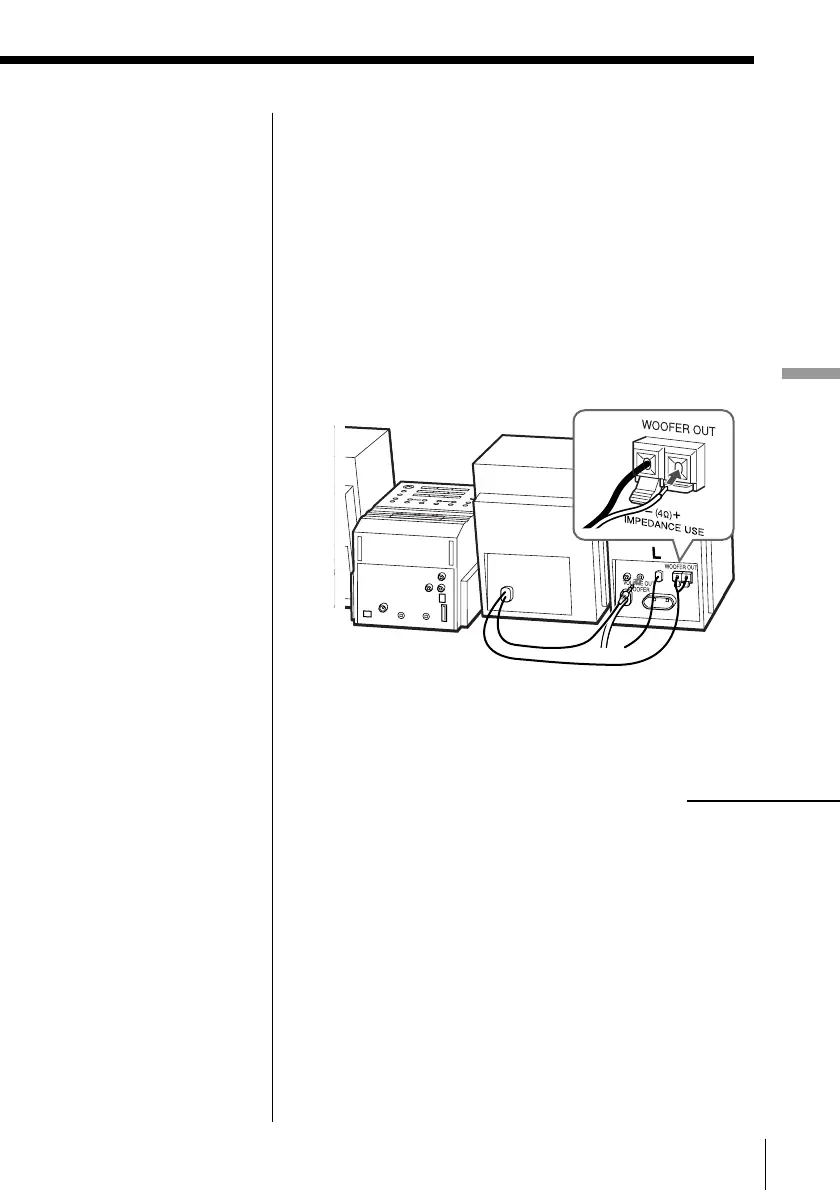

3 Hooking up the super woofer
1 Connect the speaker cord of the super woofer to
the WOOFER OUT terminals of the left speaker.
1 Push down the tab of the terminal.
2 Connect the white wire to the (+) plus terminal,
and the black wire to the (–) minus terminal.
3 Push the tab of the terminal up.
2 Connect the audio connecting cord of the super
woofer to the VOLUME OUT WOOFER jack of the
left speaker.
continued
To Next Page
