Sony RMT-D175A - Disassembly Procedures

2-1
DVP-NS72HP/NS77H/NS77HP/NS78H/NS78HP
Note: Follow the disassembly procedure in the numerical order given.

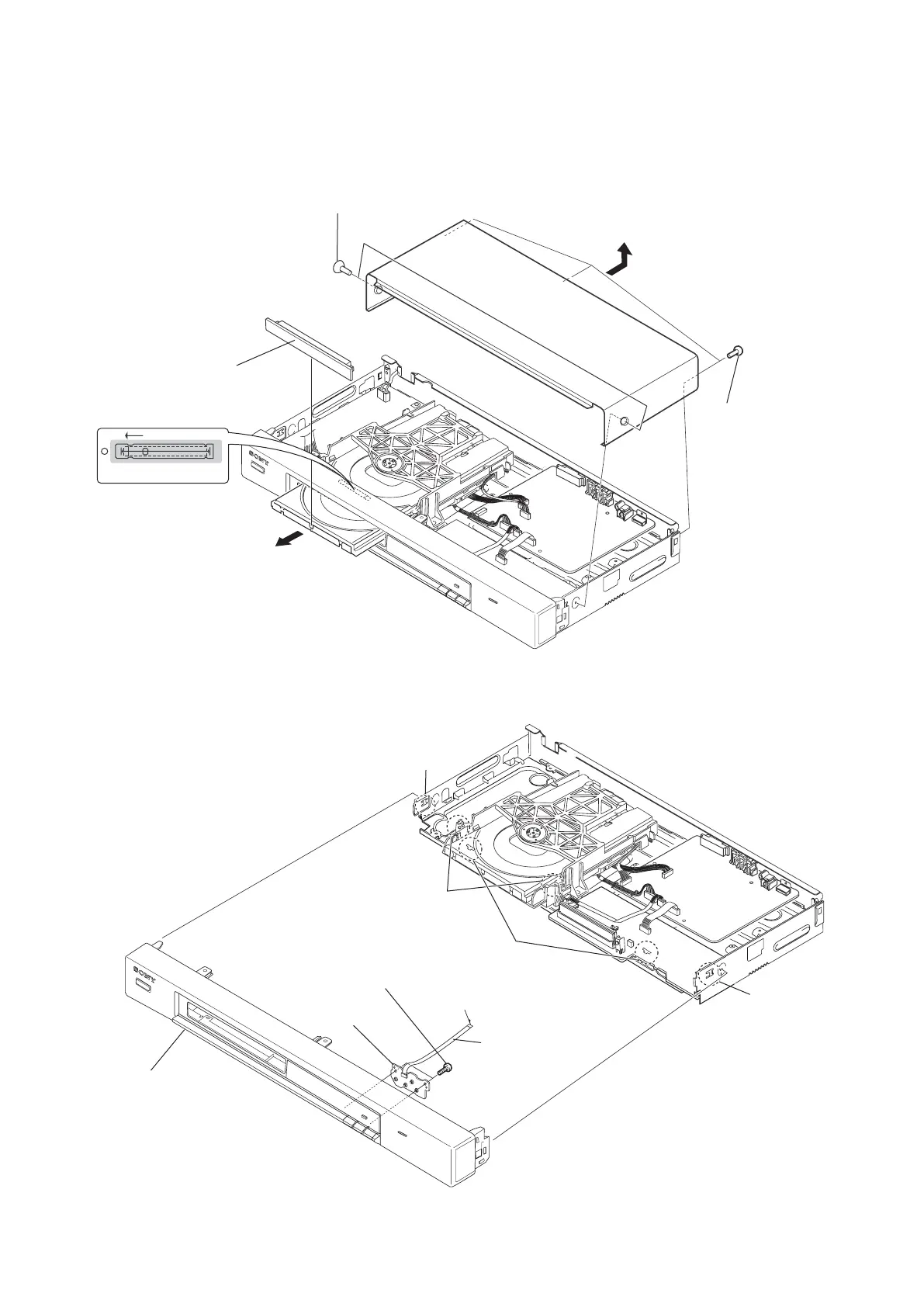

2-1. UPPER CASE
SECTION 2
DISASSEMBLY
2-2. FRONT PANEL ASSEMBLY, SW-512 BOARD
4 Two Tapping Screws
6 Upper case
3 Tray Cover
5 Three Tapping Screws
2
Chassis Back
1
7 Two Screws
+BVTP2.6 (3CR)
8 SW-512 board
b
6 Front Panel Assembly
5 Claw
2 Claw
1 FSW-003
Flat Flexible Cable
(CN402, 5P)
3 Claw
4 Claw
b
