2-4. OPTICAL PICK-UP
(DEVICE, OPTICAL KHM-313CAA/C2RP)
Caution Point on the Laser Diode:
Laser Diode in the optical Device is very sensitive to Surge Current or
ElectroStatic Discharge (ESD):
After take-out FMO-008 (Except AEP,UK,RUS)/FMO-012
(AEP,UK,RUS) Flat Flexible Cable from CN101 of MV-55
(Except AEP,UK,RUS)/MV-56(AEP,UK,RUS) board immediately
ground FMO-008/FMO-012 Flat Flexible Cable pattern using
short clip. Metal paper clip can be used as short clip.

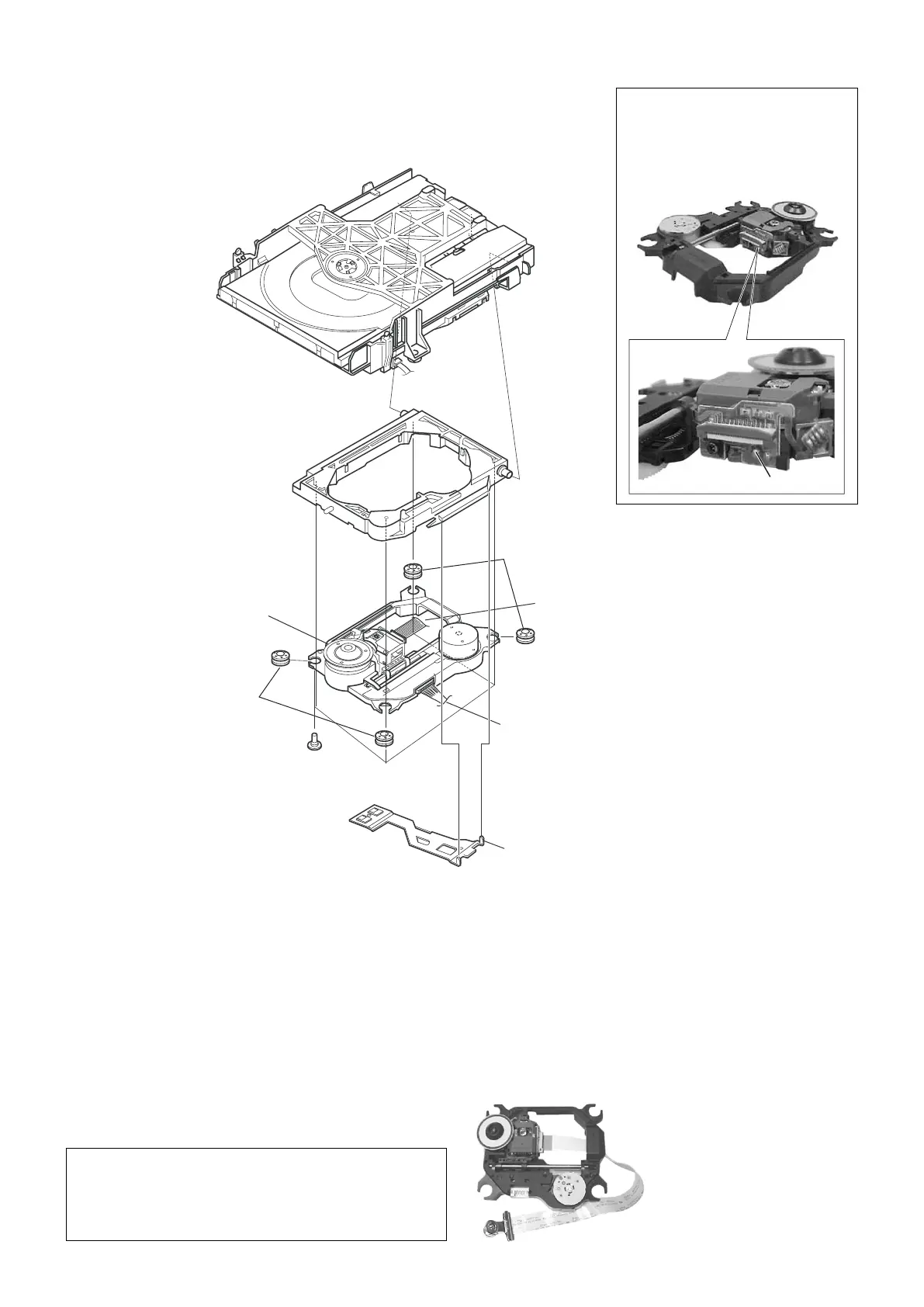

5 FMO-008 Flat Flexible Cable (CN101, 24P)
(Except AEP,UK,RUS)
FMO-012 Flat Flexible Cable (CN101, 24p)(AEP,UK,RUS)
4 MD-118 Harness (CN201, 6P)
1 Four Insulator Screws
6 Two Insulator
6 Two Insulator
3 Optical Device
(KHM-313CAA/C2RP)
2 FFC Holder
Shortland Position
Note:
Solder shortland before remove the
FMO-008 (Except AEP,UK,RUS)/
FMO-012 (AEP,UK,RUS) Flat Flaxible
Cable from 24 pin BU connector.
