2-4
DVP-NS72HP/NS77H/NS77HP/NS78H/NS78HP

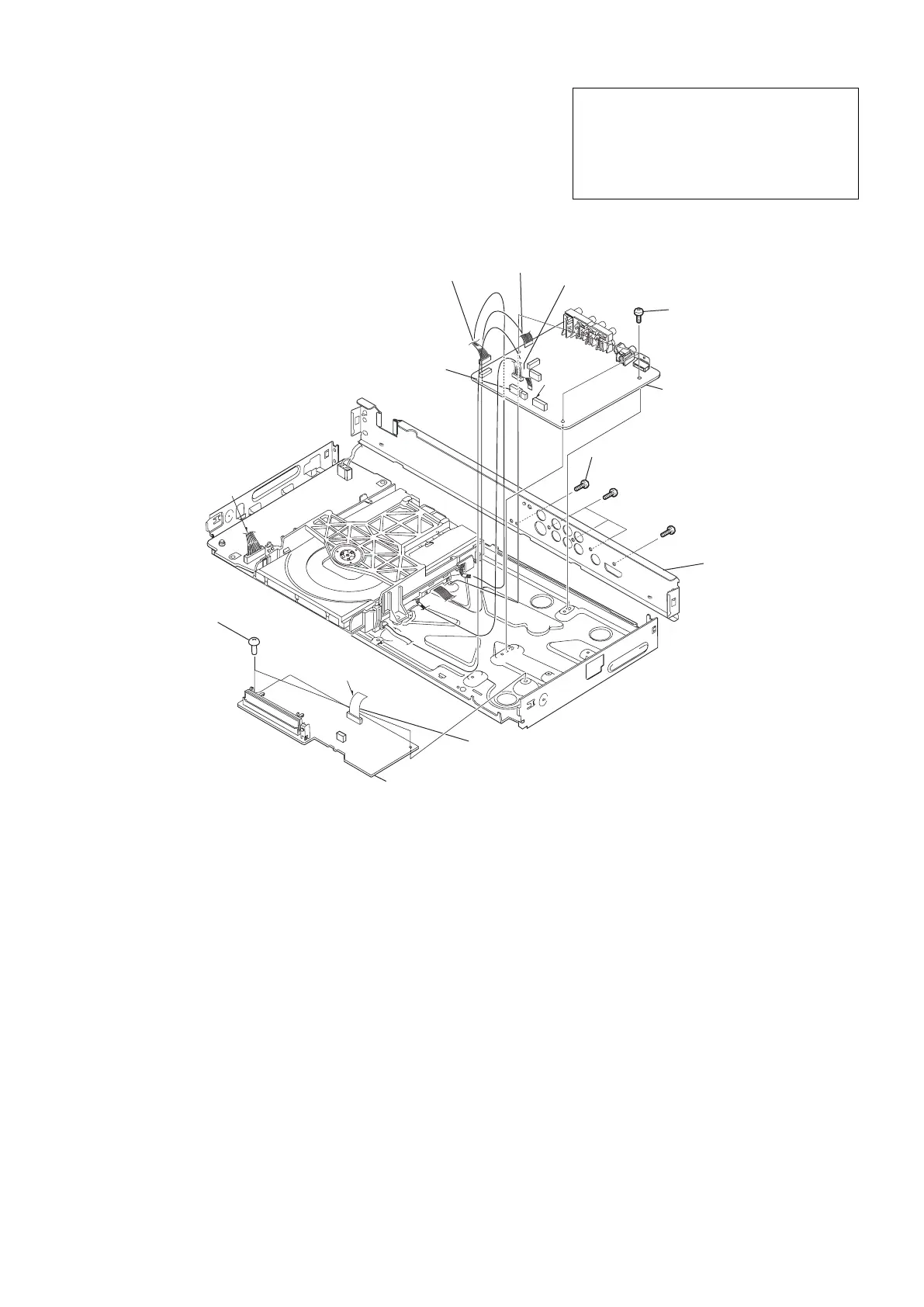

2-5. REAR PANEL, MV BOARD and IF BOARD
2-5-1. REAR PANEL, MV-55 BOARD, IF-154 BOARD
(DVP-NS72HP/NS77H: US/NS77HP: MX/
NS78H: CND, KR, SP, TH/NS78HP: BR, E)
5 FMS-014 Flat Flexible Cable
(CN202, 5P)
7 FMO-008 Flat Flexible Cable
(CN101, 24P)
0 MV-55 Board
6 MD-118 Harness
(CN201, 6P)
8 PM-142 Harness
(CN501, 10P)
9 Three Screws
+BV3 (3-CR)
2 Three Screws
+BV3 (3-CR)
4 Rear Panel
3 One Screw
+P 3 x 4 S-Type
1 One Tapping Screw
d
qd IF-154 Board
qs Two Screws
+BV3 (3-CR)
c
c
qa FIM-018 Flat Flexible Cable
(CN106, 17P)
l
Note:
Caution Point on the IF-154
When handling IF-154 Board avoid contact with
the sharp metal edge on the top side of Vacuum
Fluorescent Display (ND401).
