2-5
DVP-NS72HP/NS77H/NS77HP/NS78H/NS78HP

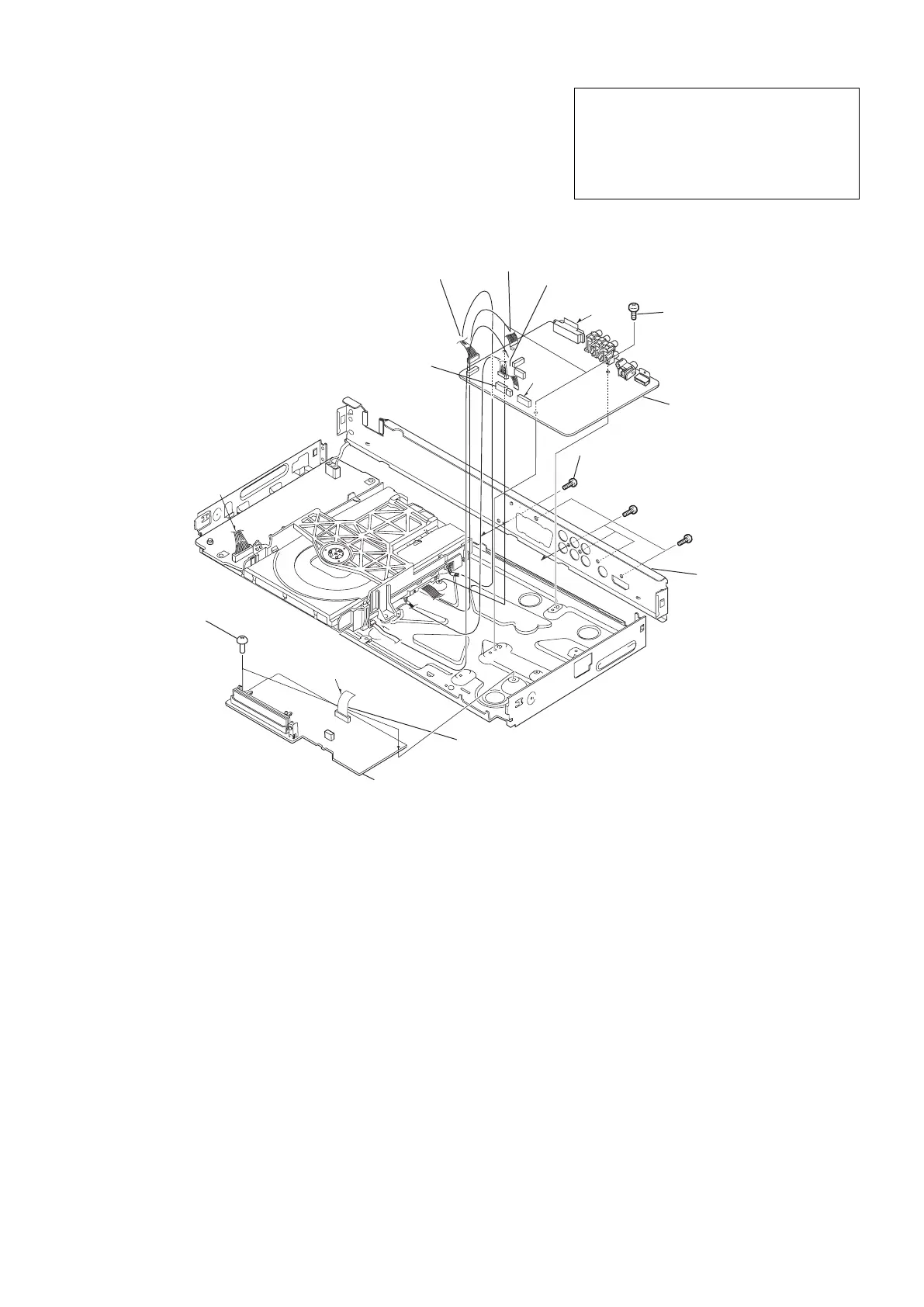

2-5-2. REAR PANEL, MV-56 BOARD, IF-154 BOARD
(DVP-NS78H: AEP, UK, RUS)
7 FMO-012 Flat Flexible Cable
(CN101, 24P)
0 MV-56 Board
8 PM-142 Harness
(CN501, 10P)
9 Three Screws
+BV3 (3-CR)
2 Three Screws
+BV3 (3-CR)
3 Two Screws
+P 3 x 4 S-Type
4 Rear Panel
1 One Tapping Screw
d
qd IF-154 Board
qs Two Screws
+BV3 (3-CR)
c
c
o
o
l
5 FMS-014 Flat Flexible Cable
(CN202, 5P)
6 MD-118 Harness
(CN201, 6P)
qa FIM-018 Flat Flexible Cable
(CN106, 17P)
Note:
Caution Point on the IF-154
When handling IF-154 Board avoid contact with
the sharp metal edge on the top side of Vacuum
Fluorescent Display (ND401).
