DVP-NS72HP/NS77H/NS77HP/NS78H/NS78HP
A
B
C
1
2
7685
43
IC404
A
B
C
1
2
7685
43
4-6

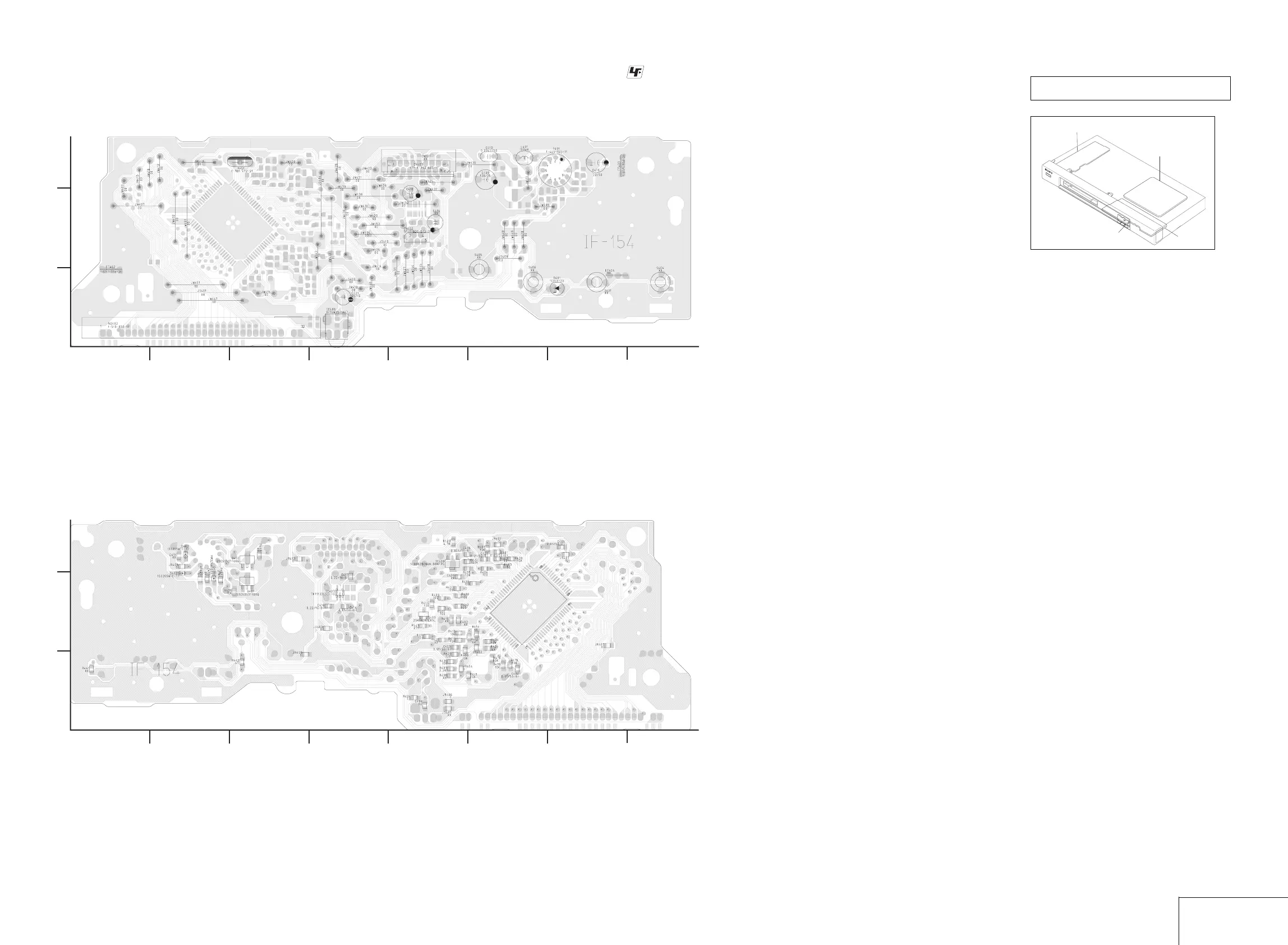

IF-154 (INTERFACE) PRINTED WIRING BOARD
4-5
INTERFACE
IF-154
IF-154 BOARD (SIDE A)
• : Uses unleaded solder.
IF-154 BOARD (SIDE B)
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
For printed wiring board
IF-154 BOARD
SIDE A
IC406 A-4
D401 A-7
SIDE B
IC404 B-6
IC407 B-4
IC408 C-5
Q401 B-3
Q402 C-3
Q403 B-5
D402 B-2
D403 C-2
D406 B-2
IF-154 Board
(INTERFACE)
SW-512 Board
(SWITCH BOARD)
MV-55 Board
(SYSTEM, DRIVE, VIDEO, AUDIO, POWER)
(DVP-NS72HP/NS77H/NS77HP/
NS78H: CND,SP,KR,TH/NS78HP: E,BR)
MV-56 Board
(SYSTEM, DRIVE, VIDEO, AUDIO, POWER)
DVP-NS78H: AEP,UK,RUS)
Power Board
SRV2019UC (DVP-NS72HP/NS77H: US/NS77HP: MX/NS78H: CND)
SRV2020WW (DVP-NS78H: EXCEPT CND/NS78HP)
