DVP-NS72HP/NS77H/NS77HP/NS78H/NS78HP
4-10
SYSTEM, DRIVE, VIDEO, AUDIO, PS THROUGH
MV-55

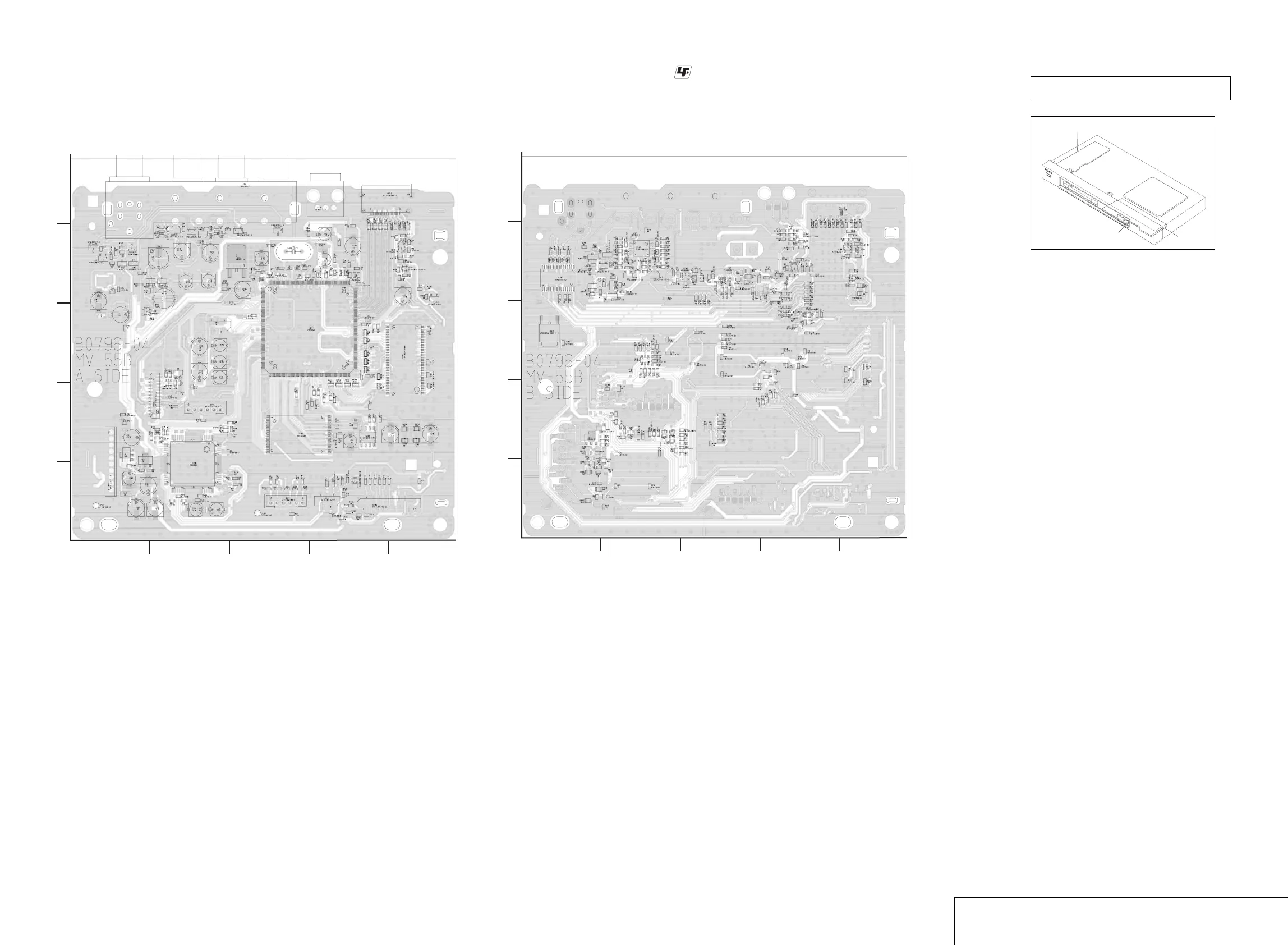

MV-55 (SYSTEM, DRIVE, VIDEO, AUDIO, PS THROUGH) PRINTED WIRING BOARD
(DVP-NS72HP/NS77H: US/NS77HP: MX/NS78H: CND,SP,KR,TH/NS78HP: E,BR)
• : Uses unleaded solder.
MV-55 BOARD (SIDE A) MV-55 BOARD (SIDE B)
MV-55 BOARD
SIDE A
IC101 C-3
IC102 B-3
IC103 B-4
IC104 C-5
IC106 D-5
IC108 A-4
IC110 D-3
IC111 D-5
IC201 A-2
IC402 C-1
IC406 E-4
D310 D-3
D311 D-3
D312 D-2
D313 D-1
D314 D-1
D315 D-1
D401 D-2
D402 D-2
Q101 B-2
Q103 C-2
Q105 D-5
Q304 D-1
Q305 D-1
Q407 D-2
Q408 D-2
SIDE B
IC105 D-4
IC107 D-3
IC109 D-5
IC303 C-1
IC304 D-1
IC401 D-2
D404 D-2
Q102 C-2
Q104 D-5
Q401 D-1
Q402 D-2
Q403 D-2
Q405 D-1
Q411 D-4
Q412 D-2
Q413 D-2
Q416 D-2
Q417 D-2
Q501 B-1
Q502 B-2
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
For printed wiring board
4-9
A
B
C
D
E
1
2
5
43
A
B
C
D
E
1
2
5
43
IF-154 Board
(INTERFACE)
SW-512 Board
(SWITCH BOARD)
MV-55 Board
(SYSTEM, DRIVE, VIDEO, AUDIO, POWER)
(DVP-NS72HP/NS77H/NS77HP/
NS78H: CND,SP,KR,TH/NS78HP: E,BR)
MV-56 Board
(SYSTEM, DRIVE, VIDEO, AUDIO, POWER)
DVP-NS78H: AEP,UK,RUS)
Power Board
SRV2019UC (DVP-NS72HP/NS77H: US/NS77HP: MX/NS78H: CND)
SRV2020WW (DVP-NS78H: EXCEPT CND/NS78HP)
