Sony RMT-D175A - Component Video Output Adjustments (Continued); Component Video B-Y and R-Y Output Checks

7-4
DVP-NS72HP/NS77H/NS77HP/NS78H/NS78HP

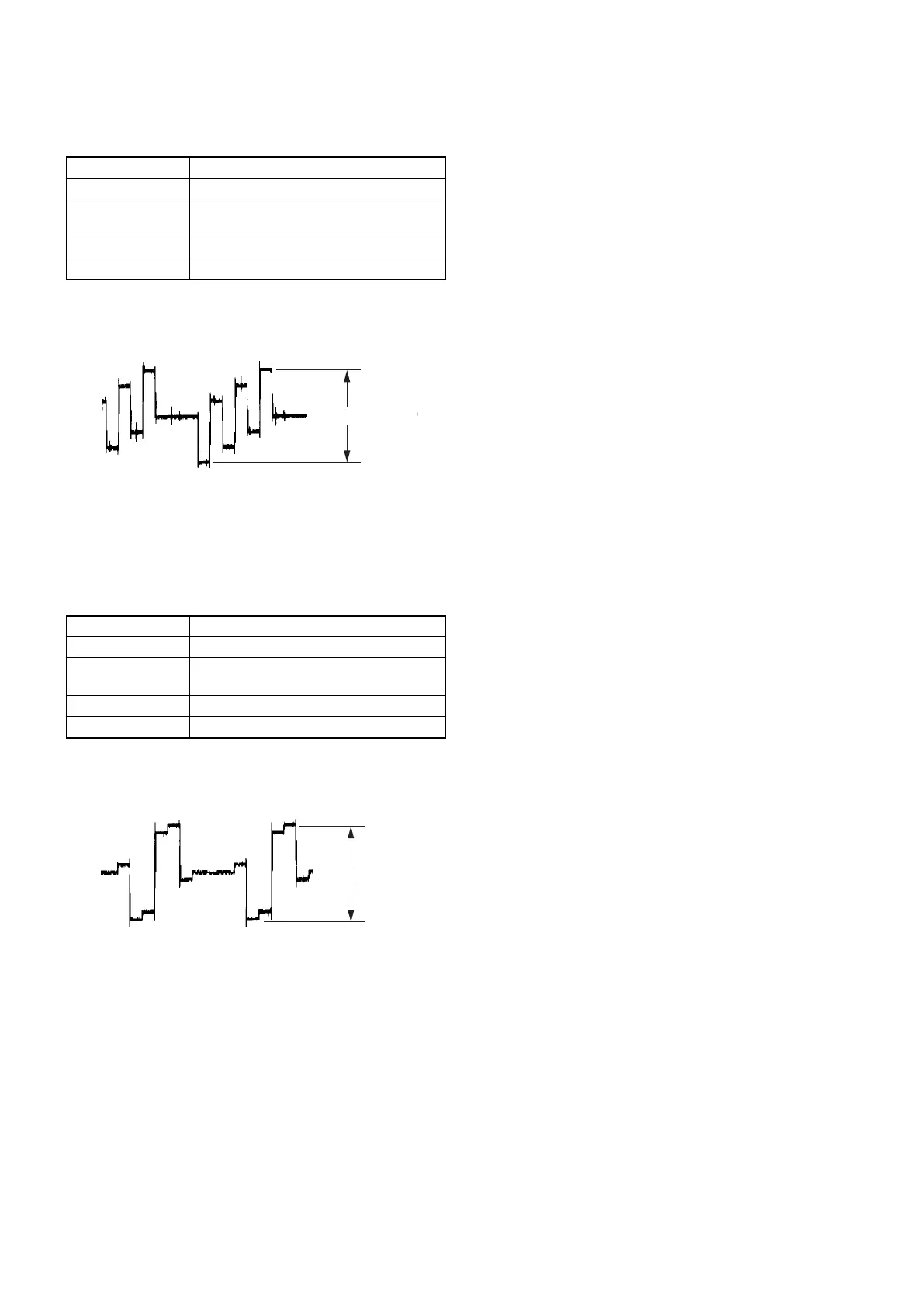

9. Checking Component Video Output B-Y
<Purpose>
This checks component video output B-Y. If it is incorrect, correct
colors will not be displayed when connected to, for instance, projector.
Mode HLX-504 play back
Signal Color bars
Test point COMPONENT VIDEO OUT (PB)
connector (75 Ω terminated)
Instrument Oscilloscope
Specification A = 700 ± 70 mVp-p
Checking method:
(1) In the Video Signal menu “1” Color Bar 100% play back.
(2) Confirm that the B-Y level is A.
Fig. 7-3.
10. Checking Component Video Output R-Y
<Purpose>
This checks component video output R-Y. If it is incorrect, correct
colors will not be displayed when connected to, for instance, projector.
Mode HLX-504 play back
Signal Color bars
Test point COMPONENT VIDEO OUT (PR)
connector (75 Ω terminated)
Instrument Oscilloscope
Specification B = 700 ± 70 mVp-p
Checking method:
(1) In the Video Signal menu “1” Color Bar 100% play back.
(2) Confirm that the R-Y level is B.
Fig. 7-4.
7-4E
A
B
