2-7
1 LEVER FL ARM ASS'Y
"C"
"B"
PIN
HOLE "A"
2-4 VCR DECK
2-4-1 Holder FL Cassette Ass’y Removal
1) Pull the Holder FL Cassette Ass’y 1 to the eject position.
2) Pull the Holder FL Cassette Ass’y 1 as grasping the Holder FL
Cassette Ass’y 1 and Lever FL Cassette-R 2 in the same time
to release hooking from Main Base until the Boss [A] of Holder
FL Cassette Ass’y 1 is taken out from the Rail [B].
3) Lift the Holder FL Cassette Ass’y 1, in this time, you have to
grasp the Lever FL Cassette-R 2 Continuously until the Holder
FL Cassette Ass’y 1 is taken out completely.
Note: Be sure to insert Lever FL Cassette-R 2 in the direction of
“A” to prevent separation and breakage of the Lever FL Cassette-
R 2 at disassembling and reassembling.

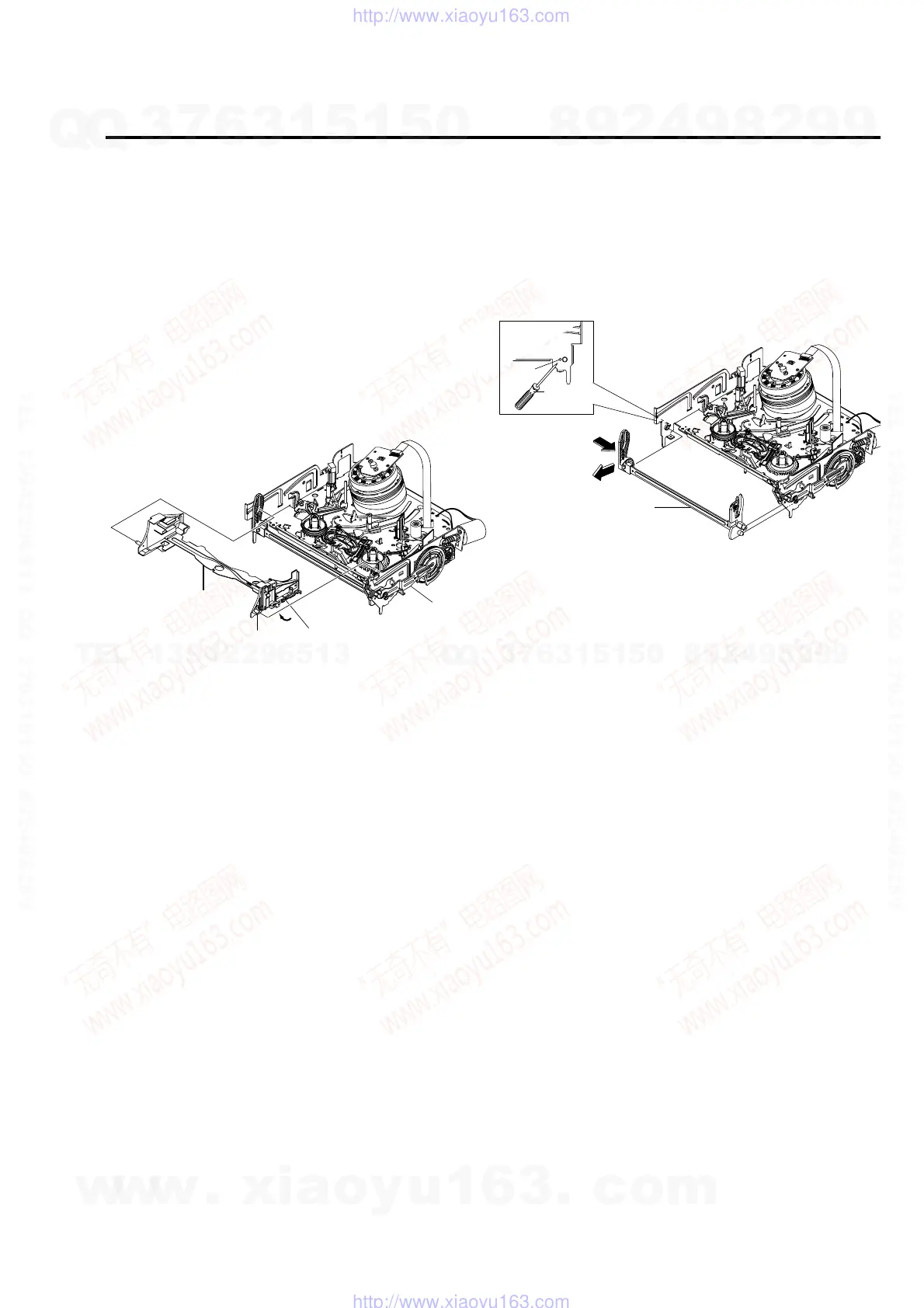

Fig. 2-11 Holder FL Cassette Ass’y Removal
RAIL [B]
BOSS [A]
2 LEVER FL CASSETTEE -R
"A"
1 HOLDER FL
CASSETTEE ASS'Y
2-4-2 Lever FL Arm Ass’y Removal
1) Push the hole “A” in the direction of arrow “B” use the pin.(about
Dia. 2.5)
2) Pull out the Lever FL Arm Ass’y 1 from the Boss of Main
Base.
3) Remove the Lever FL Arm Ass’y 1 in the direction of arrow
“C”.
Fig. 2-12 Lever FL Arm Ass’y Removal
