2-25
"B"
"D"
"A"
"A"
"C"
4 SLIDER HOUSING
3 ASS'Y PCB DECK
1 2 SOLDERING
7 2 SCREWS
6 BELT PULLEY
qa GEAR TRAY
0 GEAR PULLEY
9 1 HOOK
5 1 HOOK
8 ASS'Y MOTOR LOAD
2 2 HOOKS

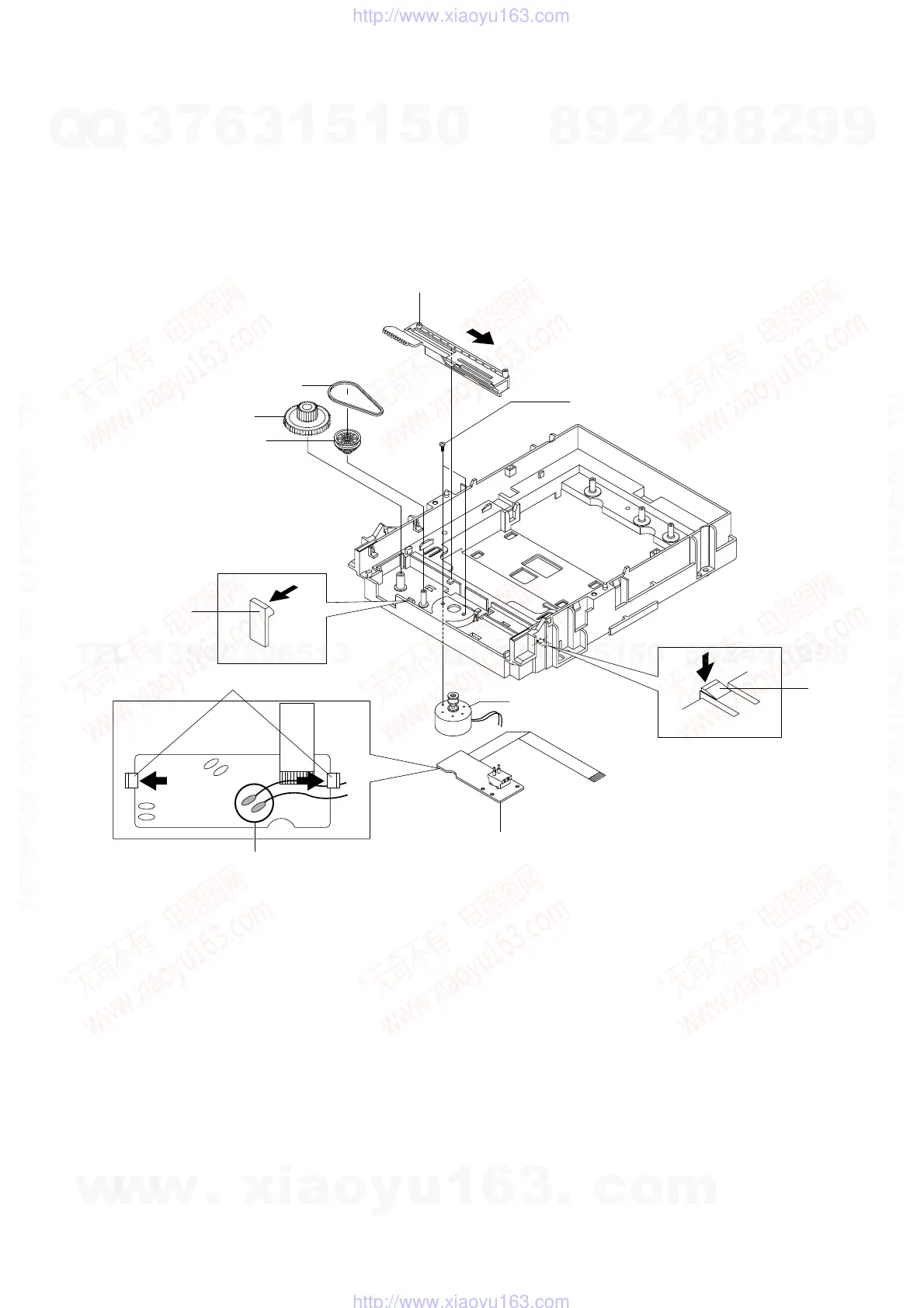

2-6-4 Ass’y Housing Removal
1) Remove the 2 Soldering 1. (TM+, TM-)
2) Push the 2 Hooks 2 in the direction of arrow “A” and remove Ass’y PCB Deck 3.
3) Push the Slider Housing 4 in the direction arrow “B”.
4) Push the 1 Hook 5 in the direction of arrow “C” and lift up the Slider Housing 4.
5) Remove the Belt Pulley 6 and 2 Screws 7, Ass’y Motor Load 8.
6) Push the 1 Hook 9 in the direction of arrow “D” and lift up the Gear Pulley 0, Gear Tray qa.
Fig. 2-47 Ass’y Housing Removal
