2-13
2-4-13 Lever Brake S, T Ass’y Removal
1) Release the Hook [A] and the Hook [B], [C] in the direction of
arrow as shown in Fig 2-25.
2) Lift the Lever S, T Brake Ass’y 1, 2 with spring brake 3.
Assembly:
1) Assembly the Lever S Brake Ass’y 1 on the Main Base.
2) Assembly the Lever T Brake Ass’y 2 with spring brake 3.
Note: Take extreme care not to be folded and
transformed Spring Brake at removing or reinstalling.

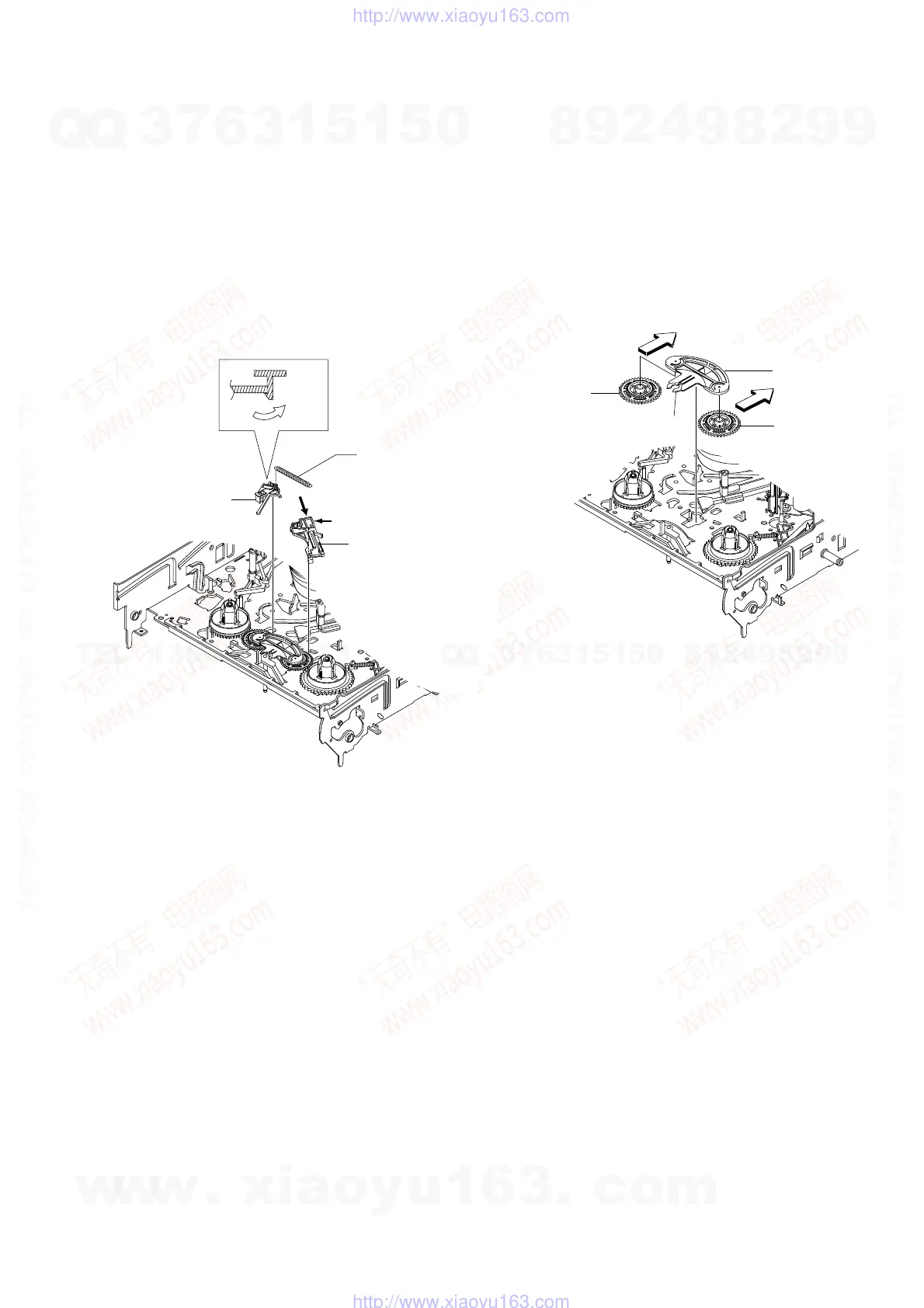

Fig. 2-25 Lever Brake S, T Ass’y Removal
2-4-14 Gear Idle Ass’y Removal
1) Push the Lever Idle 1 in the direction of arrow “A”, “B”.
2) Lift the Lever Idle 1.
Assembly:
1) Apply oil in two Bosses of Lever Idle 1.
2) Assemble the Gear Idle 2 with the Lever Idle 1.
Note: When replacing the Gear Idle 2, be sure to add oil in the
boss of Lever Idle 1.
Fig. 2-26 Gear Idle Ass’y Removal
HOOK(A)
2 LEVER T BRAKE ASS`Y
1 LEVER S BRAKE ASS'Y
HOOK(B)
HOOK(C)
3 SPRING BRAKE
2 GEAR IDLE
"B"
1 LEVER IDLE
2 GEAR IDLE
"A"
HOOK "C"
