2-8
2-4-4 Slider FL Drive, Gear FL Cam Removal
1) Pull the Slider FL Drive 1 to the front direction.
2) Remove the Slider FL Drive 1 in the direction of arrow. (Refer
to Fig. 2-14)
3) Remove the Gear FL cam 2.
Note: When reinstalling be sure to reassemble Slider FL drive 1
after you insert the Boss of Lever FL ARM-R in Groove of Slider
FL drive 1.
Assembly: Align the Gear FL Cam 1 with the Gear worm wheel
Post as shown drawing.
(Refer to Timing point)

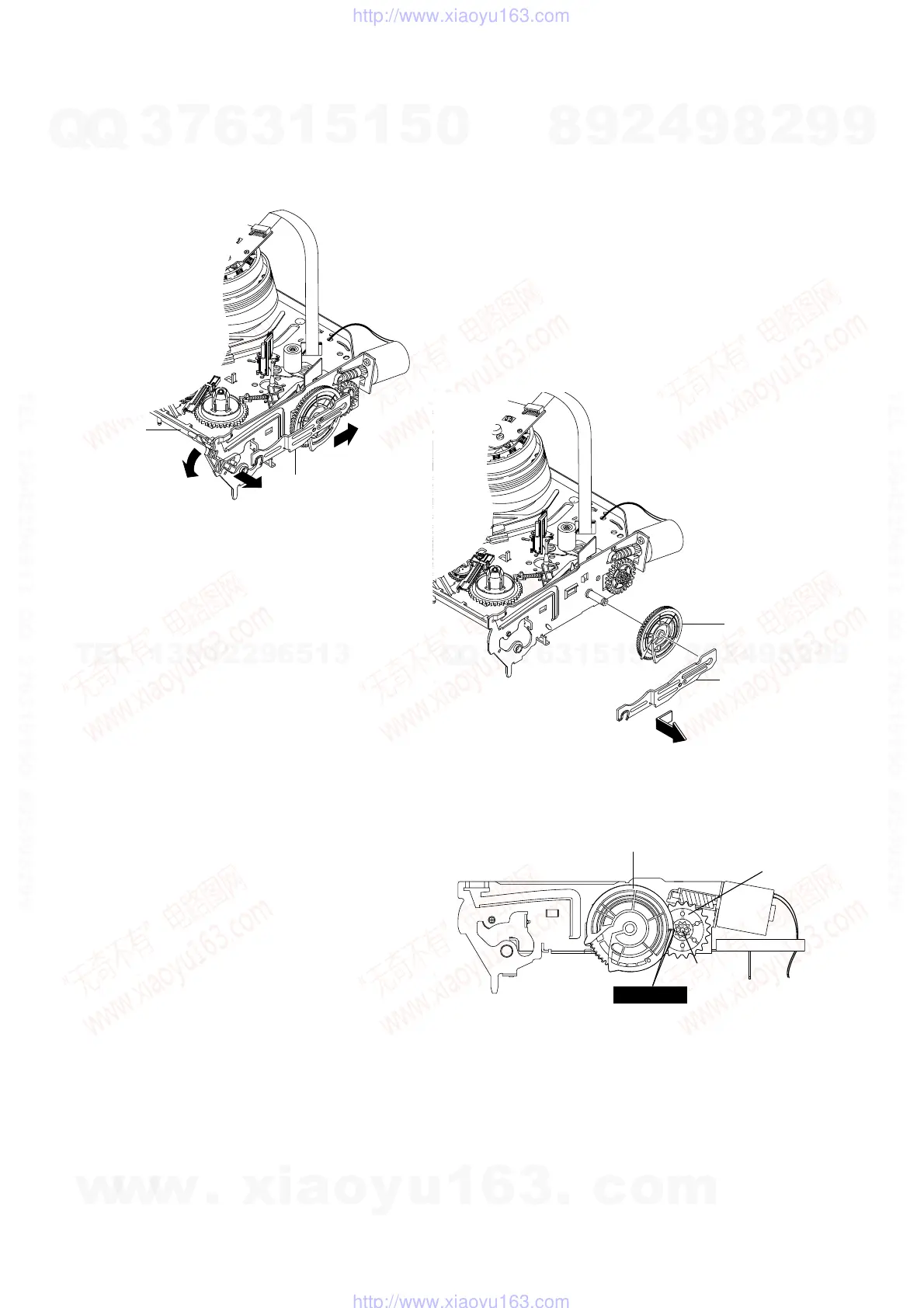

Fig. 2-14 Slider FL Drive Removal
Fig. 2-15 Gear FL Cam, Gear Worm
1 GEAR FL CAM
GEAR WORM WHEEL
POST
TIMING POINT
2-4-3 Lever FL Door Removal
1) Release the Hook 2 and Remove the Lever FL Door 1 in the
direction of arrow “A”.
Fig. 2-13 Lever FL Door Removal
"B"
"C"
"A"
2 LEVER FL DOOR
1 SLIDER FL DRIVE
1 SLIDER FL DRIVE
2 GEAR FL CAM
