Sony RMT-VB310E - Disassembly Instructions; Unit Disassembly Flow and Panel Removal

2-1
Top Panel
Side Panel (L)
Side Panel (R)
Two Screw +BTP 3X8 TYPE2 N-S
(tightening torque = 6.5 to 7.5kgf.cm)
Four Screw +BVTP 3X8 TYPE2 IT-3
(tightening torque = 6.5 to 7.5kgf.cm)
1.
2.
3.
4.
6.
5. To open Top Panel push
lever at Front Panel Left &
Right side and slide Top
Panel to front.
1
SECTION 2
DISASSEMBLY

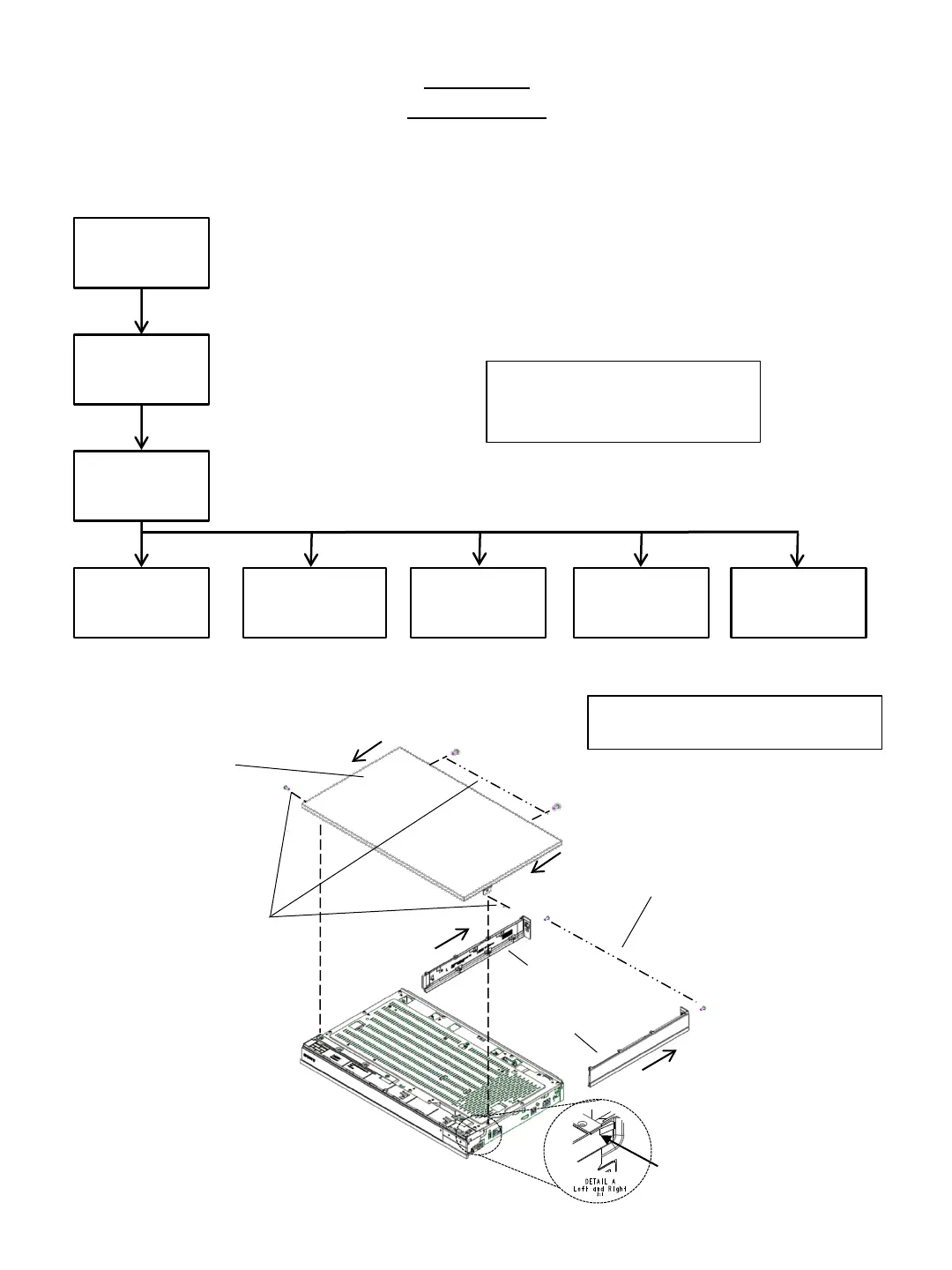

This set can be disassembled in the order shown below.
2-1. DISASSEMBLY FLOW
2-2. SIDE PANEL AND TOP PANEL
SET
2-2 SIDE PANEL &
PANEL TOP
2-3 CHASSIS TOP
2-4 PANEL FRONT,
FR-1602 AND
*FC-1603 BOARD
2-5 BLUETOOTH,
WIFI AND SWITCH
REGULATOR BOARD
2-6 MB-1601
BOARD
2-7 BD DRIVE
2-8 *AN-1605
BOARD
Caution:
To keep Hi-Res Audio and EMC
Requirement use only the correct screw at
its intended location
Note :
* - For UBP-X1000ES model only
